Seat Heater Components: Notes

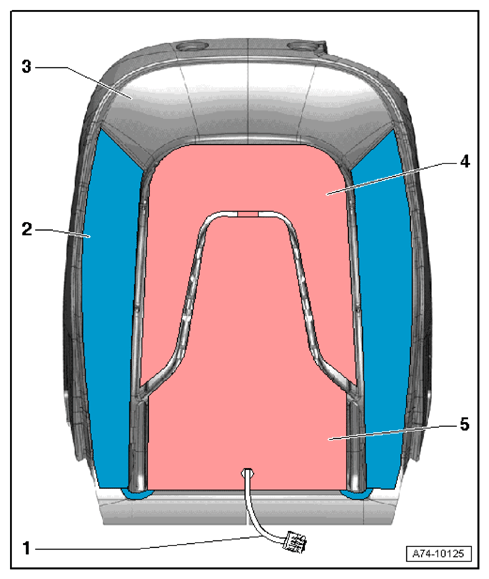

Backrest Heating Element

1. Wiring, connected to the backrest heating element
2. Backrest Bolster Heating Element
   • Driver Seat Backrest Side Bolster Heater -Z32-
   • Front Passenger Seat Backrest Bolster Heater -Z34-
3. Cushion
4. Upper Backrest Heating Element
   • Driver Backrest Heating Element -Z7-
   • Front Passenger Backrest Heating Element -Z9-
5. Lower Backrest Heating Element
   • Driver Backrest Heating Element -Z7-
   • Front Passenger Backrest Heating Element -Z9-

   Courtesy of AUDI OF AMERICA, LLC
