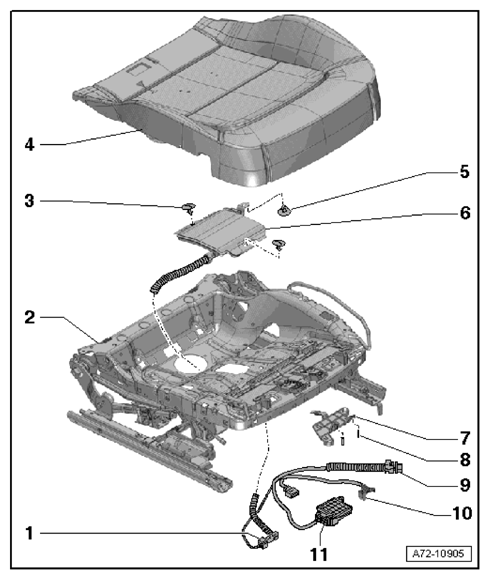

Seat Occupied Recognition Assembly Overview: Notes

NOTE: Seat Occupied Recognition Seat Belt Force Sensor -G453- Not Shown In The Overview Is Integrated
  1. Seat Occupied Recognition Pressure Sensor -G452-
    • Is A Component With The Seat Occupied Recognition Mat
  2. Seat Pan
  3. Retaining Clip
  4. Upholstery
  5. Retaining Clip
  6. MAT
    • For seat occupied recognition
    • Is a component with the Seat Occupied Recognition Pressure Sensor -G452-
  7. Mount
    • For Seat Occupied Recognition Control Module
  8. Spreader Pin
  9. Electrical Wiring Harness
    • Do not separate from the seat occupied recognition pressure sensor and seat occupied recognition control module
  10. Front Passenger Seat Position Sensor -G554-  → SEAT POSITION SENSOR
    • Is a component of the electrical wiring harness -9-
  11. Seat Occupied Recognition Control Module -J706-
    G12766966Courtesy of AUDI OF AMERICA, LLC
