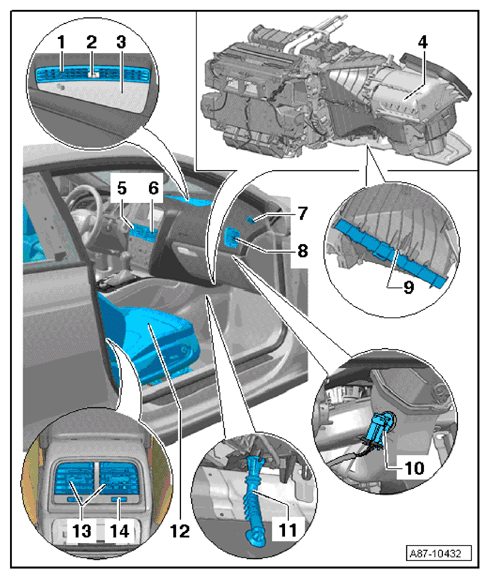

Ventilation System
- Defroster Vent/Front Window
- Sunlight Photo Sensor -G107-
- Vents For Indirect Ventilation/Loud Speaker Cover, Instrument Panel, Center
- A/C Unit With Evaporator And Add-On Components
- Different versions depending on the vehicle version and equipment level
- Left Center Instrument Panel Vent
- Right Center Instrument Panel Vent
- Defroster Vent/Right Side Window
- Instrument Panel Vent, Right
- Dust And Pollen Filter (With Or Without Activated Charcoal Filter Element)
- On vehicles with the Comfort A/C system with an activated charcoal filter element. There is an Air Quality Sensor -G238- installed on these vehicles
- Right Front Upper Body Outlet Temperature Sensor -G386-
- Installed only in the Comfort A/C system
- Right Condensation Water Drain (Front Passenger Side)
- Right Seat (Passenger Seat) With Seat Heating And Seat Ventilation Components
- Seat heating components: Right Front Seat Temperature Sensor -G345- and Right Front Heated Seat -Z46-
- Vent In Center Console, Rear
- Installed only on the Comfort A/C system (on the Basis A/C system, the opening in the center console is sealed)
- Rear Temperature Selection Potentiometer -G538-
- Installed only on the Comfort A/C system (on the Basis A/C system, the opening in the center console is sealed)
