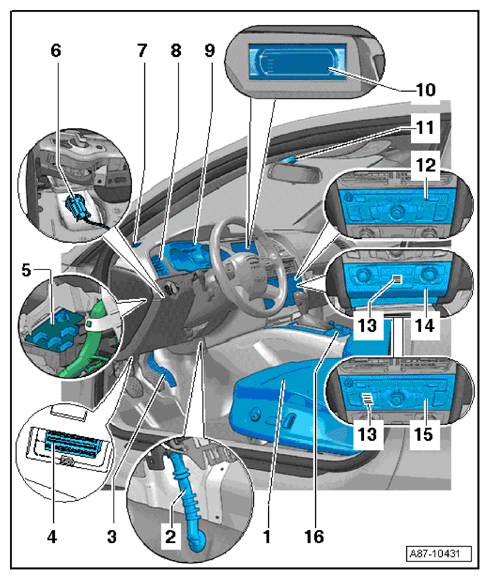

Passenger Compartment A/C Components

1. Left Seat (Driver's Seat) With Seat Heating And Seat Ventilation Components
   • Seat heating components: Left Front Seat Temperature Sensor -G344- and Left Front Heated Seat -Z45-
   • Seat heater and seat ventilation are not installed in all vehicles (optional equipment)
2. Left Condensation Water Drain (Driver Side)
3. Accelerator Mechanism
4. Diagnostic Connection
5. Vehicle Electrical System Control Module -J519-
6. Left Front Upper Body Outlet Temperature Sensor -G385-
   • Installed only in the Comfort A/C system
7. Defroster Vent/Left Side Window
8. Instrument Panel Vent, Left
9. Instrument Cluster Control Module -J285-
   • With Outside Air Temperature Display -G106- in the Driver Information System
10. Front Information Display Control Head -J685-
11. Humidity Sensor -G355-
    • Installed only in the Comfort A/C system
12. 12 - Radio -R-
13. 13 - Interior Temperature Sensor Fan -V42- and Instrument Panel Interior Temperature Sensor -G56-
    • Installed in the A/C Control Head Climatronic Control Module
14. 14 - Climatronic Control Module -J255- of Basic version
15. 15 - Climatronic Control Module -J255- of Comfort A/C System
16. 16 - Multimedia Control Head -E380-

• Depending on the vehicle equipment level, instead of a Multimedia Control Head -E380- a Radio -R- may be installed

Courtesy of AUDI OF AMERICA, LLC
