Button In Rear Lift Gate For Power Closing Does Not Function (GROUP 57, NO. 11-45)

Publication date: 2011-02-16
Reference number: GROUP 57, NO. 11-45
Supersedes refnos: 2021372, GROUP 57, NO. 09-17, GROUP 57, NO. 09-21, GROUP 57, NO. 10-01, GROUP 57, NO. 10-14

BUTTON IN REAR LIFT GATE FOR POWER CLOSING DOES NOT FUNCTION

TECHNICAL SERVICE BULLETIN

Reference Number(s): GROUP 57, NO. 11-45 (2021372/5), Date of Issue: February 16, 2011

AUDI:	A4 Avant 2009 - 2010; Q5 2009, 2010
GROUP:	57 - Doors - Front

Superceded Bulletin(s): GROUP 57, NO. 10-14, Date of Issue: March 12, 2010

SERVICE INFORMATION

57 11 45 2021372/5 February 16, 2011. Supersedes Technical Service Bulletin Group 57 number 10-14 dated March 12, 2010.

APPLICABLE MODELS AND YEARS

Model(s)	Year	VIN Range	Vehicle-Specific Equipment
A4 Avant	2009 - 2010	000001 - 999999	Power Rear Lift Gate
Q5	2009	000001 - 999999
Q5	2010	000001 - 040257

CONDITION

Vehicles with a power closing rear lift gate cannot close the rear lift gate automatically with a press of the button located on the rear lift gate.
When this condition occurs, the following two DTCs can be set with time stamps that are five seconds apart. (For example, if DTC 03250 has a time stamp of 12:36:10, then DTC 02364 should have a time stamp of 12:36:15.)
- DTC 03250 (Luggage Compartment Closing Assistance Motor -V382- Open/Short circuit to Ground) in the comfort system central control module (J393).
- DTC 02364 (Closing assistance - Incorrect Signal) in the rear lid electronics (J605).

TECHNICAL BACKGROUND

This sporadic condition is created when the comfort system central control module incorrectly detects insufficient current draw from the power closing assist motor. As a result, the power closing assist motor is switched off while the rear lift gate automatically opens. The rear lid electronic control module then disables the automatic closing of the rear lift gate. This also disables the closing button in the lift gate. From this point on, the rear lift gate can be closed only manually, using a large amount of force. Once the lift gate is manually closed, the automatic opening of the lift gate is restored. This problem can be intermittent.

PRODUCTION SOLUTION

Optimized software for the J393 comfort system central control module was put into series production.

SERVICE

A SVM software update for the comfort system central control module (J393) is available.

Follow all instructions in the attached TSB 2011732 Software Version Management (SVM), operating instructions .

Update the comfort system central control module (J393) using the SVM action code as listed in the table below if necessary.

SOFTWARE INFORMATION

Model	Old Software Part Number	Old Software Version	New Software Part Number	New Software Version	SVM Action Code
2009 A4 Avant	8K0907064*	*	8K0907064*	251	B846A006
2010 A4 Avant	8K0907064*	*	8K0907064*	327
2009 Q5	8K0907064*	*	8K0907064*	251
2010 Q5	8K0907064*	*	8K0907064*	327

The remotes must be relearned after the software update.
1. With the ignition on and the engine off, place remote into the ignition for at least 5 seconds.
2. Repeat for each additional remote, if available.
3. If the additional remotes are not available at the time of service, please instruct the customer to repeat this procedure with the additional remotes. Otherwise, the keyless unlock and start/stop (if equipped) may not work with the unlearned remotes.
Once the learn procedure has been completed, turn off the ignition, disconnect the VAS Tester from the vehicle, and lock the car for a minimum of 2 minutes to allow the vehicle systems to go to sleep.
Test the remote's unlocking capability from at least 20-30 ft away from the vehicle to ensure the key has been relearned to the car.
If the car is equipped with the Kessy system, lock the car and check all the door handle sensors to ensure they are working.

Tip: The software update provided by this SVM code resolves additional issues listed in the following bulletins:

2019482Remote function of vehicle keys inoperative
2020795All 12-volt accessory outlets are inoperative
2021341Trunk light inoperative

WARRANTY

WARRANTY INFORMATION

Claim Type:	Use applicable claim type. If vehicle is outside any warranty, this Technical Service Bulletin is informational only.
Service Number:	5789
Damage Code:	0039
Labor Operations:	Charge battery	2706 8950	10 TU
Labor Operations:	Radio Remote Control Sender Relearn + Test	5785 0299	15 TU
Diagnostic Time:	GFF	0150 0000	Time stated on diagnostic protocol. Not to exceed 60 TU.
	Road test prior to service procedure	No allowance	0 TU
	Road test after service procedure	No allowance	0 TU
	Technical diagnosis at dealer's discretion (Refer to Section 2.2.1.2 and Audi Warranty Online for DADP allowance details)
Claim Comment:	As per TSB #2021372/5

All warranty claims submitted for payment must be in accordance with the Audi Warranty Policies and Procedures Manual. Claims are subject to review or audit by Audi Warranty.

ADDITIONAL INFORMATION

The following Technical Service Bulletin will be necessary to complete this procedure:

TSB 2011732 Software Version Management (SVM), operating instructions.

All part and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Dept. and service manuals for the latest information.

ATTACHMENT

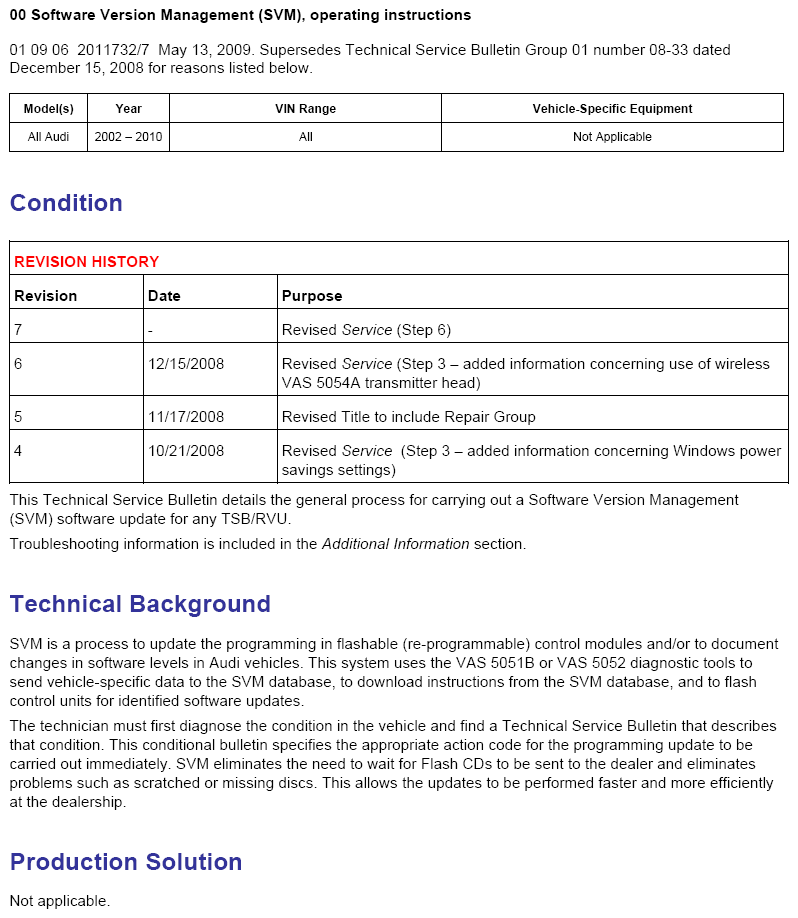

Fig 1: TSB 2011732 Software Version Management (SVM), Operating Instructions - Page 1

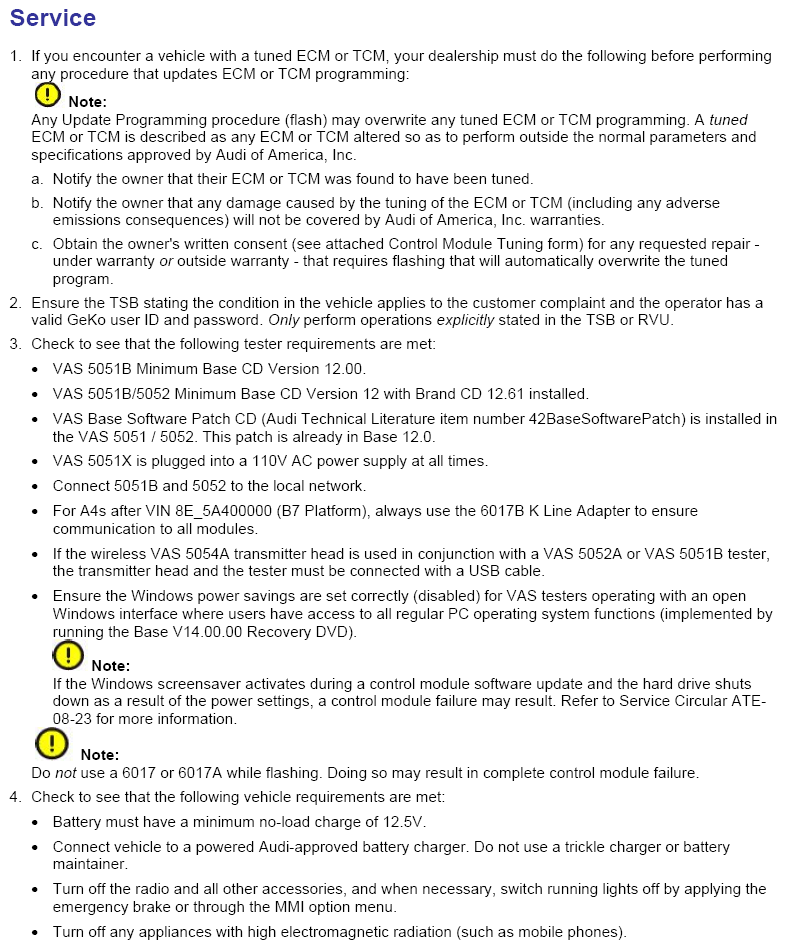

Fig 2: TSB 2011732 Software Version Management (SVM), Operating Instructions - Page 2

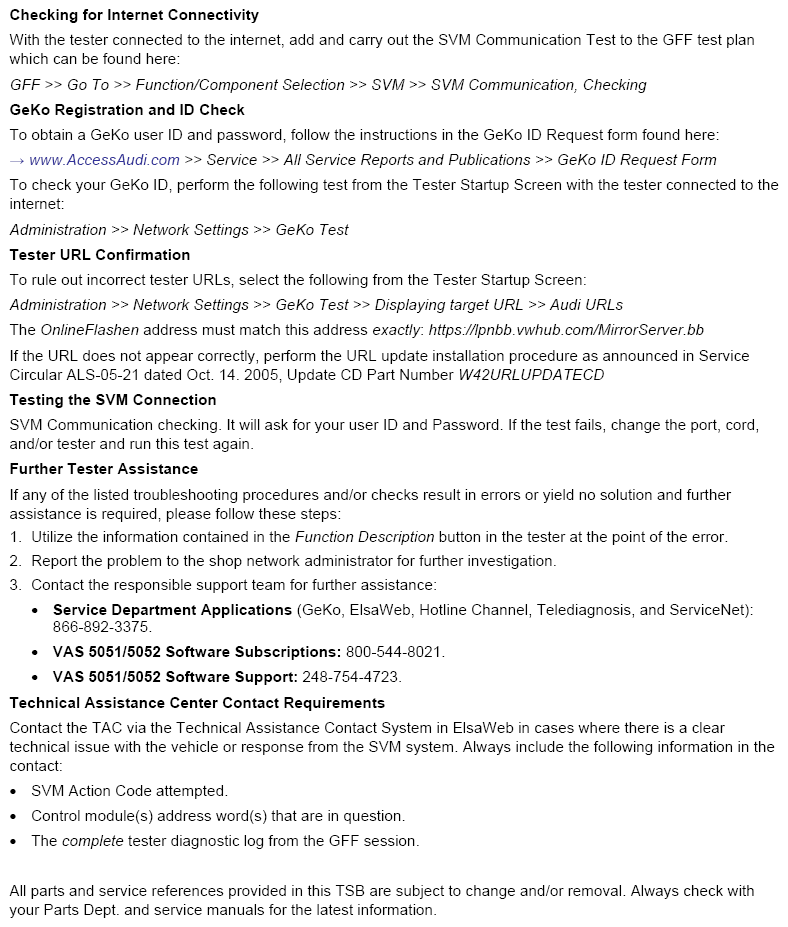

Fig 3: TSB 2011732 Software Version Management (SVM), Operating Instructions - Page 3

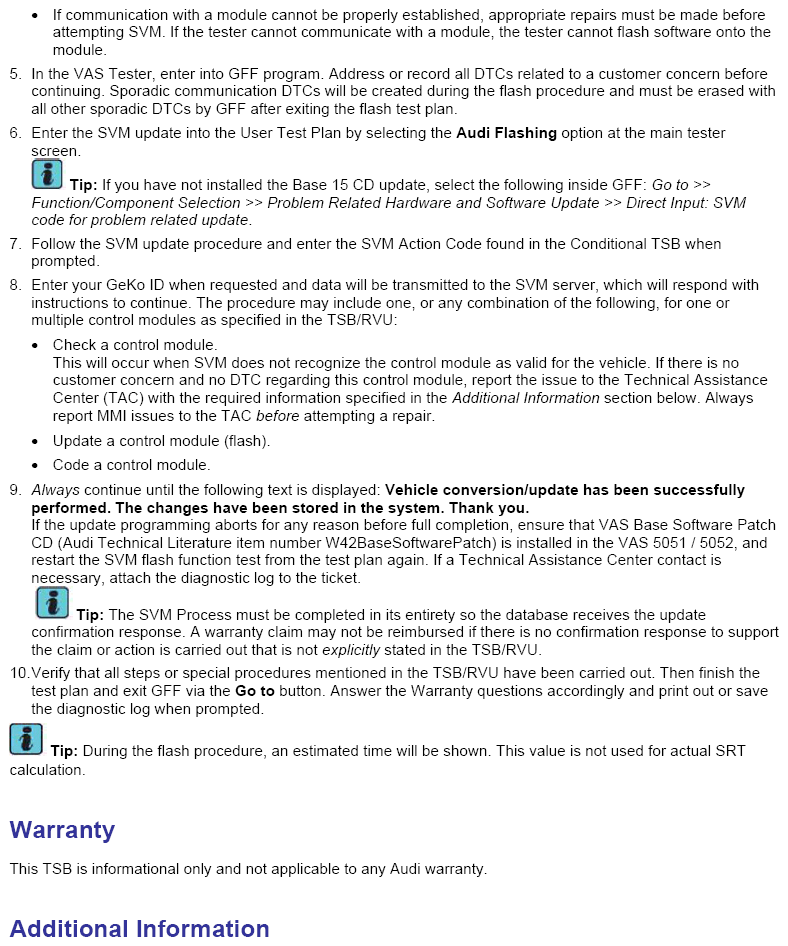

Fig 4: TSB 2011732 Software Version Management (SVM), Operating Instructions - Page 4

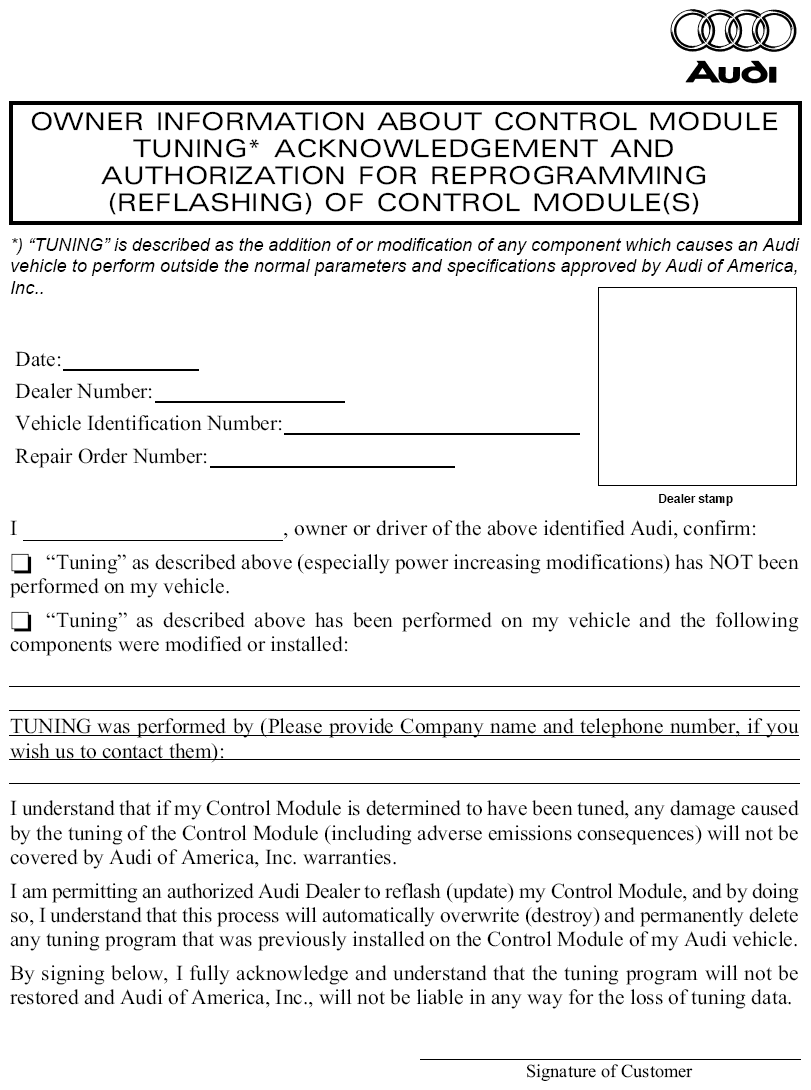

Fig 5: Control Module Tuning Form
