Special Tools

WARNING: This page is about a different variant/trim than selected.

Fig 1: Identifying Special Tools - Engine, Removing

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

Pry Lever 80-200
Used Oil Collecting and Extracting Device VAG1782
Step Ladder VAS5085
Engine Bung Set VAS6122
Scissor Lift Table VAS6131A with Scissor Lift Table - Audi Set VAS6131/10 and Scissor Lift Table - A8 Set VAS6131/11
Shop Crane - Drip Tray VAS6208

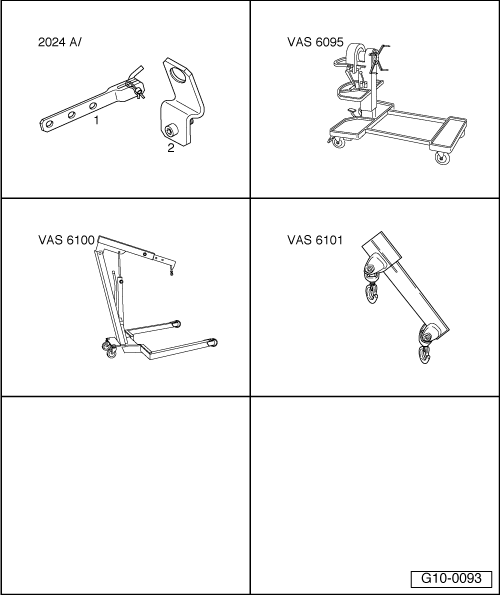

Fig 2: Identifying Special Tools -- Engine, Securing To Assembly Stand

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

Engine Sling 2024A
Engine And Transmission Holder VAS6095 with Engine/Transmission Holder - Universal Mounting VAS6095/1 and Engine/Transmission Holder - V6 FSI Bracket VAS6095/1-5
Shop Crane VAS6100
Lift Arm Extension VAS6101

Special tools and workshop equipment required

Hose Clamps - Up To 25mm 3094

Fig 3: Hose Clamps - Up To 25mm 3094
Courtesy of AUDI OF AMERICA, LLC
Hose Clip Pliers VAS6362

Fig 4: Hose Clip Pliers VAS6362
Courtesy of AUDI OF AMERICA, LLC
Tensioning Strap T10038

Fig 5: Tensioning Strap T10038
Courtesy of AUDI OF AMERICA, LLC
Bracket - Multiple Use 30-211A

Fig 6: Bracket - Multiple Use 30-211A
Courtesy of AUDI OF AMERICA, LLC
Crankshaft Socket T40058

Fig 7: Crankshaft Socket T40058
Courtesy of AUDI OF AMERICA, LLC
Depth Gauge VAS6082

Fig 8: Depth Gauge VAS6082
Courtesy of AUDI OF AMERICA, LLC
Engine Support Bridge 10-222A

Fig 9: Engine Support Bridge 10-222A
Courtesy of AUDI OF AMERICA, LLC
Engine Support - Basic Set T40091

Fig 10: Engine Support - Basic Set T40091
Courtesy of AUDI OF AMERICA, LLC
Engine Support - Supplement Kit T40093A

Fig 11: Engine Support - Supplement Kit T40093A
Courtesy of AUDI OF AMERICA, LLC
Tools not illustrated:
Support Elements VAS 6131/10-8
Scissor Lift Table - Gearbox Support VAS6131/14
Engine Support Supplement T40093/1 and T40093/2
Engine Support Bridge - Engine Support 410-222A/4
Engine Support - Bracket w/Spindle and hook 10-222A/10
