Right Engine Mount: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the rear engine cover -2- upward.

Fig 1: Engine Covers -1- And -2-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the air filter housing. Refer to Removing .

-- Remove the seal -1- and remove the plenum chamber cover -2-.

Fig 2: Removing Rubber Seal And Plenum Chamber Cover

Courtesy of AUDI OF AMERICA, LLC

-- Mount the Engine Support Bridge - Engine Support 410-222A/4 with the Engine Support - Basic Set T40091/3Engine Support - Basic Set T40093/1 and T40093/2 to the strut towers.

Fig 3: Securing Adapter 10 - 222 A /4 Using Binder T40091/3 As Well As Supports T40093/1 And T40093/2 At Suspension Strut Domes

Courtesy of AUDI OF AMERICA, LLC

Support for the left and right side of vehicle is marked.

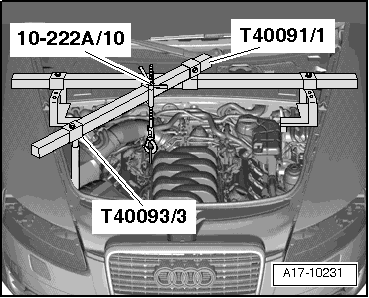

-- Mount the additional parts from the Engine Support Bridge 10-222A, Engine Support - Basic Set T40091 and Engine Support - Supplement Kit T40093A as illustrated. Position the Engine Support Brackets T40093/3 on the notches on the longitudinal members.

Fig 4: Assembling Other Components Of Engine Support Bridge 10 - 222 A

Courtesy of AUDI OF AMERICA, LLC

-- Engage the Engine Support - Bracket w/Spindle and hook 10-222A/10 into the left engine lifting eyelet.

-- Tension the engine with the spindle.

-- Remove the noise insulation, to do this loosen the mounting parts -1, 2, arrow-.

Fig 5: View Of Front Noise Insulation And Mounting Fasteners

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1- and -2- for the left and right stabilizer mounts and lower the stabilizer bar slightly.

Fig 6: Removing Bolts For Left And Right Stabilizer Bar Mount

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -3-.

Fig 7: Identifying Nuts, Bolts, And Right Side Engine Mount Carrier

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1- and -2- and remove the right engine mount bracket.

-- Disconnect the electrical connector -1- on the Right Electronhydraulic Engine Mount Solenoid Valve -N145-.

Fig 8: Disconnecting Electrical Harness Connector At Right Engine Mount

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and remove the engine supports with the engine brackets.

-- Remove the nut -arrow- and remove the engine bracket from the engine support.

Fig 9: Removing Nut And Engine Mount From Engine Support

Courtesy of AUDI OF AMERICA, LLC
