Electro-Mechanical Parking Brake Control Module Connector End View (J540)

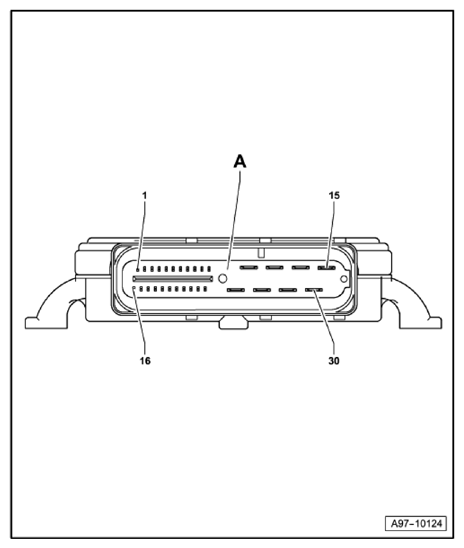

Fig 1: Electro-Mechanical Parking Brake Control Module Connector End View (J540)
G10359775Courtesy of AUDI OF AMERICA, LLC
A 30-Pin Connector, black
