Special Tools

Fig 1: Identifying Special Tools - Engine, Removing

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Pry Lever 80-200
• Used Oil Collecting and Extracting Device VAG 1782
• Step Ladder VAS 5085
• Engine Bung Set VAS 6122
• Scissor Lift Table VAS 6131 A with Support Set VAS 6131/10 as well as Supplementary Set VAS 6131/11, VAS 6131/13 and qty. 3 VAS 6131/10-2
• Drip Tray for Workshop Crane VAS 6208

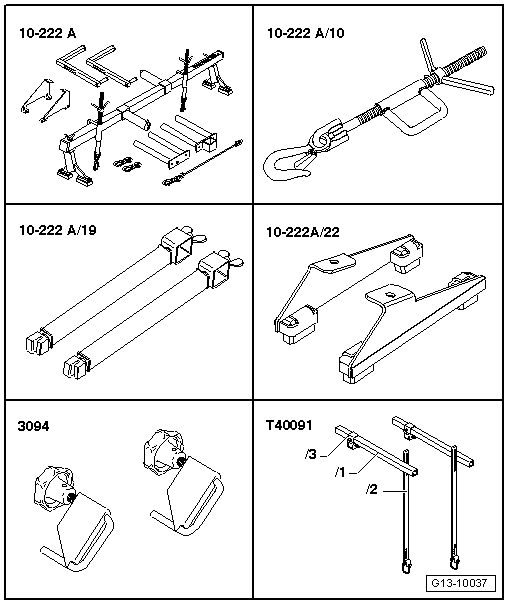

Fig 2: Identifying Special Tools -- Engine Mount, Replacing

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Engine Support Bridge 10 - 222 A
• Bracket with Spindle and Hook 10 - 222 A /10, qty. 2
• Adapter 10 - 222 A /19
• Adapter 10 - 222 A /22
• Hose Clamps Up to 25 mm Dia.3094
• Engine Support Basic Set T40091

Fig 3: Identifying Special Tools - Engine, Securing To Assembly Stand

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Lifting Tackle 3033
• Engine and Transmission Holder VAS 6095 with V8 FSI Engine Holder 6095/1-6A
• Shop Crane VAS 6100
• Lift Arm Extension for Workshop Crane VAS 6101

Special tools and workshop equipment required

• Hose Clamp Pliers VAS 6362
  Fig 4: Hose Clamp Pliers VAS 6362

  Courtesy of AUDI OF AMERICA, LLC
• Counterhold Tool T10172 with T10172/8
  Fig 5: Counterhold Tool T10172

  Courtesy of AUDI OF AMERICA, LLC
• Ball Joint Puller T10187
  Fig 6: Ball Joint Puller T10187

  Courtesy of AUDI OF AMERICA, LLC
• Bracket 30-211 A
  Fig 7: Bracket 30-211 A

  Courtesy of AUDI OF AMERICA, LLC
• Adapter T40058
  Fig 8: Crankshaft Socket T40058

  Courtesy of AUDI OF AMERICA, LLC
• Engine Support Supplement Set T40093
  Fig 9: Engine Support Supplement Set T40093

  Courtesy of AUDI OF AMERICA, LLC
