Ignition Coils: Removing

-- Disconnect electrical connectors at ignition coils by placing T10118 on release button -arrow- and carefully removing connector.

Fig 1: Disconnect Electrical Harness Connectors From Ignition Coils

Courtesy of AUDI OF AMERICA, LLC

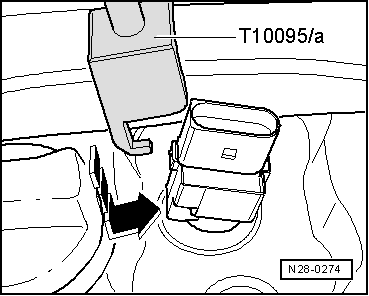

-- Place T10095 A on ignition coils -arrow-, as shown in illustration, and pull out ignition coils one after another.

Fig 2: Attaching Puller For Ignition Coil T10095 A On Ignition Coils And Pulling Out Ignition Coils In Succession

Courtesy of AUDI OF AMERICA, LLC
