Steering column, removing and installing: Installing: Notes

WARNING: This page is about a different car, the 2004 Audi S4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order.

Pay particular attention to the following on installation:

New replacement steering columns feature a transportation safeguard.

This transport safeguard must be removed after installing the steering column in the vehicle.

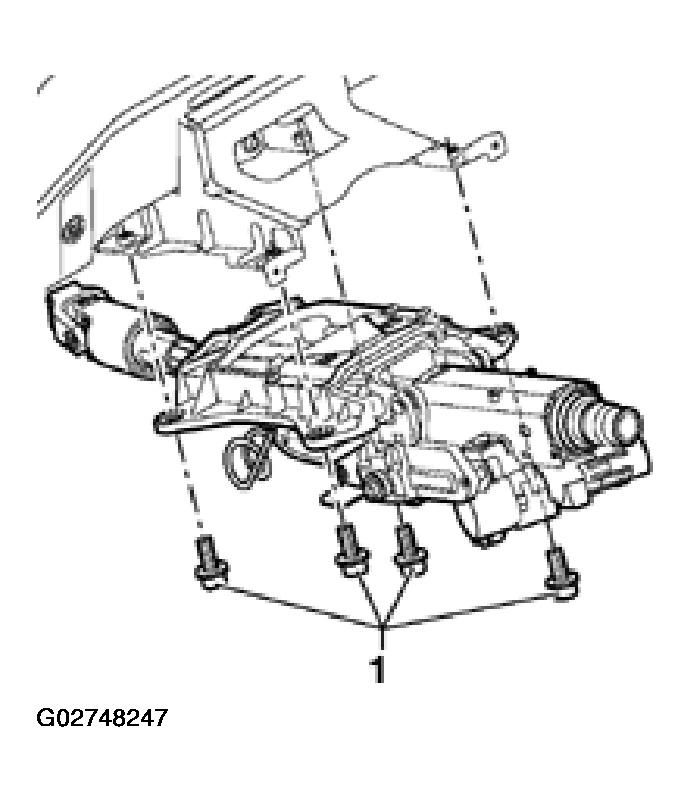

Install steering column and bolts -1- but do not tighten.

Fig 1: Installing Steering Column

Courtesy of AUDI OF AMERICA, INC.

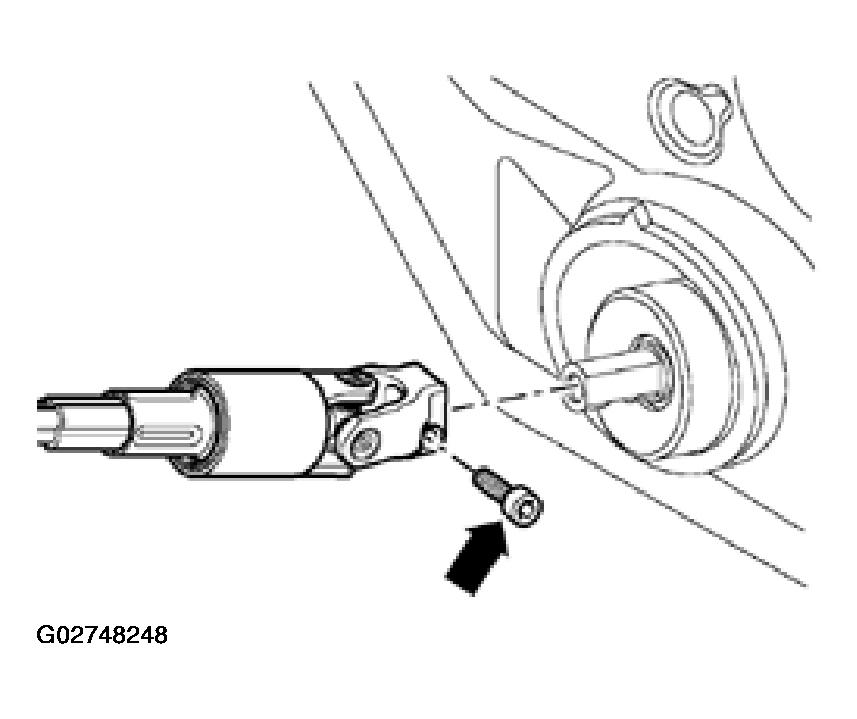

Install steering column joint on the power steering gear and screw in bolt (arrow).

Fig 2: Installing Steering Column Joint On Power Steering Gear

Courtesy of AUDI OF AMERICA, INC.

Ensure stress-free alignment of steering column with respect to steering gear pinion.
Tighten steering column/retaining plate bolts, see STEERING COLUMN , Item 5.
Tighten bolt for joint at power steering. See POWER STEERING GEAR, ASSEMBLY OVERVIEW , Item 3.
Remove transport safeguard and assembly aid.

For vehicles with automatic transmission engage locking cable:

Switch ignition key to position -B- "Ignition ON" to engage locking cable.
Place selector lever in park position.

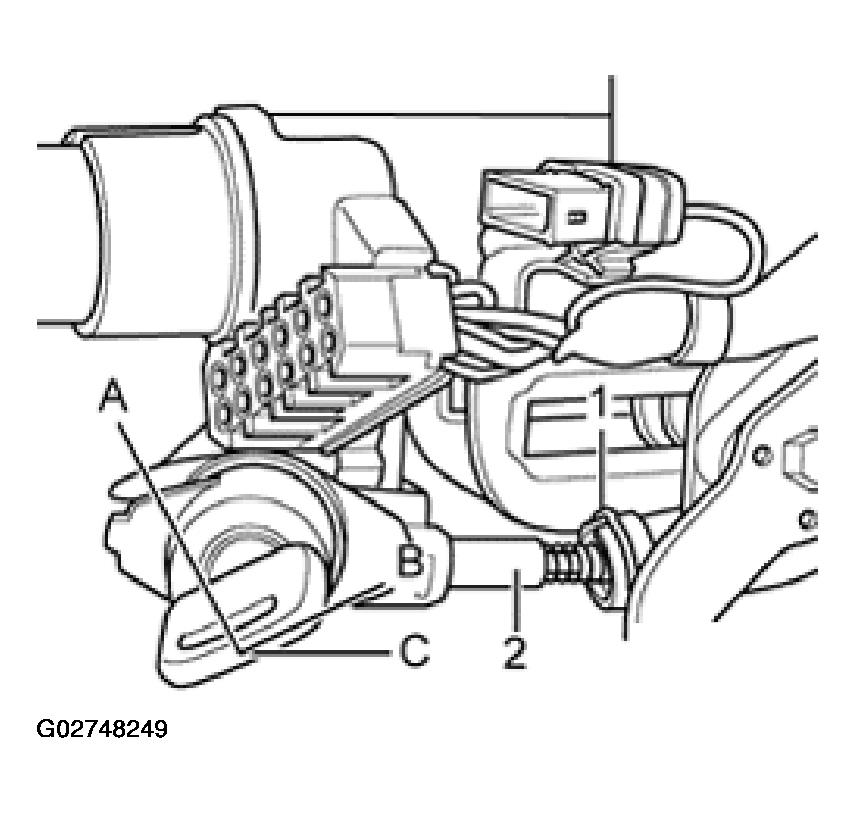

Insert locking cable -2- in ignition lock housing. Make sure locking bracket -1- engages.

Fig 3: Inserting Locking Cable In Ignition Lock Housing

Courtesy of AUDI OF AMERICA, INC.
