Navigation system IV, general overview
WARNING: This page is about a different car, the 2004 Audi S4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

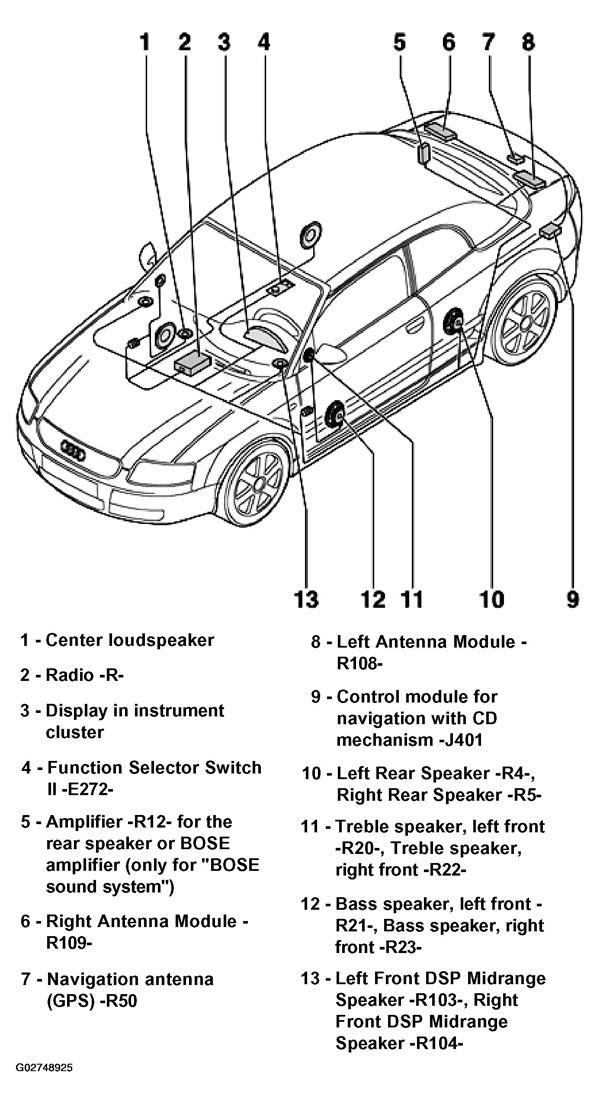

The following list refers to Fig 1
.
- - Center loudspeaker
- In instrument panel
- Removing and installing. See CENTER TREBLE SPEAKER, REMOVING AND INSTALLING .
- - Radio -R-
- In center console
- Removing and installing. See "CONCERT II" RADIO, REMOVING AND INSTALLING .
- - Display in instrument cluster
- Removing and installing instrument cluster:
- - Function Selector Switch II -E272-
- In center console
- Removing and installing. See FUNCTION SELECTOR SWITCH II -E272-, REMOVING AND INSTALLING .
- - Amplifier -R12- for the rear speaker or BOSE amplifier (only for "BOSE sound system")
- In luggage compartment, right rear behind side trim
- Amplifier for the rear speakers or BOSE amplifier removing and installing. See AMPLIFIER FOR THE REAR SPEAKERS OR BOSE AMPLIFIER REMOVING AND INSTALLING .
- - Right Antenna Module -R109-
- Behind the rear lid trim
- Removing and installing. See ANTENNAS IN REAR LID OVERVIEW .
- - Navigation antenna (GPS) -R50-
- Behind the rear lid trim
- Removing and installing. See ANTENNAS IN REAR LID OVERVIEW .
- - Left Antenna Module -R108-
- Behind the rear lid trim
- Removing and installing. See ANTENNAS IN REAR LID OVERVIEW .
- - Control module for navigation with CD mechanism -J401-
- In left base mount in luggage compartment
- Removing and installing. See CONTROL MODULE FOR NAVIGATION WITH CD- MECHANISM -J401-, REMOVING AND INSTALLING .
- - Left Rear Speaker -R4-, Right Rear Speaker -R5-
- In rear side trim (bottom)
- Speaker (active): Midrange/bass with treble bridge
- BOSE-speakers: Midrange/bass
- Removing and installing. See RADIO SYSTEMS WITH SATELLITE DIGITAL AUDIO RADIO SERVICE (SDARS), GENERAL OVERVIEW .
- - Treble speaker, left front -R20-, Treble speaker, right front -R22-
- In front door (top)
- Removing and installing. See RADIO SYSTEMS WITH SATELLITE DIGITAL AUDIO RADIO SERVICE (SDARS), GENERAL OVERVIEW .
- - Bass speaker, left front -R21-, Bass speaker, right front -R23-
- In front door trim (bottom)
- Removing and installing. See RADIO SYSTEMS WITH SATELLITE DIGITAL AUDIO RADIO SERVICE (SDARS), GENERAL OVERVIEW .
- - Left Front DSP Midrange Speaker -R103-, Right Front DSP Midrange Speaker -R104-
- In instrument panel
- Removing and installing. See SPEAKER IN INSTRUMENT PANEL, REMOVING AND INS .
