Navigation system IV, design
WARNING: This page is about a different car, the 2004 Audi S4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

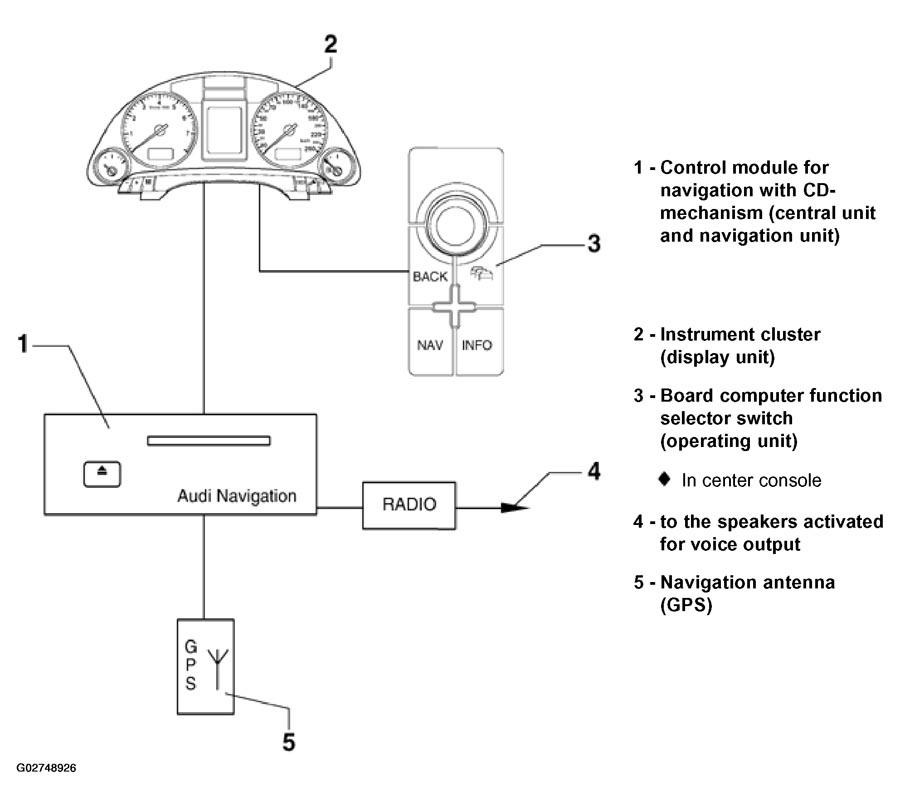

The following list refers to Fig 1
.
- - Control module for navigation with CD- mechanism (central unit and navigation unit)
- In left base mount in luggage compartment
- - Instrument cluster (display unit)
- - Board computer function selector switch (operating unit)
- In center console
- - to the speakers activated for voice output
- - Navigation antenna (GPS)
- Behind the rear lid trim
