Function Selector Switch II -E272-, removing and installing: Removing

WARNING: This page is about a different car, the 2004 Audi S4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Pull up parking brake lever.

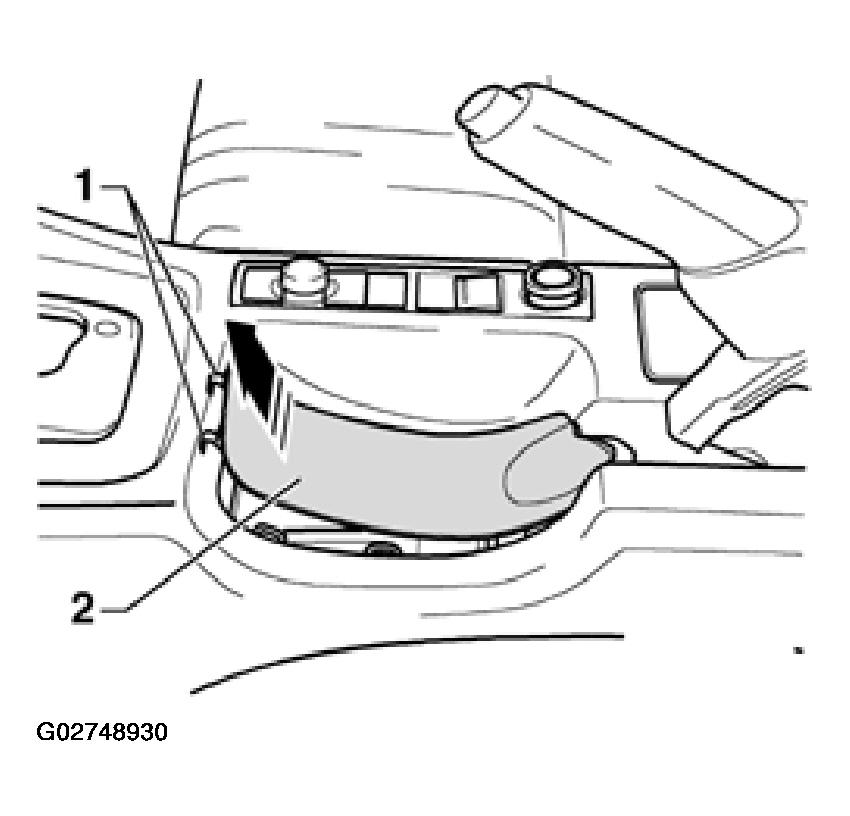

Unclip cover -2- below the parking brake lever at mounting springs -1-.

Fig 1: Unclipping Cover At Mounting Springs

Courtesy of AUDI OF AMERICA, INC.

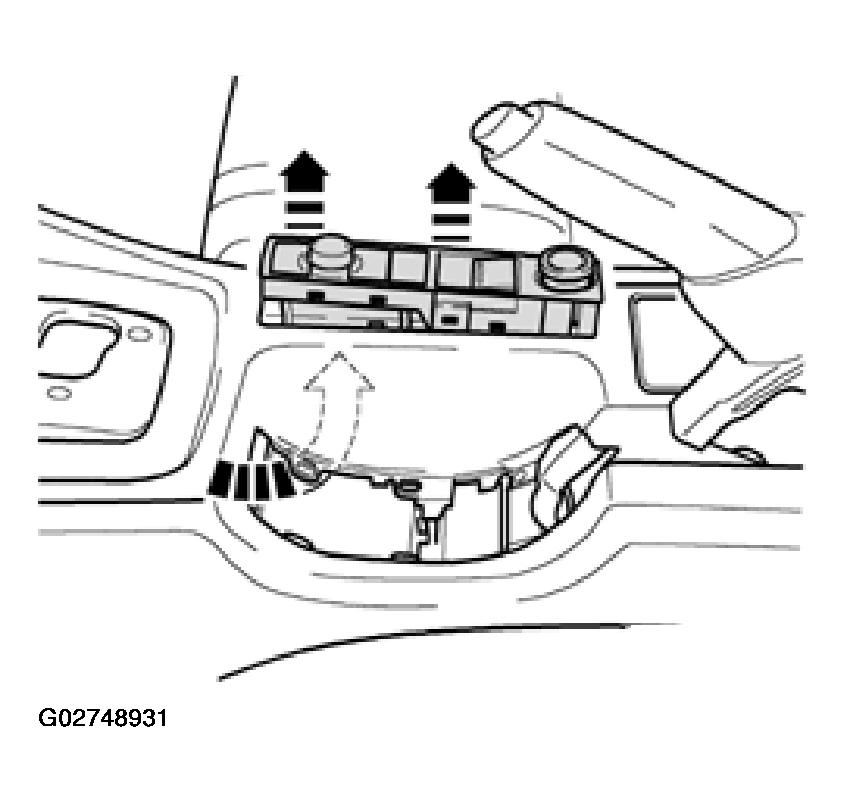

Grasp opening below parking brake lever and press Convertible Top Operation Switch/navigation out of center console from bottom -arrows-.

Fig 2: Pressing Convertible Top Operation Switch/Navigation Out Of Center Console From Bottom

Courtesy of AUDI OF AMERICA, INC.

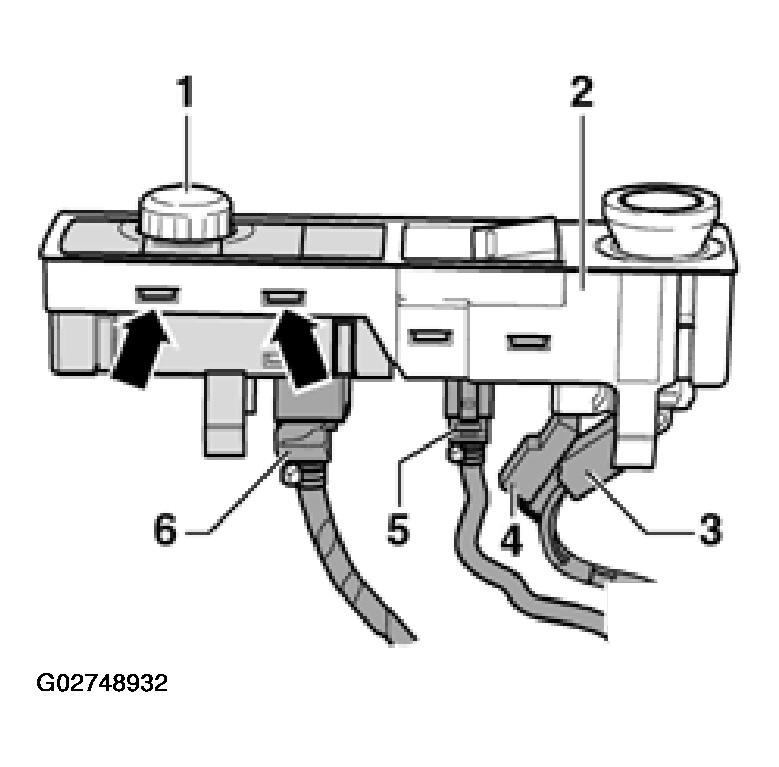

Disconnect electrical harness connectors -3 to 6-.
Carefully release catches -arrows- using a small screwdriver.
Remove Function Selector Switch II position 1 from mounting frame -2-.

Fig 3: Removing Function Selector Switch II From Mounting Frame

Courtesy of AUDI OF AMERICA, INC.
