Shift Mechanism, Adjusting

Special tools and workshop equipment required

Connecting Pin T10027A

Adjustment requirements

Operating and transfer elements of shift mechanism must be in proper condition.

Shift mechanism must move freely.

The transmission, clutch and clutch mechanism must be in proper condition.

Transmission in neutral position.

Adjusting

-- Open the ashtray.

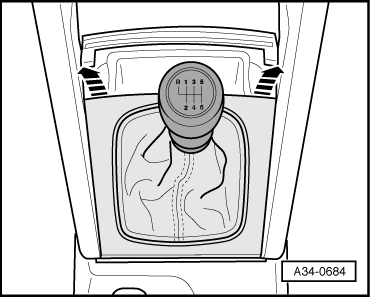

-- Carefully pry the cover off from the center console -arrow-.

Fig 1: Prying Cover Off From Center Console

Courtesy of AUDI OF AMERICA, LLC

-- Lift the cover upward over shift knob.

-- Move the shift lever in neutral position toward the left in the gate of 1st/2nd gear.

-- Move the noise insulation to the side.

Fig 2: Connecting Pin T10027A

Courtesy of AUDI OF AMERICA, LLC

-- Lock the shift lever with the Connecting Pin T10027A.

NOTE:

To improve clarity, the noise insulation is removed.

Vehicles with an air filter housing in front of the battery

-- Remove the entire air filter housing. Refer to [For engine(s) CCTA, CBFA] Removal and Installation or to[For engine(s) CBRA] Removal and Installation .

Fig 3: Air Flow Housing, Electrical Connector And Guide Hose

Courtesy of AUDI OF AMERICA, LLC

Continued for all vehicles

-- Release the cable retainer -A- for the selector and shift cables -B- as follows:

Fig 4: Identifying Sequence To Release Retainers -A- For Shift And Selector Cables -B-

Courtesy of AUDI OF AMERICA, LLC

-- Push sleeve forward up to the stop -arrow 1-.

-- Turn sleeve to the right up to the stop -arrow 2- so that it engages.

NOTE:

The cable -B- must be able to move in the cable retainer.

Secure shift rod as follows:

-- Press transmission shift lever -1- down in direction of -arrow A-.

Fig 5: Transmission Shift Lever -1-, Lock Elbow -2-

Courtesy of AUDI OF AMERICA, LLC

-- Engage lock elbow -2- by turning slightly in direction of -arrow B- and pressing in direction of -arrow C- at the same time.

This locks the selector shaft; it can no longer be moved.

-- Make sure that the selector and shift cable -B- are inserted free of tension in the retainer -A-.

Fig 6: Identifying Sequence To Install Connecting Pin T10027 A Through Hole -A- And Into Hole -B-

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the sleeve -arrow 1-.

-- Allow the sleeve to slide to the stop -arrow 2-.

The cable is now adjusted.

-- Turn lock elbow -A- back into starting position in direction of -arrow 2- and remove from transmission in direction of -arrow 1-.

Fig 7: Identifying Lock Bracket Positions

Courtesy of AUDI OF AMERICA, LLC

-- Pull the Connecting Pin T10027 A out of the selector mechanism.

Shift lever adjustment, checking

The shift lever must rest in the 3rd/4th gear selector lever gate when the transmission is in neutral.

-- Actuate clutch.

-- Select all gears several times. Pay particular attention to the operation of the reverse gear lock

The shift lever must move from the reverse gear selector lever gate into the 3rd/4th gear selector lever gate on its own.

If hooking occurs during repeated selection of a gear, the selector mechanism must be adjusted again.

-- Install the selector lever boot.

-- Install the air filter housing. Refer to[For engine(s) BPY] Removal and Installation or to [For engine(s) CCTA, CBFA] Removal and Installation or to [For engine(s) CBRA] Removal and Installation .
