Left Rear Door Control Module Connector End View (J388, T32e, T20n)
Left Rear Door Control Module Connector End View (J388, T32e, T20n)

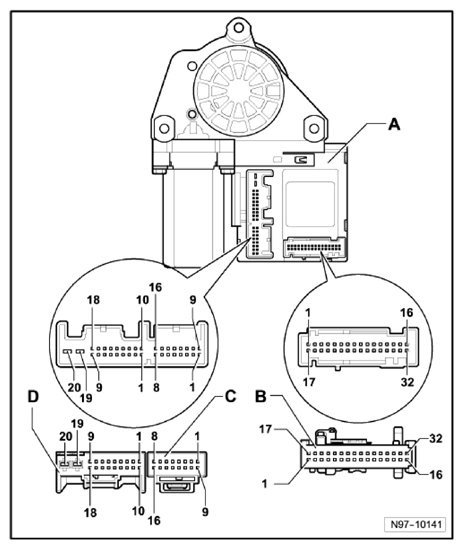

Fig 1: Left Rear Door Control Module Connector End View (J388, T32e, T20n)
Courtesy of AUDI OF AMERICA, LLC
A
Left Rear Door Control Module -J388- Connector
B
32-Pin Connector -T32e-
C
16-Pin Connector (not used)
D
20-Pin Connector -T20n-
