Garage Door Opener Control Module Connector End View (J530, T4ak)

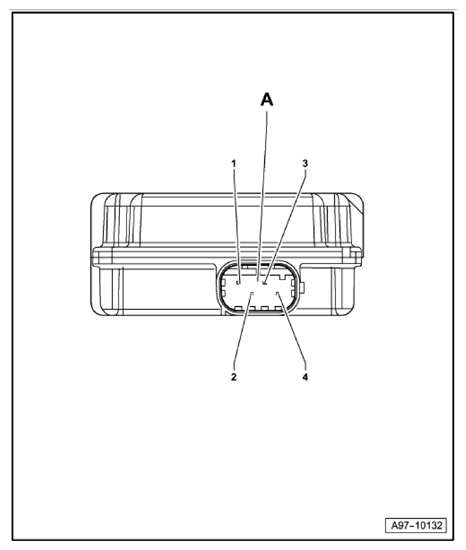

Fig 1: Garage Door Opener Control Module Connector End View (J530, T4ak)

G10359719

Courtesy of AUDI OF AMERICA, LLC

A	5-Pin Connector -T4ak-
