A/C System, Checking Function And Setting Temperature

-- Check all climate control functions.

-- Check whether 72° F (22 °C) is set in left and right display field -2-.

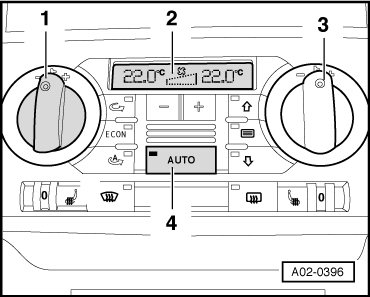

Fig 1: Identifying Climate Control Display And Buttons

Courtesy of AUDI OF AMERICA, LLC

-- Set temperature as follows, if necessary:

-- Press button -4- for automatic operation. The indicator lamp in the button comes on.

-- Turn the temperature regulators -1- and -3- and set the temperature on both sides to 22 °C.
