Mil On DTC P0441 In Engine Control Module - Electrical (GROUP 24, NO. 08-78)

Publication date: 2008-12-04
Reference number: GROUP 24, NO. 08-78
Supersedes refnos: 2010268, GROUP 01, NO. 04-11, GROUP 01, NO. 05-08, GROUP 24, NO. 06-07

MIL ON DTC P0441 IN ENGINE CONTROL MODULE - ELECTRICAL

TECHNICAL SERVICE BULLETIN

Reference Number(s): GROUP 24, NO. 08-78 (2010268/3), Date of Issue: December 4, 2008

AUDI:	A4 Cabriolet 2003 - 2006; A4 Sedan/Avant 2002 - 2005
GROUP:	24 - Multiport Fuel Injection

Superceded Bulletin(s): GROUP 24, NO. 06-07, Date of Issue: December 22, 2006

SERVICE INFORMATION

24 08 78 2010268/3 December 4, 2008. Supersedes Technical Service Bulletin Group 24 number 06-07 dated December 22, 2006.

APPLICABLE MODELS AND YEARS

Model(s)	Year	VIN Range	Vehicle-Specific Equipment
A4 Cabriolet	2003 - 2006	All	AMB 1.8T Engine
A4 Sedan/Avant	2002 - 2005	All	AMB 1.8T Engine

CONDITION

MIL on. DTC P0441 in Engine Control Module (J220).

No effect on driveability.

TECHNICAL BACKGROUND

New ECM software has been developed to prevent inadvertent activation of DTC P0441 during cold weather months.

NOTE: Any Update Programming procedure (flash) may overwrite any tuned ECM or TCM programming. A tuned ECM or TCM is described as any ECM or TCM altered so as to perform outside the normal parameters and specifications approved by Audi of America, Inc.

CURRENT TUNED ECM OR TCM REQUIREMENTS

If you encounter a vehicle with a tuned ECM or TCM, your dealership must do the following before performing any procedure that updates ECM or TCM programming:

Notify the owner that their ECM or TCM was found to have been tuned.
Notify the owner any damage caused by the tuning of the ECM or TCM (including any adverse emissions consequences) will not be covered by Audi of America, Inc. warranties.
Obtain the owner's written consent (see attached Control Module Tuning form) for any requested repair under warranty or outside warranty that requires flashing, which will automatically overwrite the tuned program.

PRODUCTION SOLUTION

Not applicable.

SERVICE

Check EVAP Purge Valve and Update SW.

Remove and discard the screen from the inlet side of the EVAP Purge Valve -N80, using a 4mm thread tap and T-handle. The EVAP Purge Valve does not need to be removed from vehicle for the inlet screen removal.

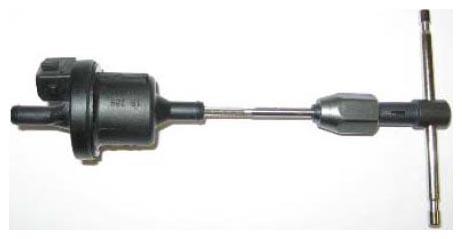

Fig 1: Removing Screen From Inlet Side Of EVAP Purge Valve
Before starting Updating programming of the ECM the operation of the EVAP Purge Valve -N80 must be tested to insure proper operation after the inlet screen is removed. In the Tester select - Vehicle Self Diagnosis - Basic Setting 006 - MVB 70 to run the EVAP purge Valve short trip test.
If the EVAP Purge Valve passes the short trip test, continue with Update Programming. Do not replace the EVAP Purge Valve.
If the EVAP Purge Valve fails the short trip test after the inlet screen is removed, continue to diagnose the condition and perform necessary repairs with the use of Guided Fault Finding and the Repair Manual. These additional repairs are not covered by this Technical Service Bulletin.
Updated Programming of the ECM is not allowed if the short trip test does not pass after the inlet screen is removed.
Ensure the Control Module Tuning form has been filled out by the owner.
Always use the 6017B K Line Adapter to ensure communication to all modules.
NOTE: Do not use a 6017 or 6017A while flashing. Doing so may result in complete control module failure.

Vehicles with Engine Control Module (J220) with the SW Part Numbers and SW Levels listed below need to be updated with the action code in the table:

SOFTWARE INFORMATION

Model	Engine	Old Software Part Number	Old Software Version	New Software Part Number	New Software Version (or higher)	SVM Action Code
2002- A4 Manual/Auto	1.8T AMB	8E0 909 518 F	below 0005	8E0 909 518 F	0005	NA8E24MB01
2002- A4 CVT		8E0 909 518 G	below 0005	8E0 909 518 G	0005
2003- A4/Cabriolet		8E0 909 518 AF	all	8E0 909 518 BC	0040
2004- A4/Cabriolet		8E0 909 518 AK	All	8E0 909 518 BC	0040
2005- A4/Cabriolet 2005-06- Cabriolet		8E0 909 518 BC	below 0040	8E0 909 518 BC	0040

Tip: The SVM Process must be completed in its entirety so the database receives the update confirmation response. A warranty claim may not be reimbursed if there is no confirmation response to support the claim.

For further SVM update instructions and troubleshooting, please refer to the SVM Operating Manual; ElsaWeb TSB 2011732

WARRANTY

WARRANTY INFORMATION

When procedure applies to vehicles within the New Vehicle Limited Warranty, use the following:
Claim Type:	W2
Part Identifier:	2470
Damage Code	2470 39 002 1
Labor Operation:	2024 1999	Remove EVAP Purge Valve N-80, inlet screen, includes all operation necessary to complete repair.	15 TU
	2470 9999	Update Programming ECM, includes all operations necessary to complete repair.	70 TU
Diagnostic Time:	No Diagnostic Time allowed
Claim Comment:	As per TSB #2010268/3
All warranty claims submitted for payment must be in accordance with the Audi Warranty Policies and Procedures Manual. Claims are subject to review or audit by Audi Warranty.

ADDITIONAL INFORMATION

The following Technical Service Bulletin will be necessary to complete this procedure:

2011732 ; Software Version Management (SVM) Operating Manual

All part and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Dept. and service manuals for the latest information.

ATTACHMENTS

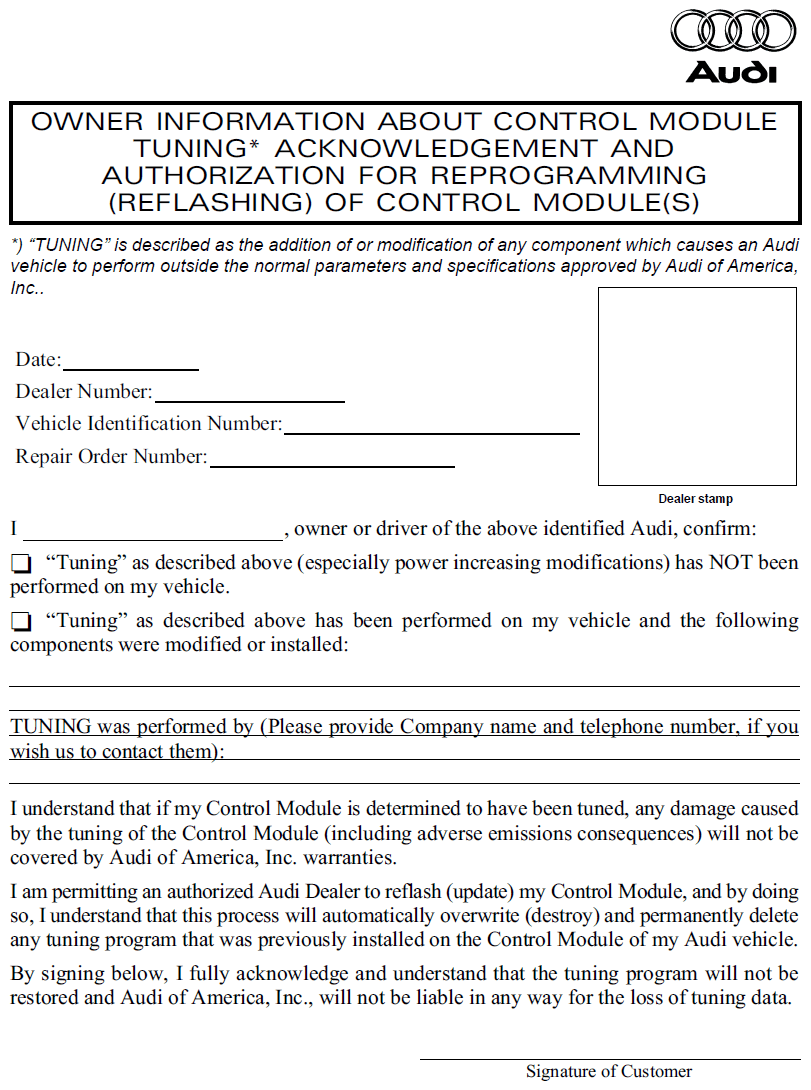

Fig 2: Control Module Tuning Form
