1.8L - Ignition System, Engine Code(S): AMB
>>
Ignition System
>>
Ignition system, checking
>>
Camshaft position (CMP) sensor -G40-, checking
>>
Checking power supply
Checking power supply
Disconnect Camshaft Position (CMP) sensor -G40- connector -arrow-.

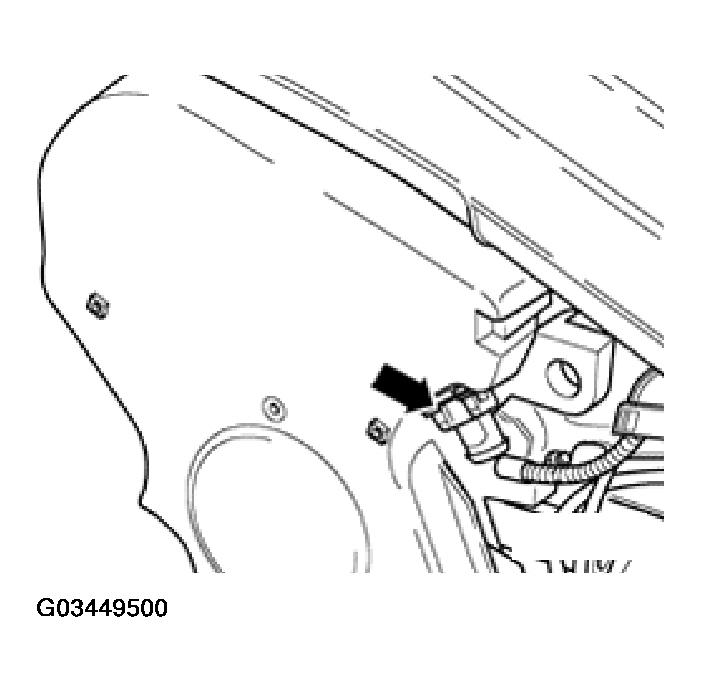

Fig 1: Disconnecting Camshaft Position Sensor G40 Connector
Courtesy of AUDI OF AMERICA, INC.
Connect multimeter as follows to measure voltage:

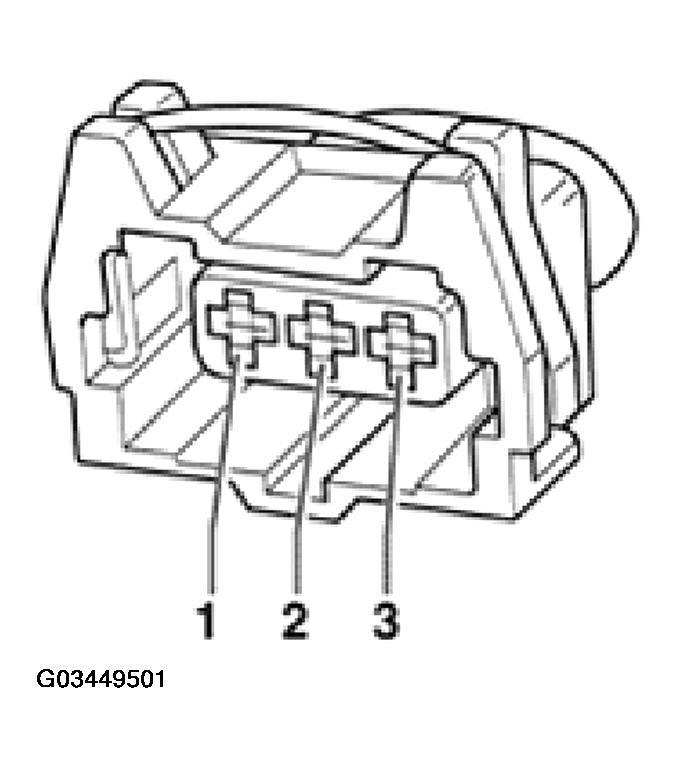

Fig 2: Identifying CMP Sensor Harness Connector Terminals
Courtesy of AUDI OF AMERICA, INC.
CMP CIRCUIT CHECK: TERMINAL 1
Connector terminal
Measure to
1
Engine ground (GND)
Switch ignition on.
Specified value: approx. 5 V
Courtesy of AUDI OF AMERICA, INC.
