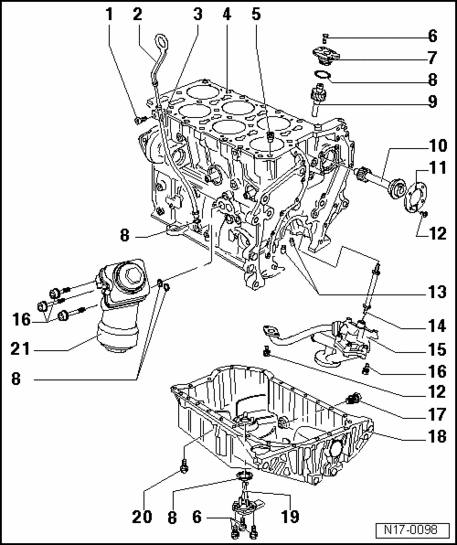

Lubrication system, component overview: Notes

1 - 5 Nm

• Secured to intake manifold

2 - Oil dipstick

3 - Guide tube for oil dipstick

4 - Cylinder block

5 - Oil return valve

• Removing and installing. Refer to Removing and installing oil return valve
• Note installed position

6 - 8 Nm

7 - Cover for oil pump drive

8 - O-ring

• Replace
• Lubricate before installing

9 - Oil pump drive

10 - Intermediate shaft

11 - Thrust washer

12 - 10 Nm

• Install using locking fluid

13 - Oil spray jet (for cooling of pistons)

• For crankshaft bearings 2...7
• Opening pressure: 2.0 bar
• Removing and installing. Refer to Removing and installing oil spray jet

14 - Input shaft for oil pump drive

15 - Oil pump

• Disassembling and assembling. Refer to Oil pump, component overview
• Coat oil pressure pipe at cylinder block and at oil pump housing with sealing paste

16 - 23 Nm

17 - Oil drain plug, 30 Nm

18 - Sump

• Removing and installing. Refer to Sump, removing and installing

19 - Oil level/Oil level thermal sensor -G266-

• Removing and installing. Refer to Removing and installing Oil level thermal sensor -G266-

20 - 12 Nm

21 - Oil filter bracket

• Overview of components. Refer to Oil filter bracket, component overview
• Removing and installing. Refer to Oil filter bracket, removing and installing
