Ignition coils, removing and installing: Removing

• Disconnect electrical connectors at ignition coils by releasing tab (arrow) with assembly tool T10118 and pulling connector.

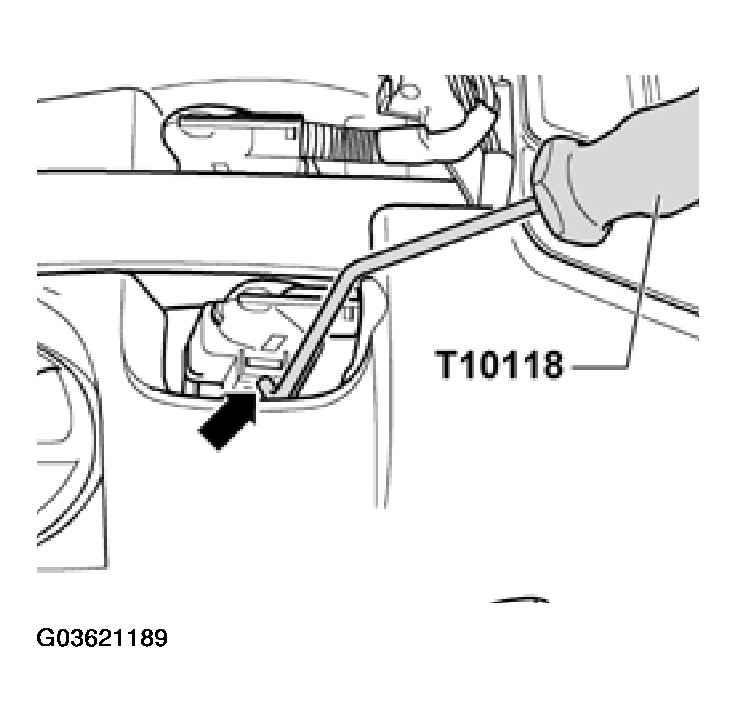

  Fig 1: Disconnecting Electrical Connectors With Assembly Tool T10118

  Courtesy of AUDI OF AMERICA, INC.
• Attach puller T10095 A to ignition coils as shown in illustration (arrow) and remove ignition coils one at a time.

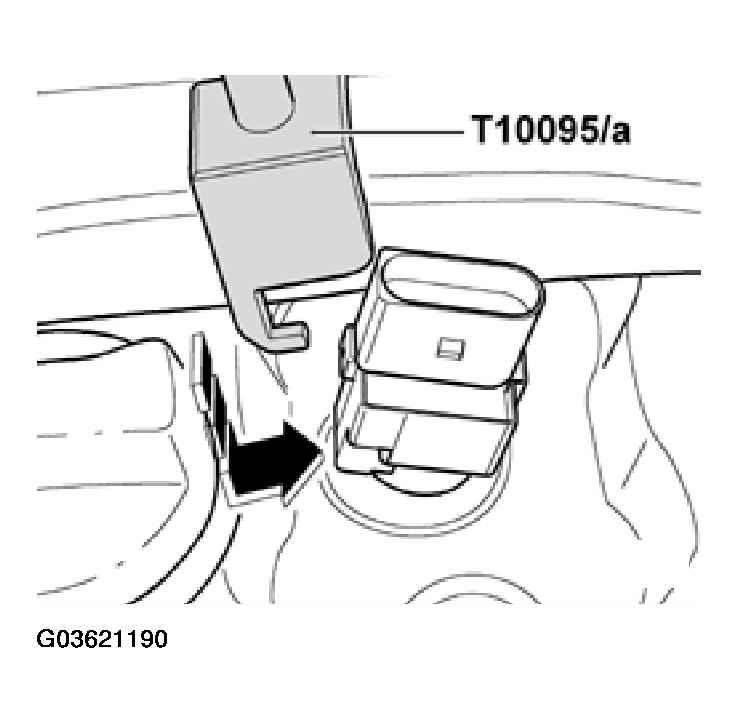

Fig 2: Attaching Puller T10095 To Ignition Coils

Courtesy of AUDI OF AMERICA, INC.
