Exhaust system, component overview: Notes
NOTE:

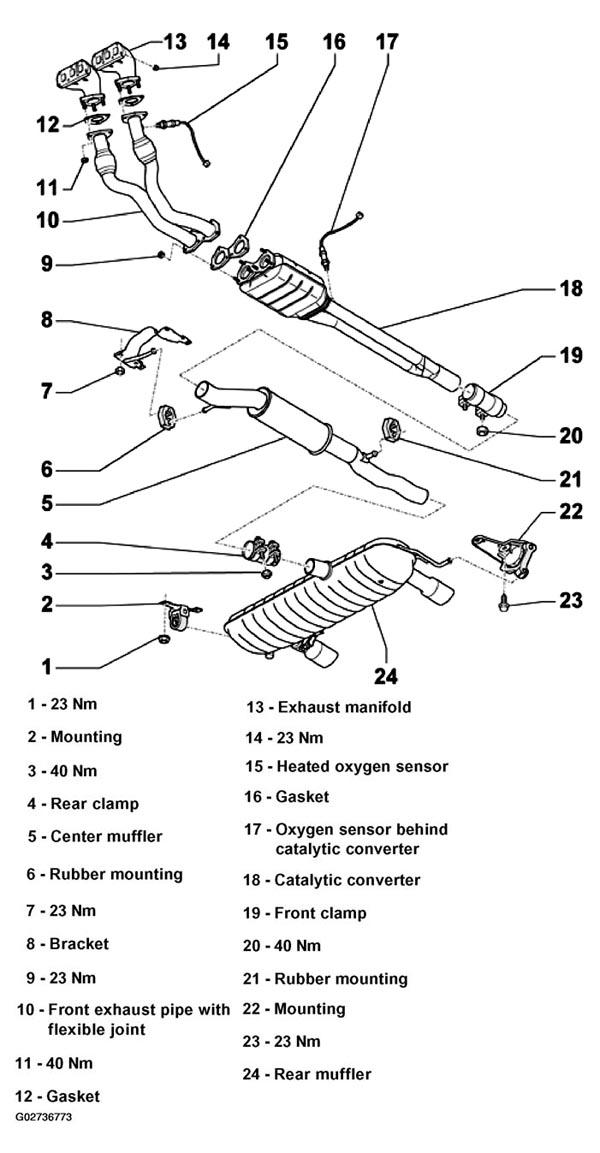

The following list refers to items in Fig 1.
- 23 Nm
- Mounting
- Replace if damaged
- 40 Nm
- Rear clamp
- For separate replacement of center and rear mufflers
- Installed position, see INSTALLED POSITION OF FRONT CLAMP
- Before tightening, adjust exhaust system free of stress. See EXHAUST SYSTEM, ALIGNING FREE OF STRESS .
- Tighten bolt connections evenly
- Center muffler
- Center and rear muffler are one unit as original equipment and can be replaced individually for repair purposes.
- Cutting location, see CENTER AND REAR MUFFLER, SEPARATING
- Align exhaust system so it is free of stress before tightening clamp. See EXHAUST SYSTEM, ALIGNING FREE OF STRESS .
- Rubber mounting
- Replace if damaged
- 23 Nm
- Bracket
- For exhaust system mounting in drivehshaft tunnel.
- 23 Nm
- Replace
- Front exhaust pipe with flexible joint
- Do not bend flexible joint more than 10° otherwise it can be damaged.
- Removing and Installing, see FRONT EXHAUST PIPE, REMOVING AND INSTALLING
- Align exhaust system so it is free of stress before tightening clamp. See EXHAUST SYSTEM, ALIGNING FREE OF STRESS .
- 40 Nm
- Replace
- Gasket
- Replace
- Exhaust manifold
- Removing and Installing, see EXHAUST MANIFOLD, REMOVING AND INSTALLING
- 23 Nm
- Replace
- Heated oxygen sensor
- 2x
- Threads of new oxygen sensors are already greased with assembly paste. Paste must not get into slots on sensor body
- When reusing old oxygen sensor, grease threads lightly with hot bolt paste. See Parts catalog.
- Removing and installing:
See OXYGEN SENSORS BEFORE CATALYTIC CONVERTER, REMOVING AND INSTALLING .
- Gasket
- Oxygen sensor behind catalytic converter
- 2x
- Threads of new oxygen sensors are already greased with assembly paste. Paste must not get into slots on sensor body
- When reusing old oxygen sensor, grease threads lightly with hot bolt paste. See Parts catalog.
- Removing and installing:
- Catalytic converter
- Protect from damage due to impact
- Aligning, see ALIGNING CATALYTIC CONVERTER
- Front clamp
- Align exhaust system so it is free of stress before tightening clamp. See EXHAUST SYSTEM, ALIGNING FREE OF STRESS .
- 40 Nm
- Rubber mounting
- Replace if damaged
- Mounting
- Replace if damaged
- 23 Nm
- Rear muffler
- Rear and center muffler are one unit as original equipment. Can be replaced individually for repair purposes
- Cutting location, see CENTER AND REAR MUFFLER, SEPARATING
- Align exhaust system so it is free of stress before tightening clamp. See EXHAUST SYSTEM, ALIGNING FREE OF STRESS .
