Lock carrier, pulling toward front

Special tools, testers and auxiliary items required

Fig 1: Support Tool 3369

Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE:

Before raising the vehicle on a hoist (wheels off the ground), first activate the vehicle jack mode → 43 - Self Leveling Suspension .

Work procedure

For vehicles with auxiliary heater

Fig 2: Removing Bolts For Exhaust Pipe Of Parking Heater/Auxiliary Heater On Noise Insulation

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove bolts - arrows - for exhaust pipe of parking heater/auxiliary heater on noise insulation.

All

Fig 3: Locating Mounting Parts And Removing Noise Insulation

Courtesy of VOLKSWAGEN UNITED STATES, INC.

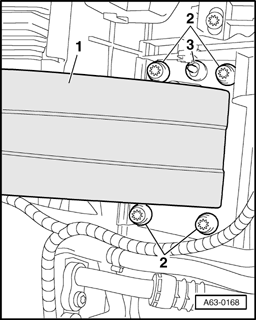

Fig 4: Removing Bolt On Left/Right

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 5: Removing Bolts On Left/Right

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 6: Installing Bolt From Support Tool 3369 On Left/Right

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 7: Removing Bolts And Pulling Lock Carrier Toward Front

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Installing

Installation is in reverse order of removal, note the following:

NOTE:

All cable ties which are opened or cut open when removing engine, must be replaced in the same position when installing engine.
