Jacking & Hoisting: Front

Support front of vehicle on the vertical reinforcement of the side member at the height of the marking for the on-board car jack. See Fig 1 .

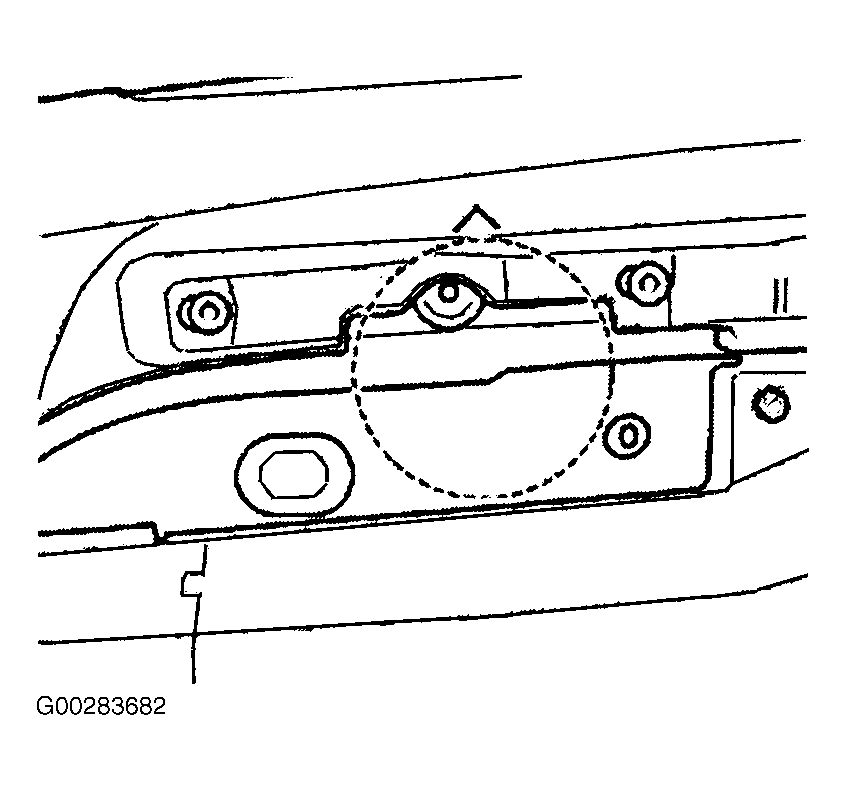

Fig 1: Identifying Front Lifting Point

Courtesy of AUDI OF AMERICA, INC.
