Center console, removing and installing: Notes
- Make auxiliary tool for disassembly of outlet.

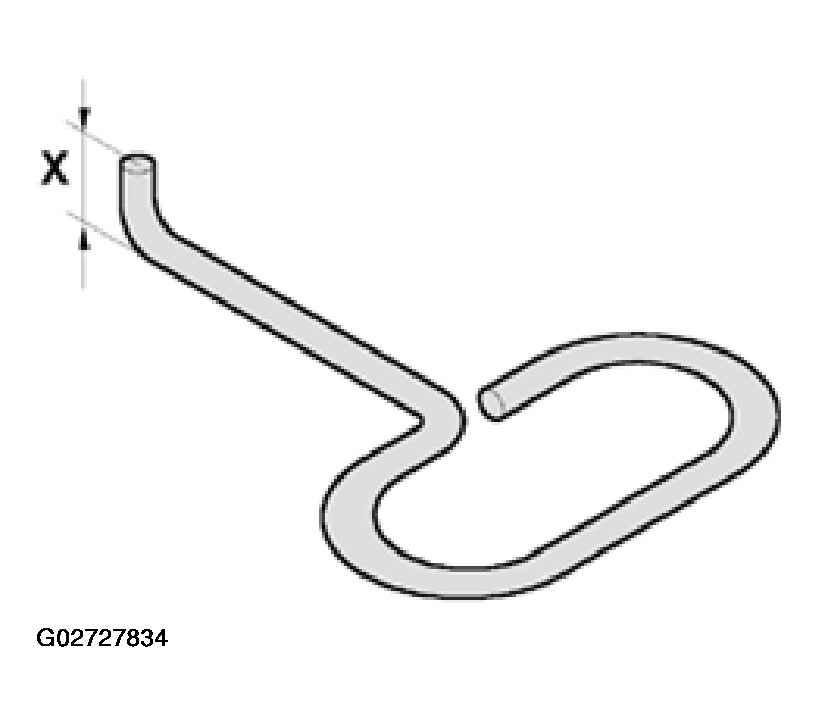

- Bend wire of 3 mm diameter as shown in illustration.
- Dimension -x- = 6 mm
- Remove speaker mounting for telephone. See CENTER CONSOLE AND CENTER ARMREST WITH TELEPHONE, INSTALLATION .
- Position seats all the way back.
- Remove floor left and right cover. See FLOOR PAD FRONT, REMOVING AND INSTALLING .
- Turn accelerator pedal stop 1/4 revolution (90°) further.
- Remove screws -1- and -2-.

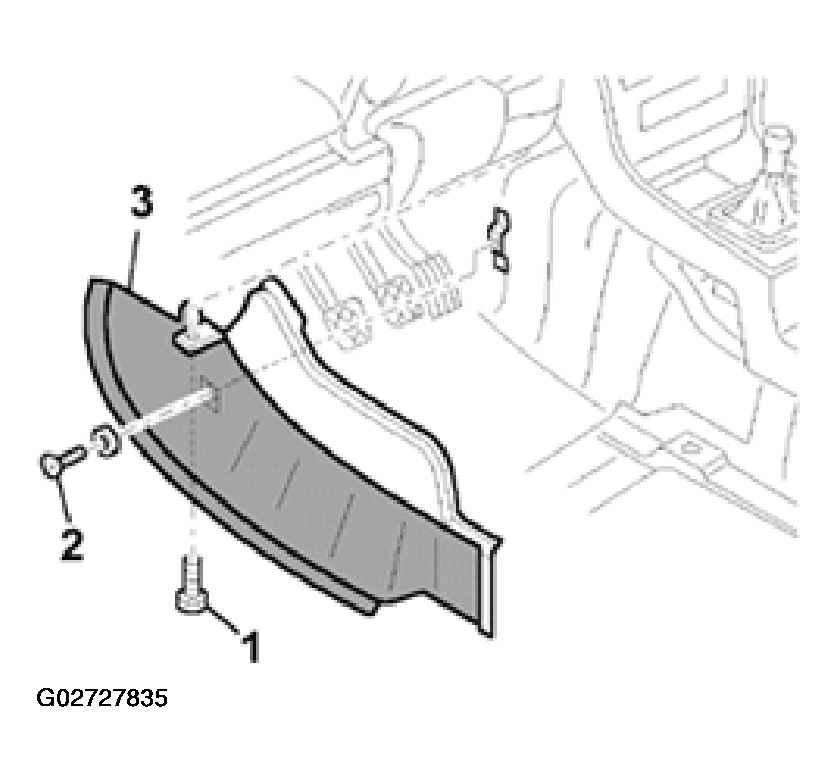

- Remove trim left for center console -3- (to remove, slide trim forward and unhook from back).

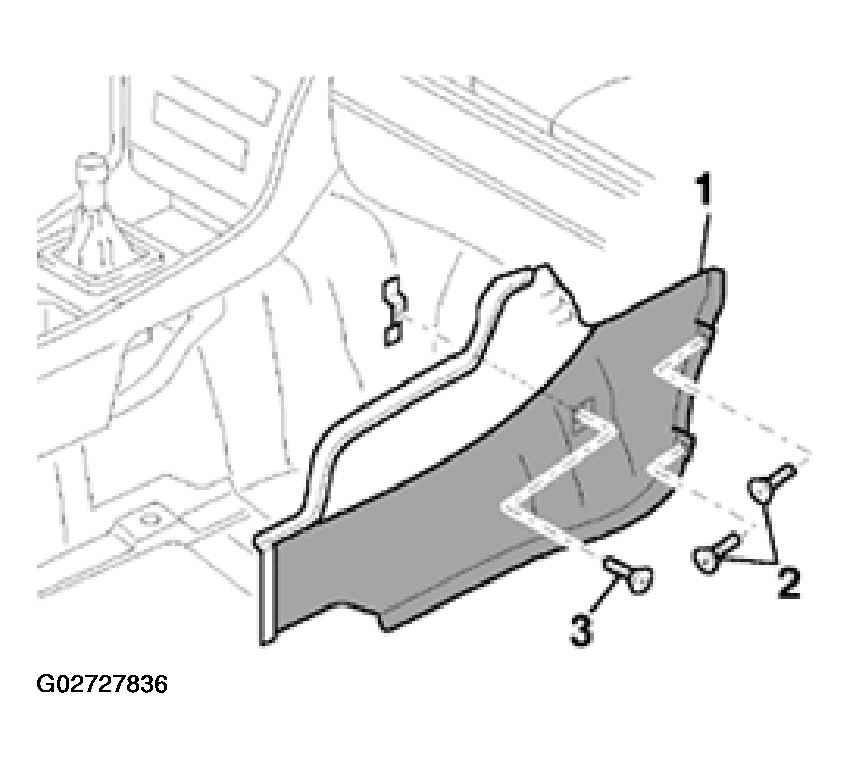

- Remove screws -2- and -3-. See Fig 3.
- The front screws -2- can be reached by turning back floor covering.
- Remove right-side trim for center console -1-.
- To remove, slide trim forward and unhook from back.
- Pull up parking brake lever as far as possible.

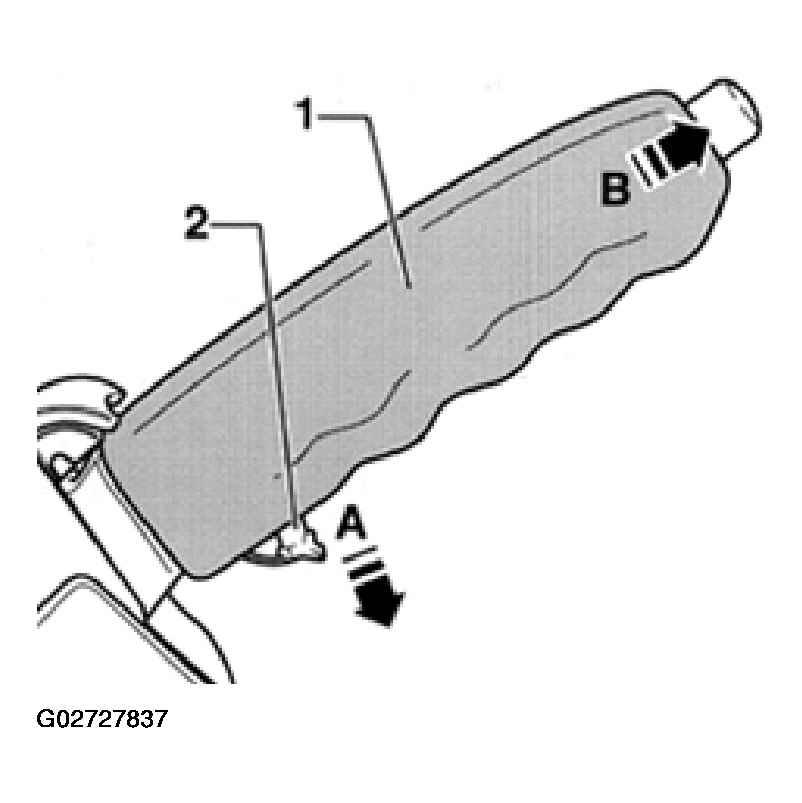

- Pry out lock pin -2- in direction of (arrow -A-). See Fig 4.
- Remove parking brake lever handle -1- in direction of (arrow -B-).

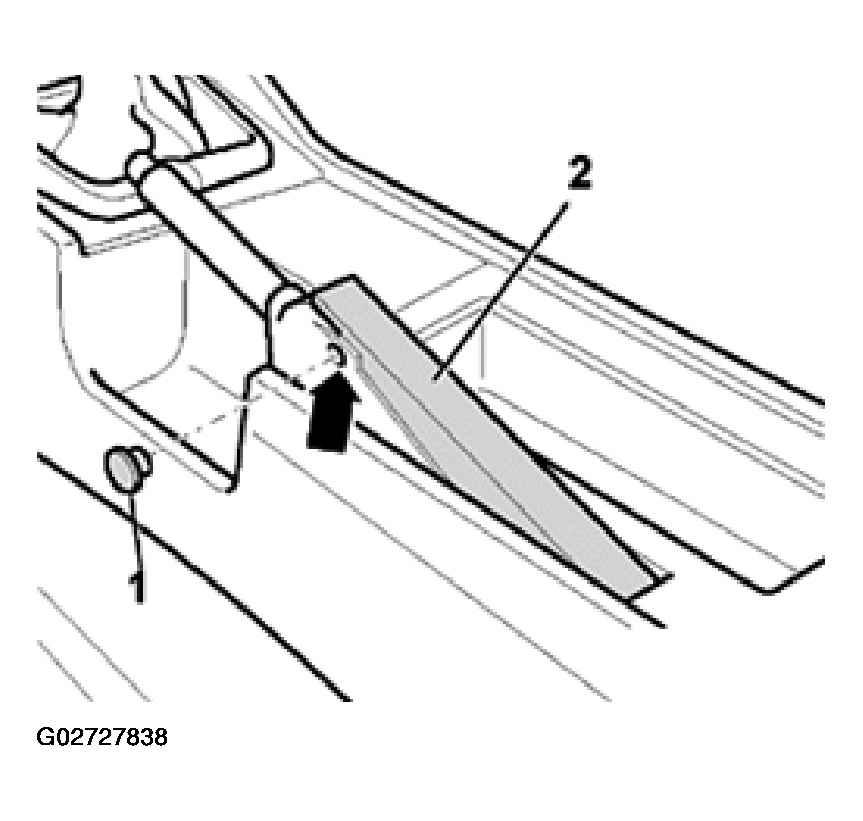

- Pry off cover -1- and loosen lock bolt (arrow) approx. 2 rotations. See Fig 5.
- Remove trim plate for trim -2- from front.
- Remove parking brake trim.

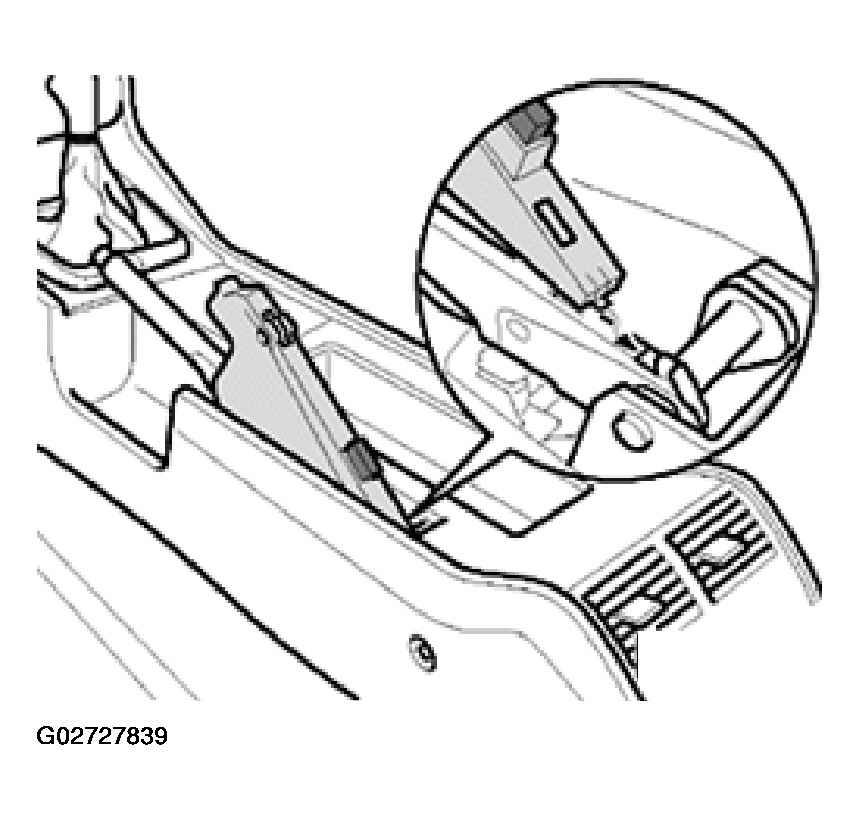

Note the retaining tab at the rear/narrow end of the trim.
