Work sequence

• Connect vehicle diagnostic, testing and information system VAS 5051. See VEHICLE DIAGNOSTIC, TESTING AND INFORMATION SYSTEM VAS 5051, CONNECTING AND SELECTING FUNCTIONS and select vehicle system "01 - Engine electronics" from list. Engine must be idling.

Indicated on VAS 5051:

Fig 1: Scan Tool VAS 5051 Display - Checking Intake Air Temperature (IAT) Sensor G42 (1 Of 3)

Courtesy of AUDI OF AMERICA, INC.

• From list -1- select diagnostic function "08 - Reading measured value block".

Indicated on VAS 5051:

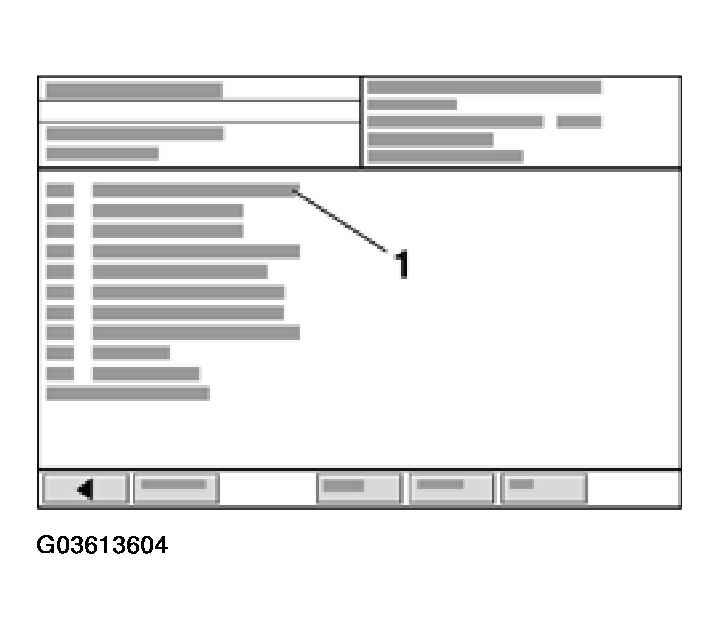

Fig 2: Scan Tool VAS 5051 Display - Checking Intake Air Temperature (IAT) Sensor G42 (2 Of 3)

Courtesy of AUDI OF AMERICA, INC.

1 - Enter display group

• Use keypad -2- to enter "004" for "Display group number 004" and confirm by touching Q key.

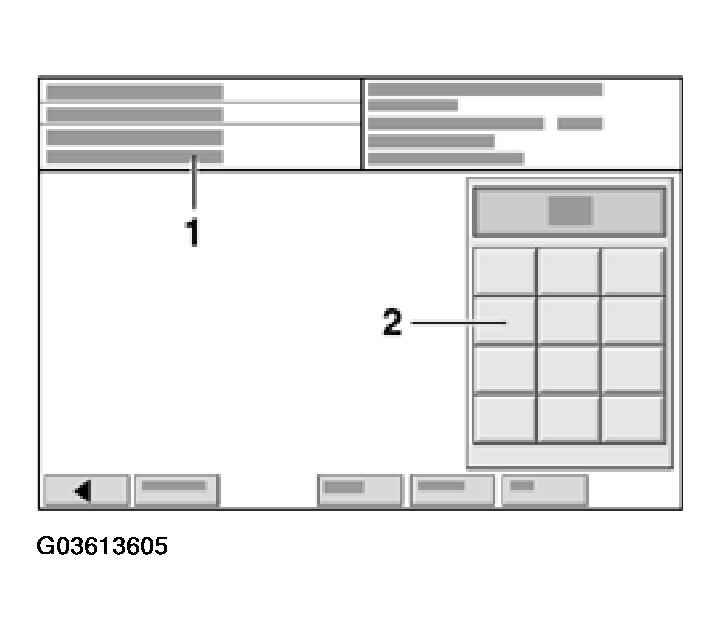

Indicated on VAS 5051:

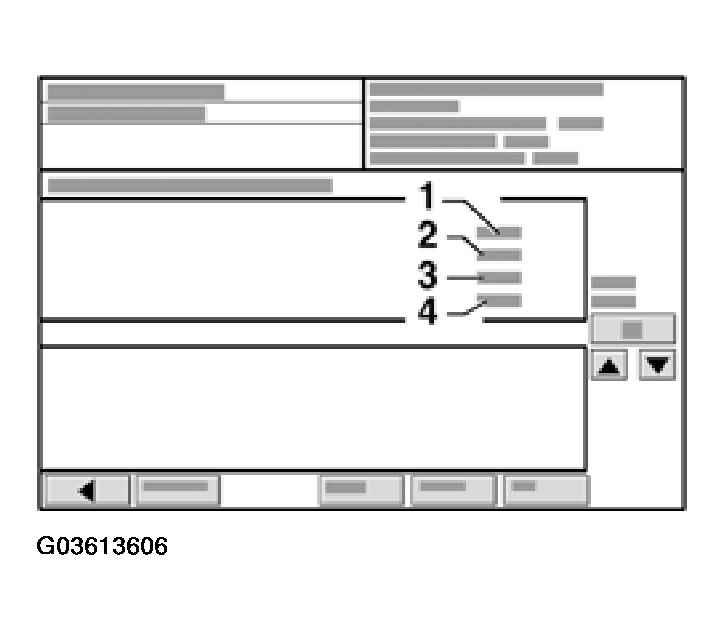

Fig 3: Scan Tool VAS 5051 Display - Checking Intake Air Temperature (IAT) Sensor G42 (3 Of 3)

Courtesy of AUDI OF AMERICA, INC.

• Check display in zone -4-.
  DISPLAY GROUP 004: INTAKE AIR TEMPERATURE WITH ENGINE IDLING



  	Display zones
  	1	2	3	4
  Display group 004: Intake air temperature with engine idling
  Display	xxxx RPM	xx.x V	xxx.x °C	xxx.x °C
  Significance	Engine speed	Battery voltage	Coolant temperature	Intake air temperature
  Operating range				-48.0...143.0 °C
  Specification	xxxx RPM	12.0...15.0 V	80.0...110.0 °C	Between ambient temperature and 110 °C (1)
  (1) If temperature displayed deviates considerably from sensor ambient temperature, check sensor/sensor wiring for contact resistance and open circuit.

• Terminate function "08 - Reading measured value block" by touching <-- key.
