Code Letters, Engine/Transmission Applications, Ratios, Equipment

WARNING: This page is about a different variant/trim than selected.

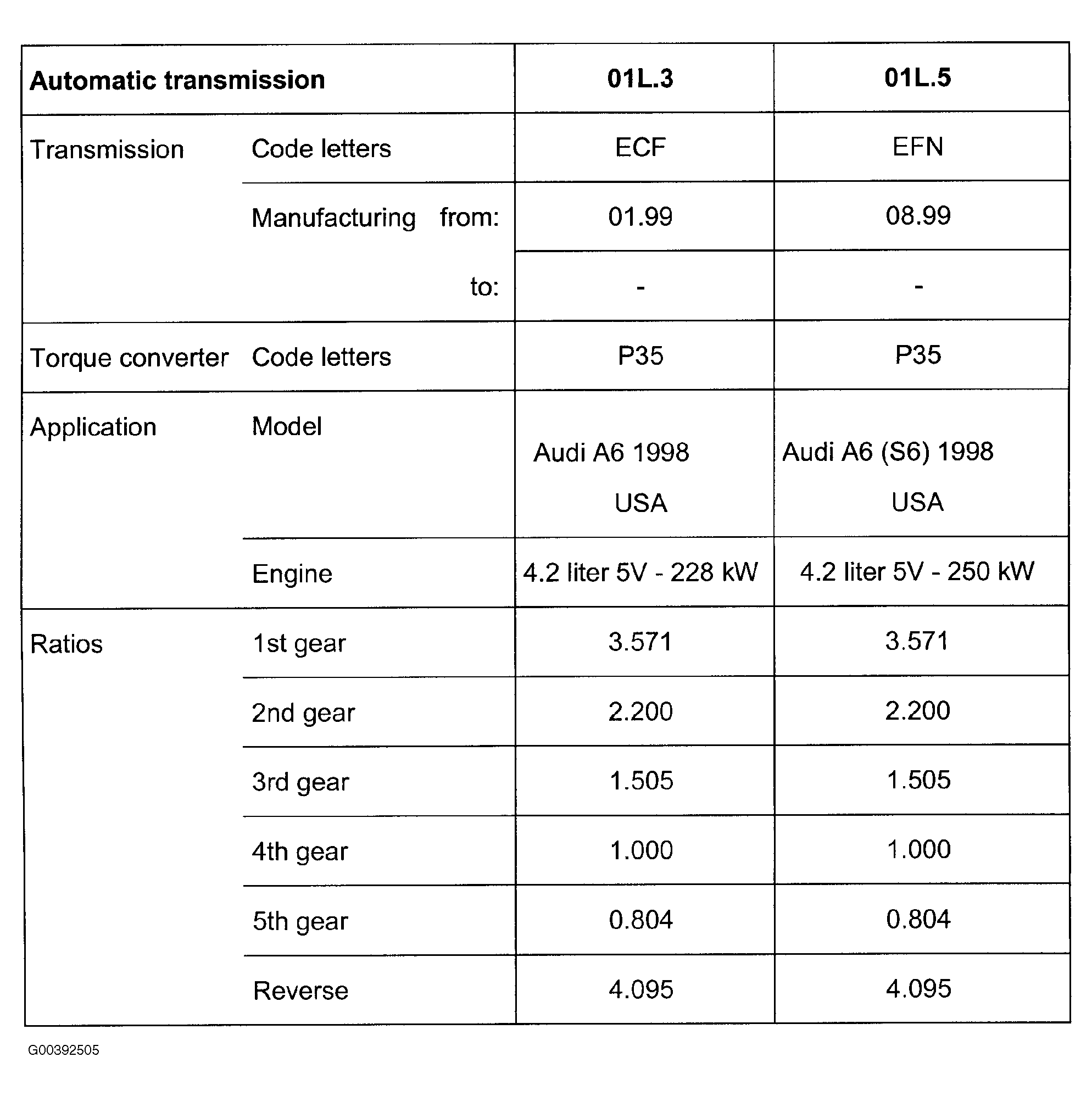

Fig 1: Identifying Code Letters, Application & Gear Ratios (1 Of 2)
G00392505Courtesy of AUDI OF AMERICA, INC.

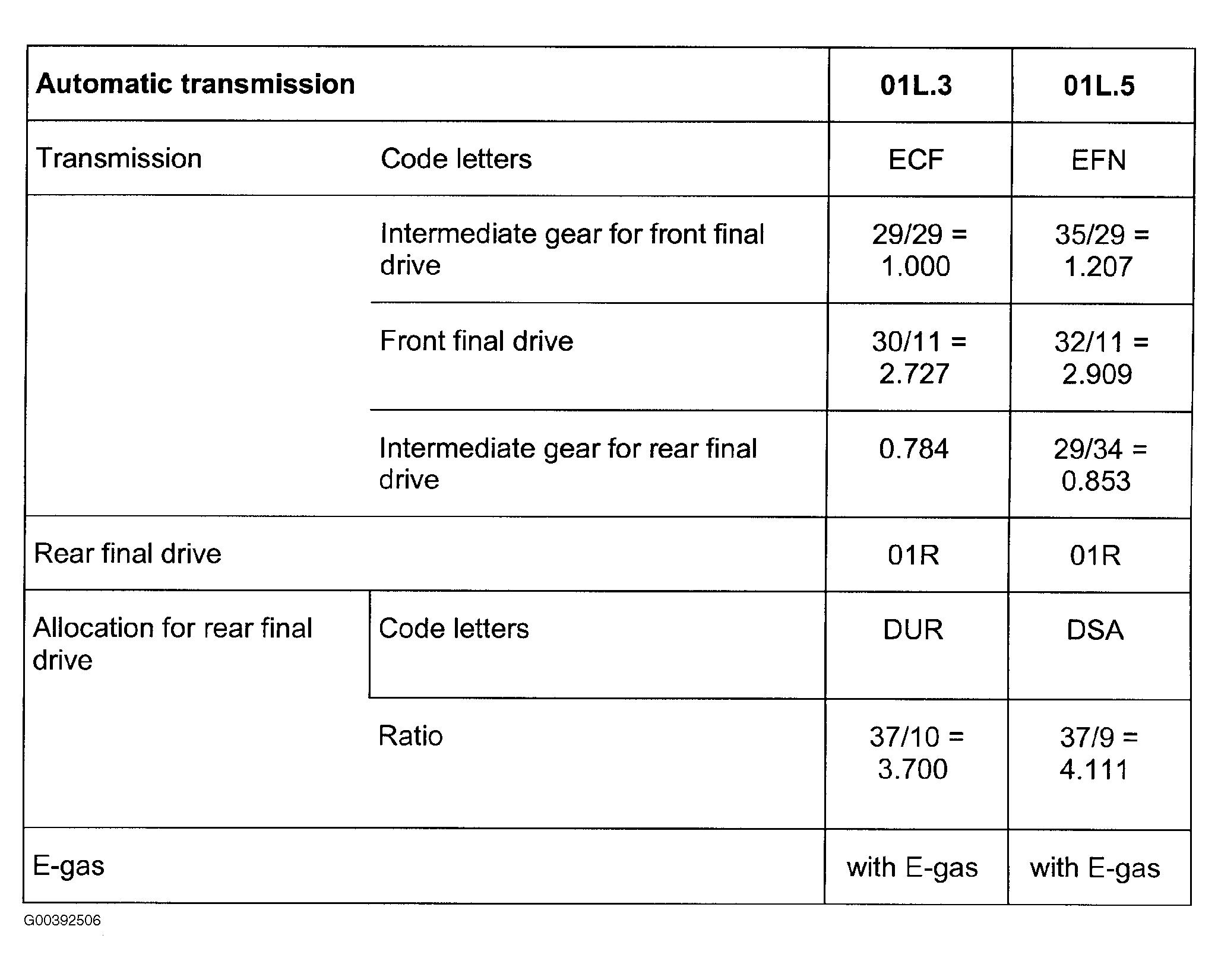

Fig 2: Identifying Code Letters, Applications & Gear Ratios (2 Of 2)
G00392506Courtesy of AUDI OF AMERICA, INC.
