Check phase position of CMP sensor
- Connect testing and information system VAS5051. See VEHICLE DIAGNOSTIC, TESTING AND INFORMATION SYSTEM VAS5051, CONNECTING AND SELECT FUNCTIONS . Select vehicle system "01 - Engine electronics" in selection. Engine must be running at idling speed.

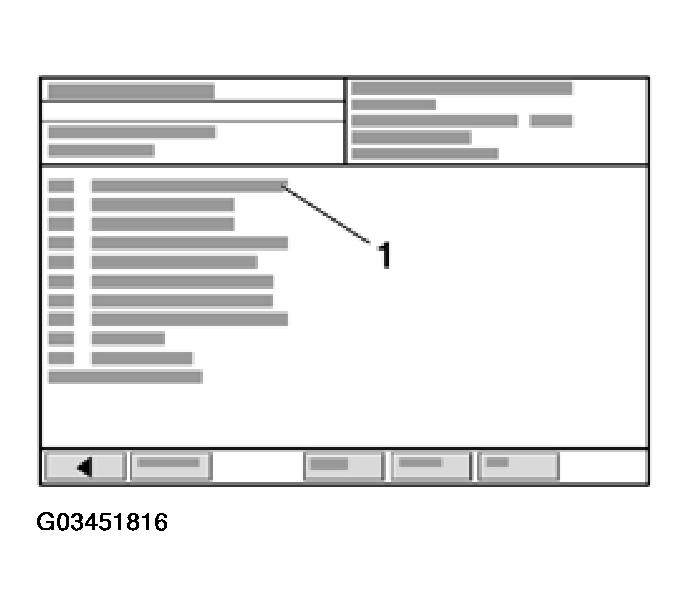

Display on VAS5051:
- Under -1- select diagnostic function "08 - Read measured value block".

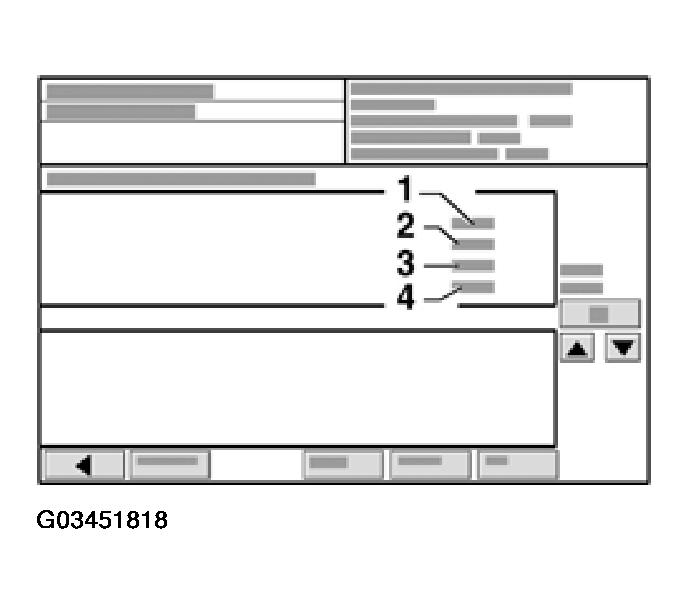

Display on VAS5051:
1 - Enter display group

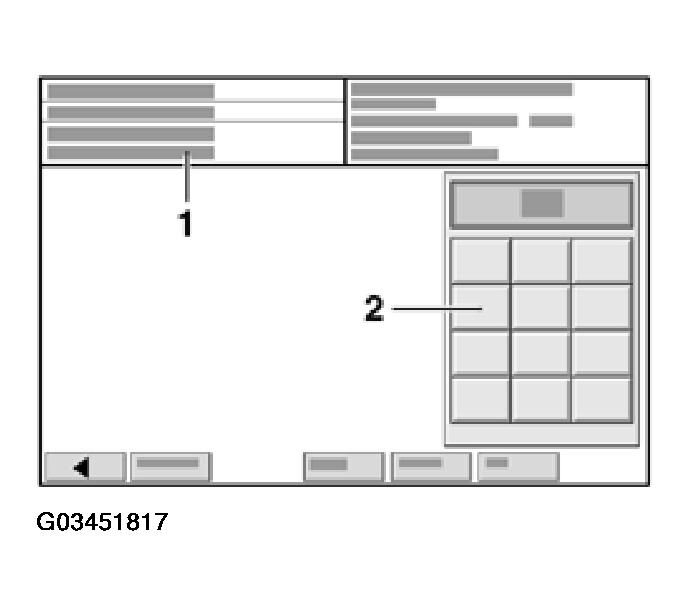

- Enter "093" for "display group number 093" in zone -2- and confirm entry by pressing -Q- button.
Display on VAS5051:
- Check indication in display fields -1- to -4-.DISPLAY GROUP 093: PHASE LOCATIONS OF CMP SENSORS (BANK 1 AND BANK 2), ENGINE IDLING
Display zones 1 2 3 4 Display group 093: Phase locations of CMP sensors (bank 1 and bank 2), engine idling Display ° CA ° CA ° CA ° CA Display Phase location, intake bank 1 Phase location, intake bank 2 Phase location, exhaust bank 1 Phase location, exhaust bank 2 Specif. value -20...32 ° CA -20...32 ° CA -20...32 ° CA -20...32 ° CA Note: If the specified values are exceeded significantly in the two CMP sensors of one cylinder bank, the connectors for the CMP sensors of that cylinder bank are interchanged.
If the specified values for one CMP sensor are exceeded, check CMP sensor and camshaft adjustment.
See CAMSHAFT ADJUSTMENT, CHECKING . - Exit function "08 - Read measured value block" by pressing [left arrow] button.
