Control module for multi-function steering wheel -J453-, removing and installing: Removing
- Remove driver's side storage compartment.
See STORAGE/COVERS .

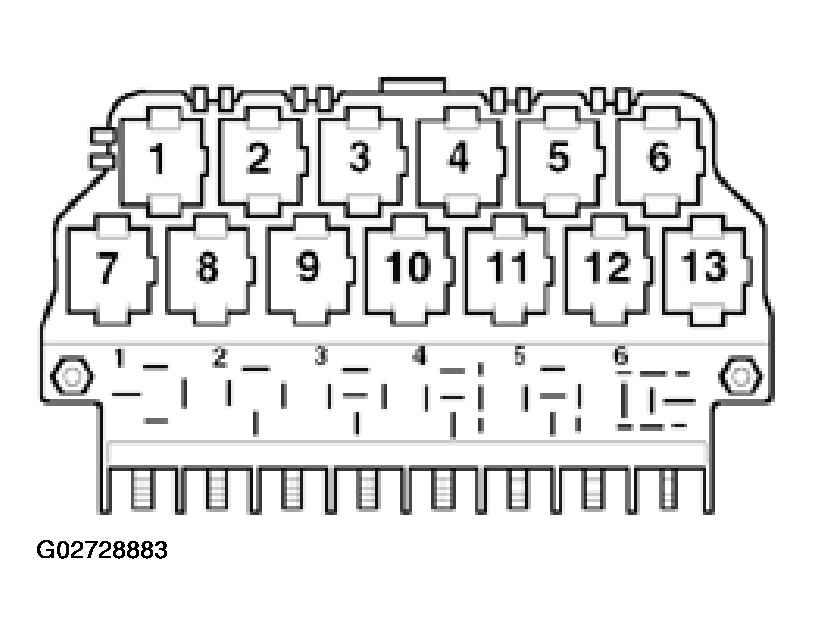

Control module for multi-function steering wheel -J453 is stored in a double relay housing and is located in relay socket -7- and -8- of 13-pin relay carrier above the central electric.
- Remove control module for multi-function steering wheel from relay socket.
