Fuel Supply, Generic Scan Tool - 2.8L V6 Aha, ATQ
>>
Fuel Supply
>>
EVAP canister system
>>
Leak Detection Pump (LDP), checking
>>
Test sequence
>>
Vehicles with engine code ATQ
Vehicles with engine code ATQ
Check wires between test box and 3 -pin connector for open circuits according to wiring diagram.
Terminal 1+ socket 80
Terminal 2+ socket 25
Wire resistance: max: 1.5

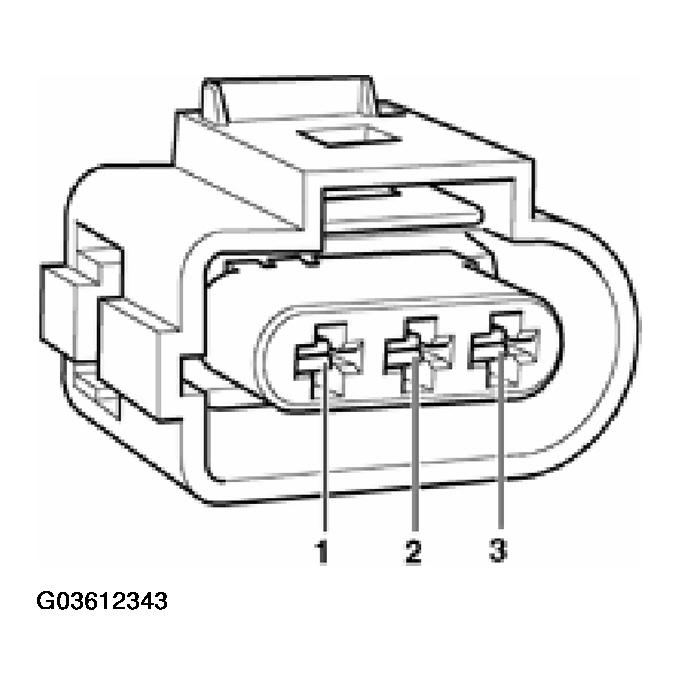

Fig 1: Identifying Leak Detection Pump Harness Connector Terminals
