Telephone/Telematic Control Module -J526-, removing and installing: Removing
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.
- Switch off emergency battery. See EMERGENCY BATTERY, SWITCHING OFF/ON .
- Remove right lower A-pillar trim
See LOWER A-PILLAR TRIM, REMOVING AND INSTALLING .
- Remove floor mats.
- Carefully disconnect electrical and antenna connections.

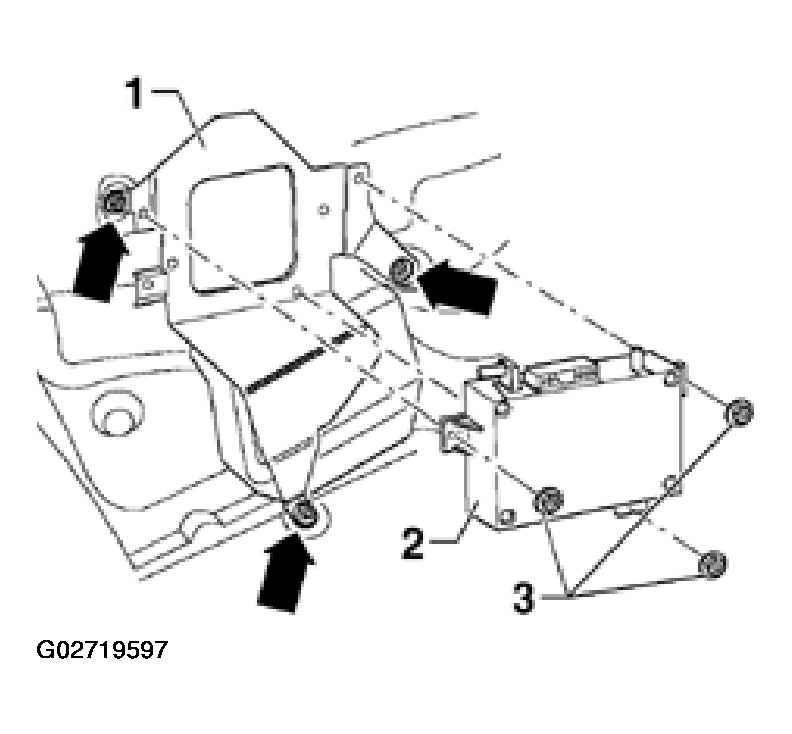

- Remove nuts -3- (5 Nm) and control module -2- from frame -1-.
