CD Changer Unit -R41-, removing and installing: Removing

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

Open left rear luggage compartment storage box.
Remove screws -A- (3.5 Nm) from retainer -1-.
Disconnect electrical connections from modules and CD changer.
Remove retainer -1-.

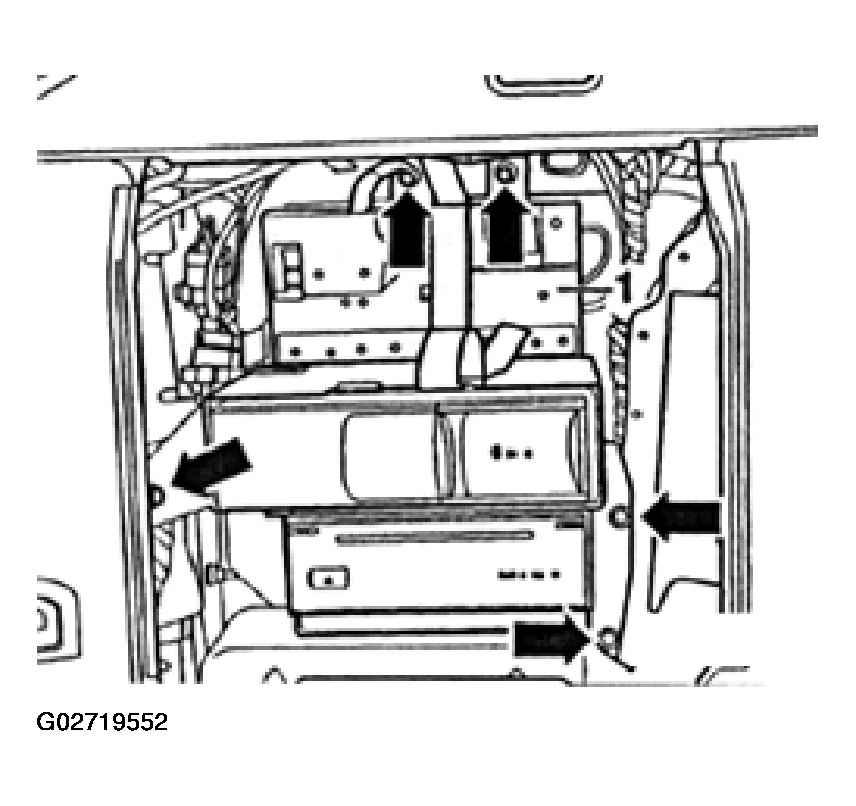

Fig 1: Removing CD Changer Unit Screws & Retainer

Courtesy of AUDI OF AMERICA, INC.

Remove screws -2- (2 Nm) and lift CD changer -1- out from retainer.

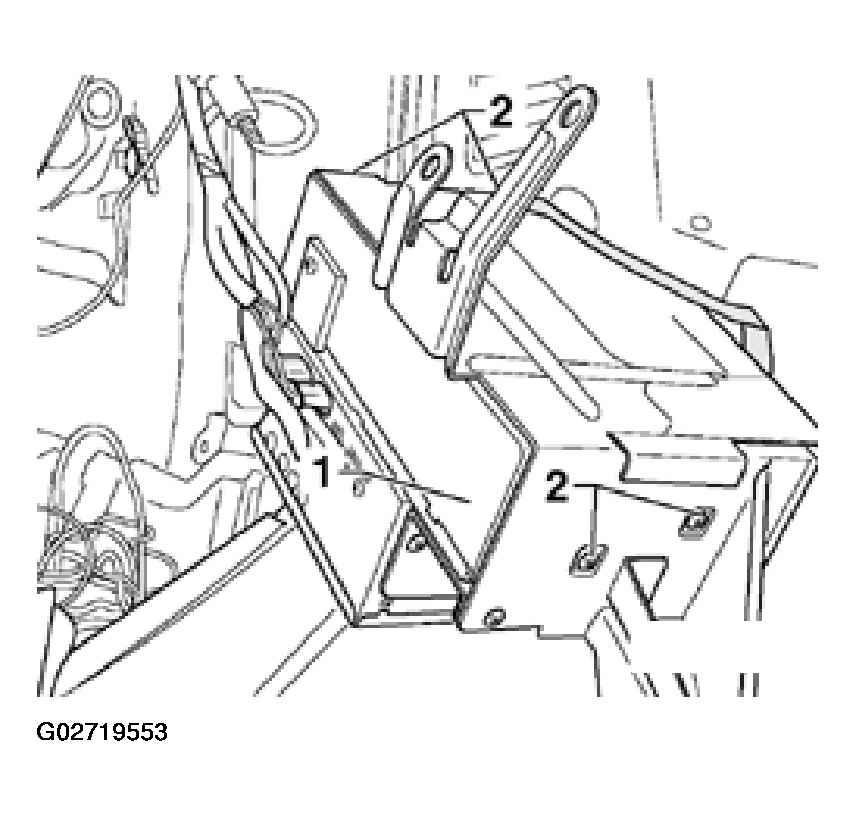

Fig 2: Removing Screws & CD Changer From Retainer

Courtesy of AUDI OF AMERICA, INC.

CAUTION: Do not use fasteners other than the original factory type when installing control modules. Control module damage will result.
