Function Mode 08: Reading Measured Value Block

When RAPID DATA TRANSFER SELECT FUNCTION XX is displayed on scan tool, press 0 then 8 (08) to select READ MEASURING VALUE BLOCK. Press "Q" key to confirm input. For central locking system, select desired display group to be observed (001, 002, 003 or 004). See Fig 1 -Fig 4 . Enter display group. For interior monitoring of anti-theft system, enter 001. See Fig 5 . Press "Q" key to confirm input. After completing test, press right arrow key to return to select function mode.

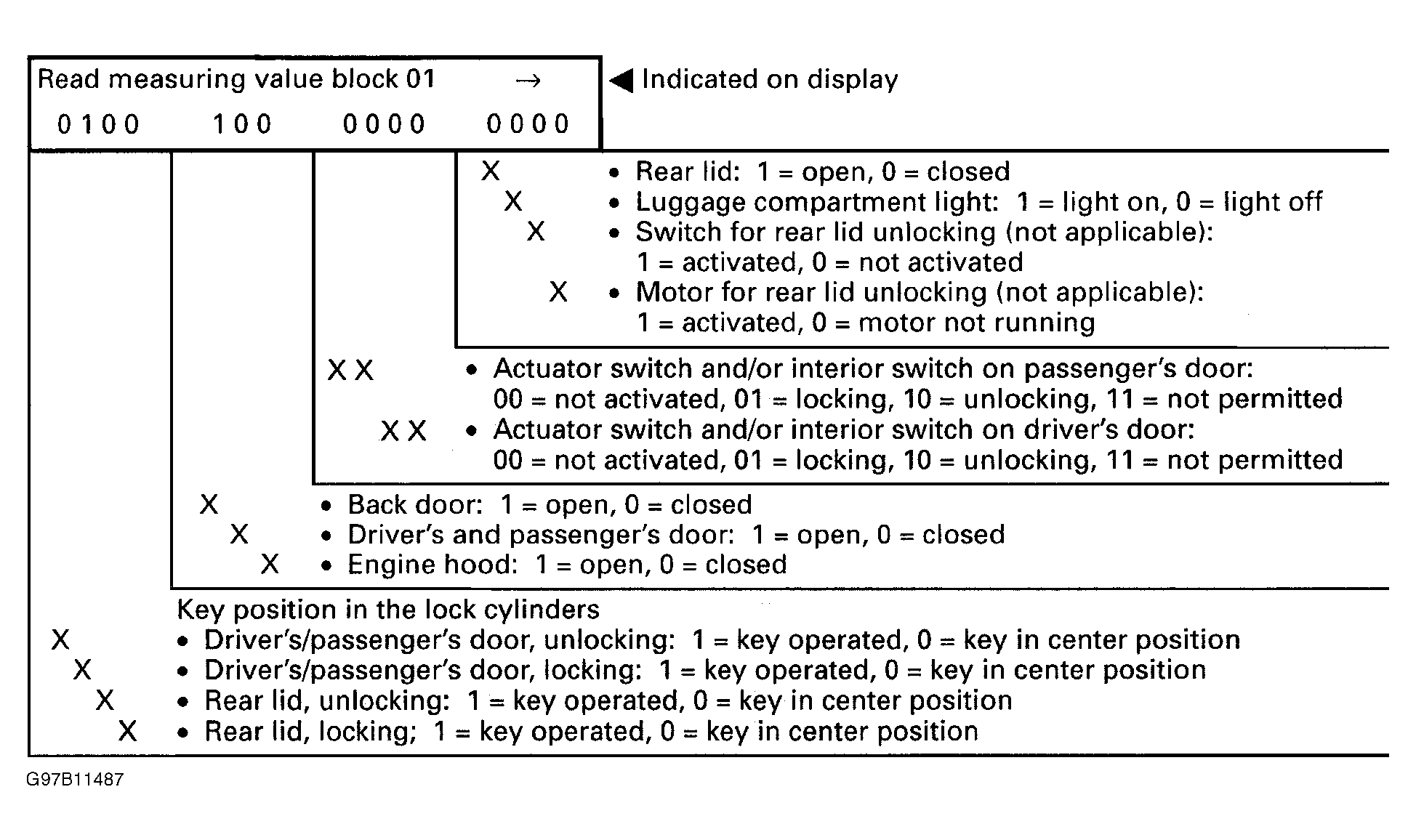

Fig 1: Display Group 001 Character Identification (Central Locking)

Courtesy of AUDI OF AMERICA, INC.

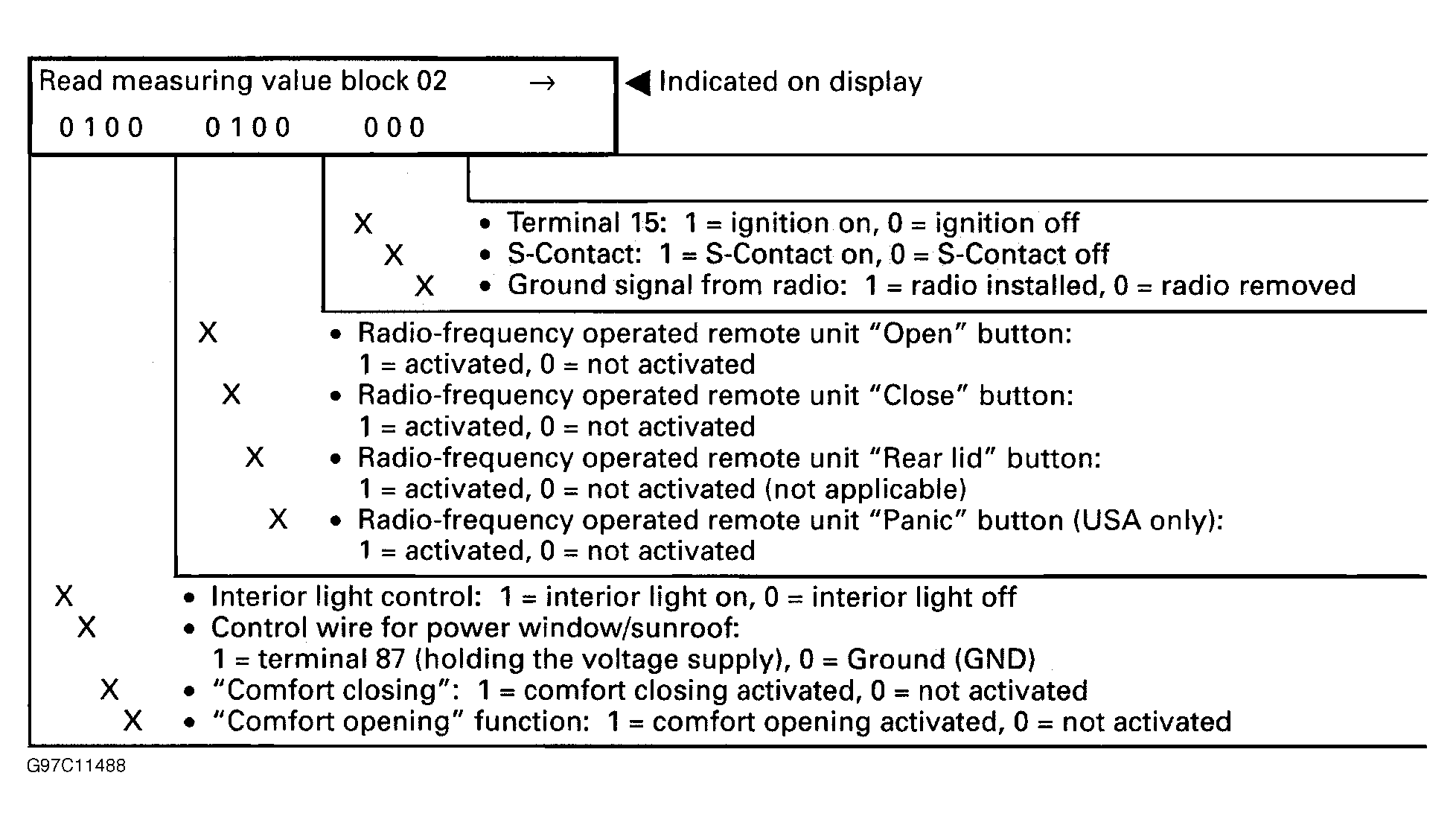

Fig 2: Display Group 002 Character Identification (Central Locking)

Courtesy of AUDI OF AMERICA, INC.

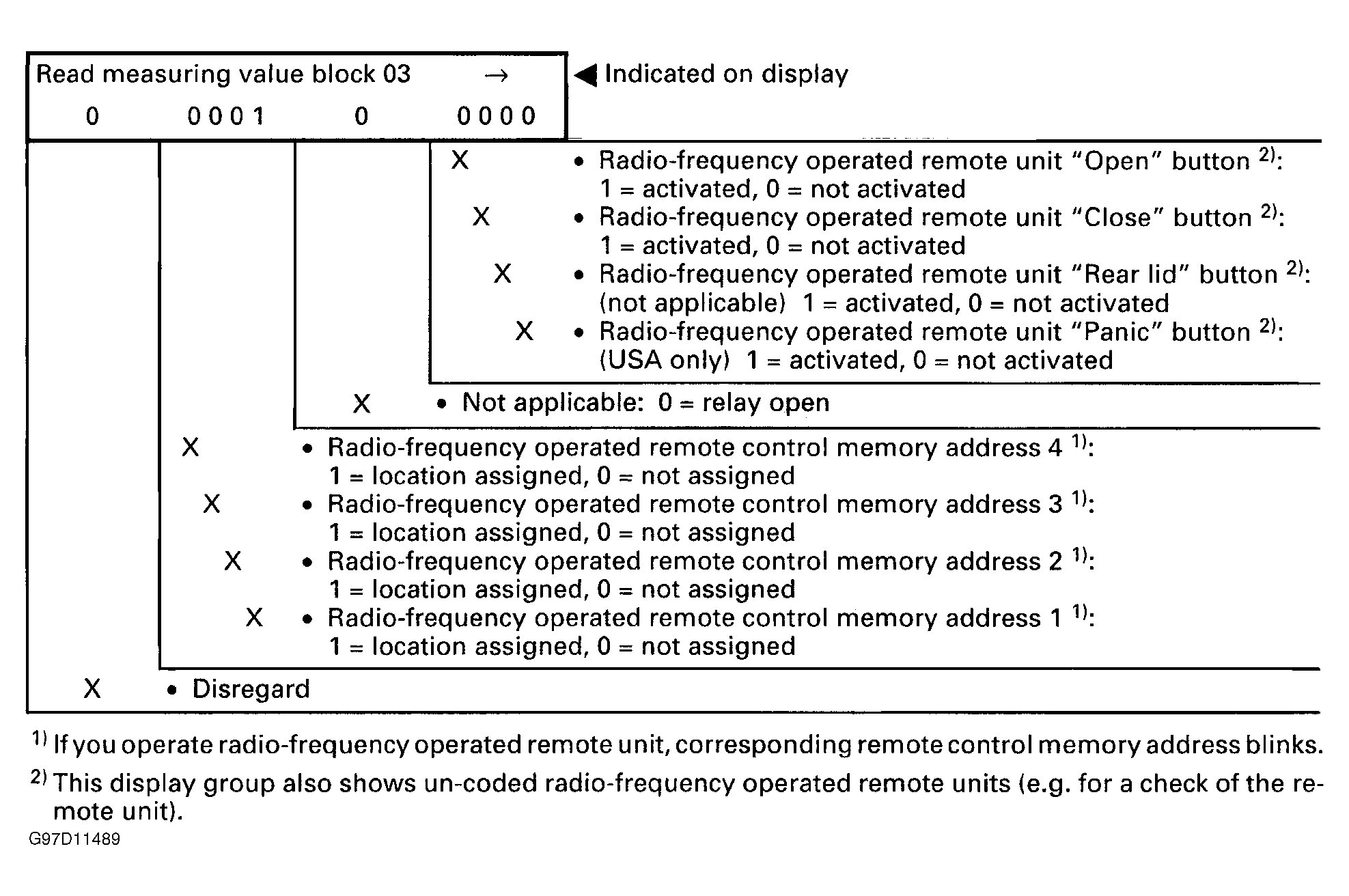

Fig 3: Display Group 003 Character Identification (Central Locking)

Courtesy of AUDI OF AMERICA, INC.

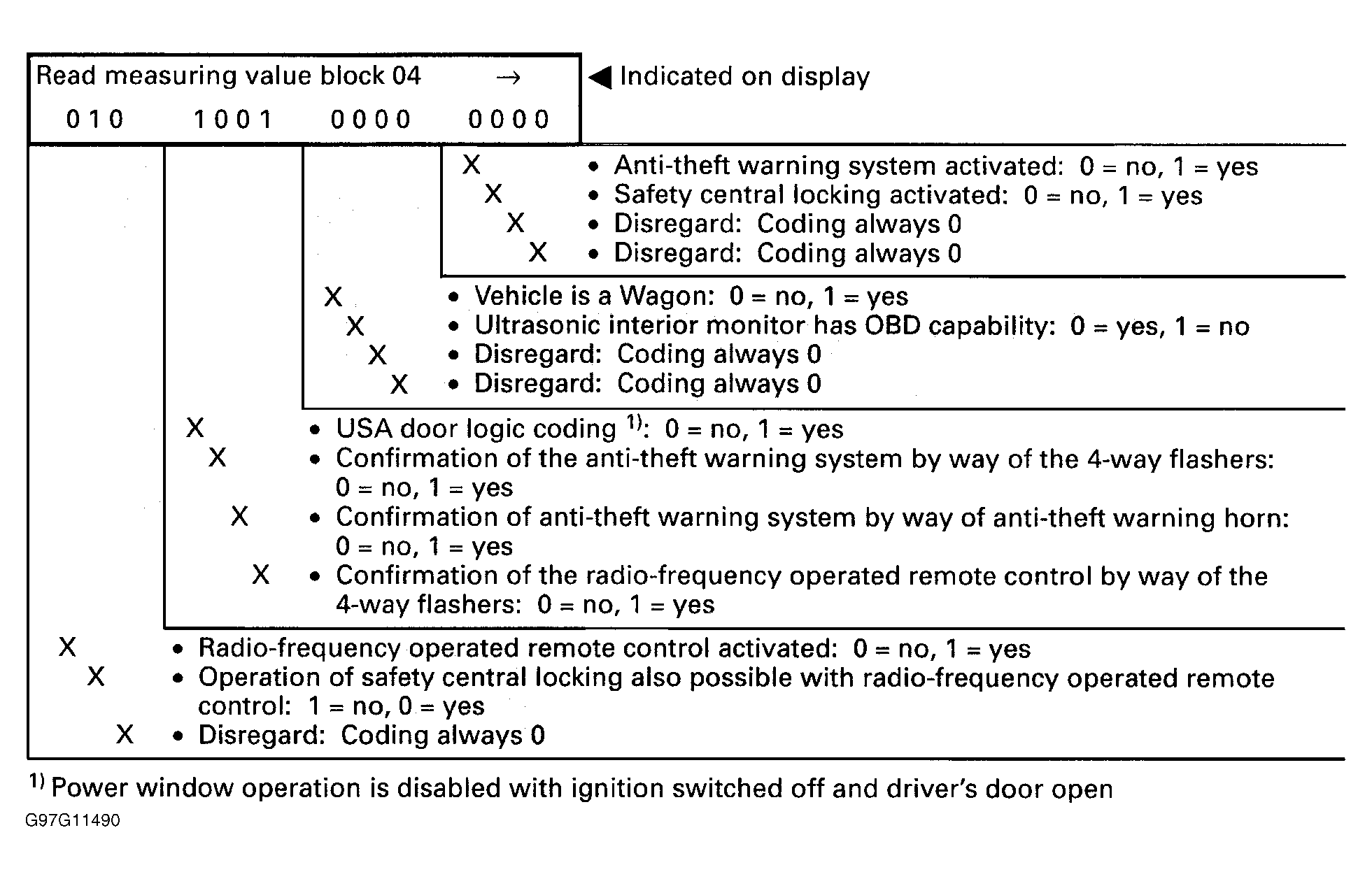

Fig 4: Display Group 004 Character Identification (Central Locking)

Courtesy of AUDI OF AMERICA, INC.

Fig 5: Display Group 001 Character Identification (Ultrasonic Interior Monitoring Of Anti-Theft System)

Courtesy of AUDI OF AMERICA, INC.
