Level sensor (front wheel drive), removing and installing: Installing

NOTE: When installing linkage at level sensor, use an 8 mm opened wrench with dimension -A-, to avoid damaging seal. See Fig 1.

Dimension -A-: 4 mm

When installing level sensor, make sure that sensor crank and linkage are in correct orientation to one another.

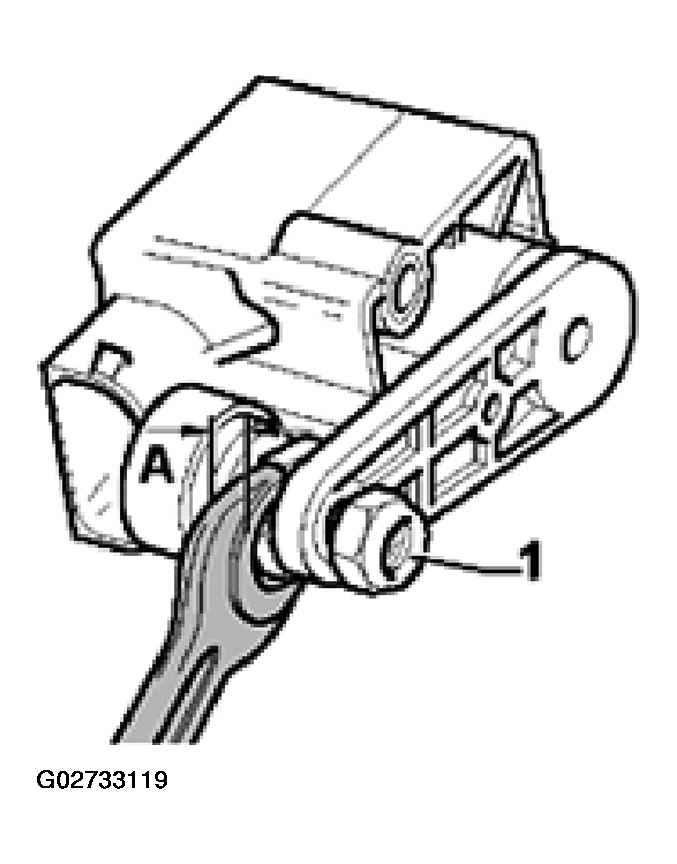

Fig 1: Installing Linkage At Level Sensor
G02733119Courtesy of AUDI OF AMERICA, INC.
NOTE:
  • Linkage must be vertical.
  • Sensor crank (arm) must point backward and downward.

Rest of installation is reverse of removal.
