Level sensor (front wheel drive), assembly overview

1. Hex-nut, tighten to 3 Nm.

   See LEVEL SENSOR (FRONT WHEEL DRIVE), REMOVING AND INSTALLING .

2. Level sensor
3. Coupling link
4. Level sensor bracket
5. Double hex bolt, 25 Nm
6. Hex-nut, tighten to 10 Nm.
7. Socket-head bolt,4 Nm
8. Hex-nut, tighten to 5 Nm.
9. Cable ties
10. Hex-nut, tighten to 10 Nm.

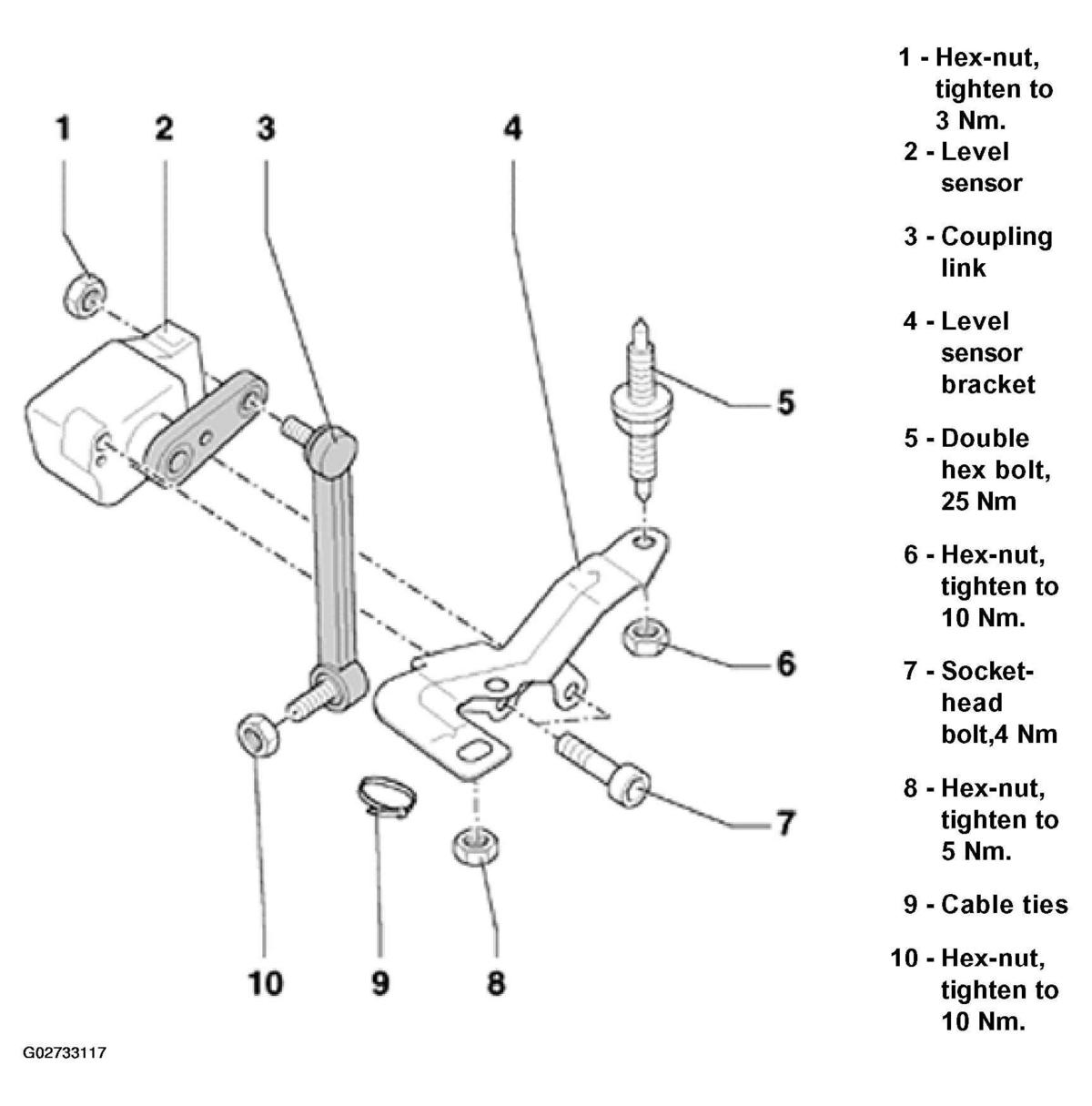

Fig 1: Identifying Level Sensor Components (Front Wheel Drive)

Courtesy of AUDI OF AMERICA, INC.
