Air unit mount, assembly overiew: Installing

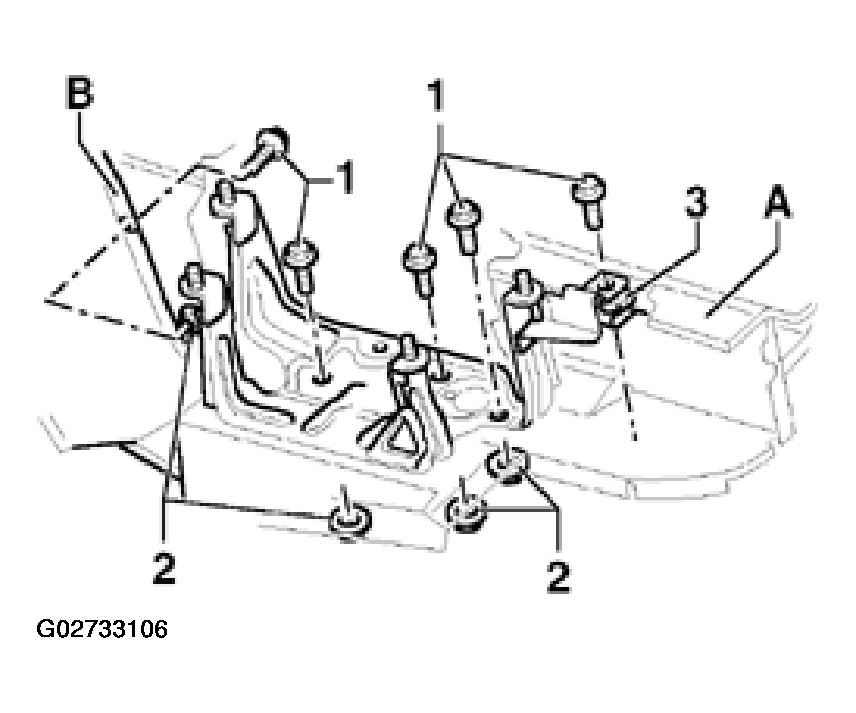

- Instead of bonded joint, additional attachment points are required on installing holder -3-. See Fig 1.
- Remove dirt (wax etc.) on inside holder support area of body.
- Remove grommet in bottom part of unit holder.
- Insert unit holder in body and screw to wheel housing flange and longitudinal member.
- Make three 8.5 mm diameter holes in unit holder and body at marked locations (holder).
- Remove unit holder and deburr holes.
- Remove corrosion protection (PVC) in nut on outside of body.
- Insert unit holder and screw on as follows.
Tightening sequence:
- Holder to longitudinal member -A-. See Fig 2.
- Holder to wheel housing flange -B-
- -1- Hex bolt, 25 Nm. See Fig 2.
- -2- Hex flange nut
- -3- Speed nut
- Insert rubber grommet.
- Seal attaching points on outside of body (black Terolan).
- Insert unit with support sections -1- and -2- in unit holder and screw on. Pay attention to installation position of rubber bushings. See AIR UNIT MOUNT, ASSEMBLY OVERIEW , Item 2.
- Listen to make sure connectors engage properly.
- Take care not to alter position of cutting rings on compressed air lines when inserting valves, as otherwise screw connection may leak.
Perform remaining installation operations in reverse order.
