Camshaft adjustment, servicing

Cylinder head, removing and installing:

See CYLINDER HEAD .

Valvetrain, servicing:

See 2.8L V6 30-VALVE .

1. - Double bearing cap
2. - 10 Nm
3. - Exhaust camshaft bearing cap
4. - Exhaust camshaft
5. - Cap
   • Always replace
6. - Intake camshaft bearing cap
7. - Intake camshaft
8. - Drive chain
   • Mark direction of travel (installation position) before removing
9. - Camshaft adjuster
   • Check valves for camshaft adjustment. See CAMSHAFT ADJUSTMENT VALVES, CHECKING .
10. - 10 Nm
11. - Valve for camshaft adjustment
    • only together with camshaft adjuster item 9, replacing

    Cylinder bank 1:

    • Valve -1- for camshaft adjustment -N205-*
    • Checking, see CAMSHAFT ADJUSTMENT VALVES, CHECKING

    Cylinder bank 2:

    • Valve -2- for camshaft adjustment -N208-*
    • Checking, see CAMSHAFT ADJUSTMENT VALVES, CHECKING
12. - Gasket
    • Rubber/metal seal
    • Always replace
13. - Gasket
    • Always replace
14. - Cylinder head

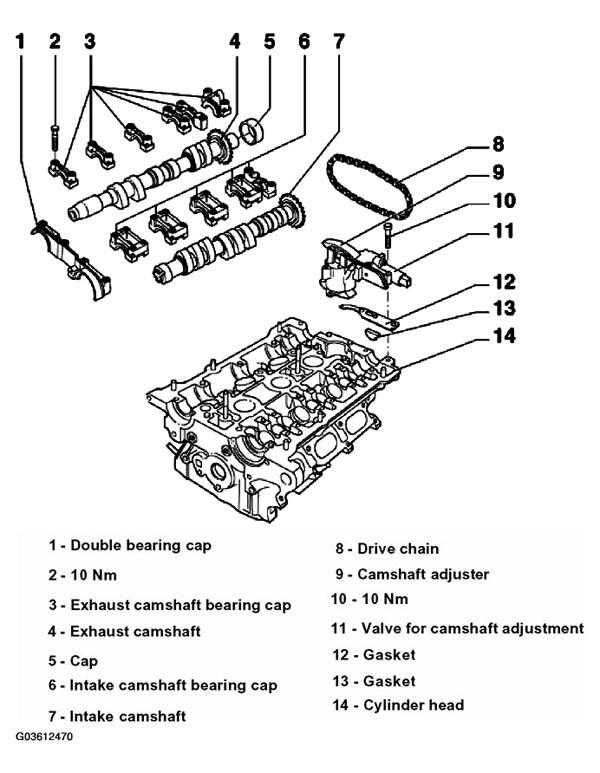

Fig 1: Exploded View Of Camshafts And Camshaft Adjustment Components
