Steering angle sensor -G85-, removing and installing: Notes

Remove the driver's side airbag unit.
See appropriate Air Bag article in RESTRAINTS.
Remove airbag unit and steering wheel.
See appropriate Air Bag article in RESTRAINTS.
Wheels set to straight-ahead position.
Driver airbag unit and steering wheel removed.
Pull steering column out and tilt downward as far as it will go.

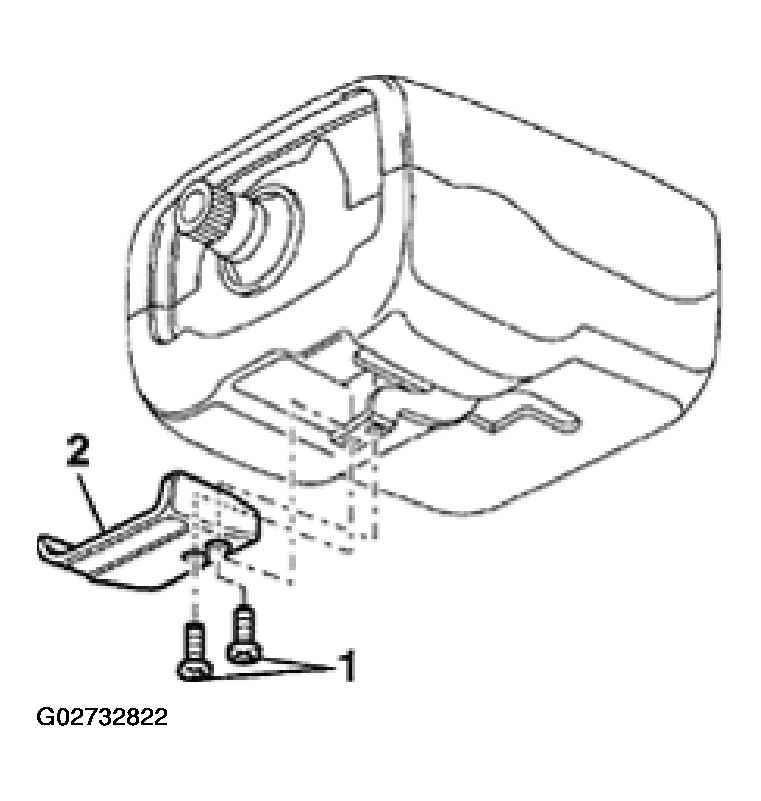

Remove bolt -1- (2x), tightening torque 2.8 Nm.
Remove grip -2-.

Fig 1: Removing Grip From Bottom Of Steering Column
Courtesy of AUDI OF AMERICA, INC.

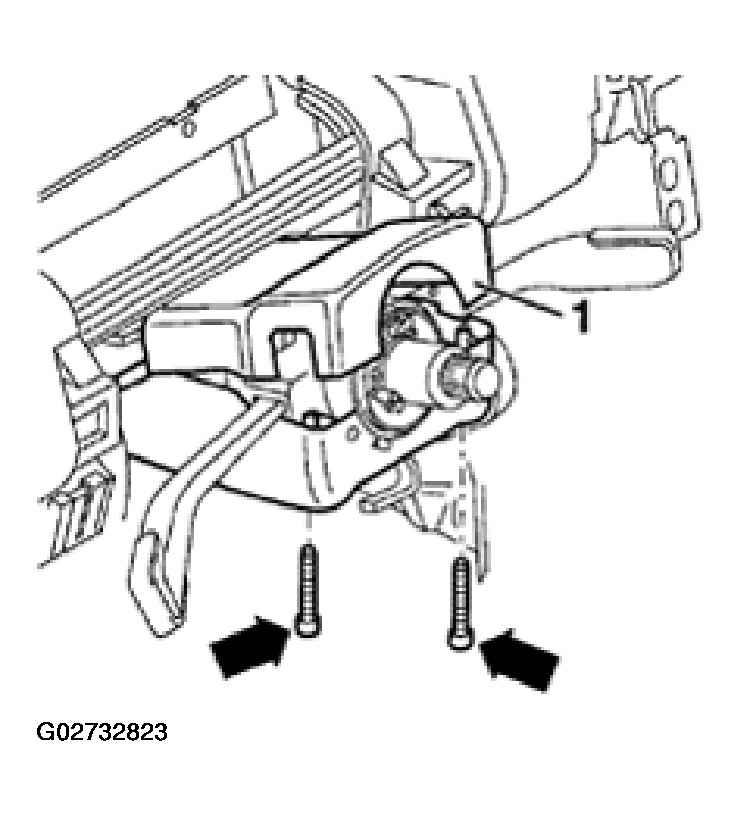

Remove two Phillips-head screws -arrows-. See Fig 2.
Tightening torque 0.6 Nm.
Remove upper trim panel from steering column switch -1-.
When installing, insert upper shell into hooks of lower shell, swivel downward and screw in place.

Fig 2: Removing Upper Trim Panel From Steering Column Switch
Courtesy of AUDI OF AMERICA, INC.

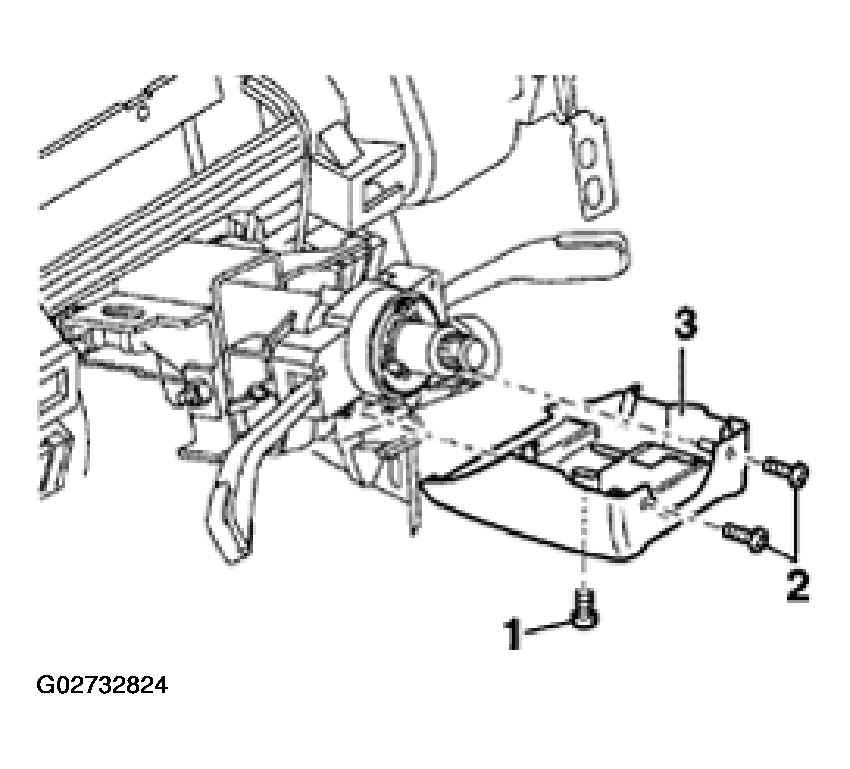

Remove screws -2- (2x). Tightening torque 0.6 Nm
Remove hex socket head bolt -1-.
Tightening torque 0.6 Nm.
Remove lower trim from steering column switch -3-.

Fig 3: Removing Lower Trim Panel From Steering Column Switch
Courtesy of AUDI OF AMERICA, INC.

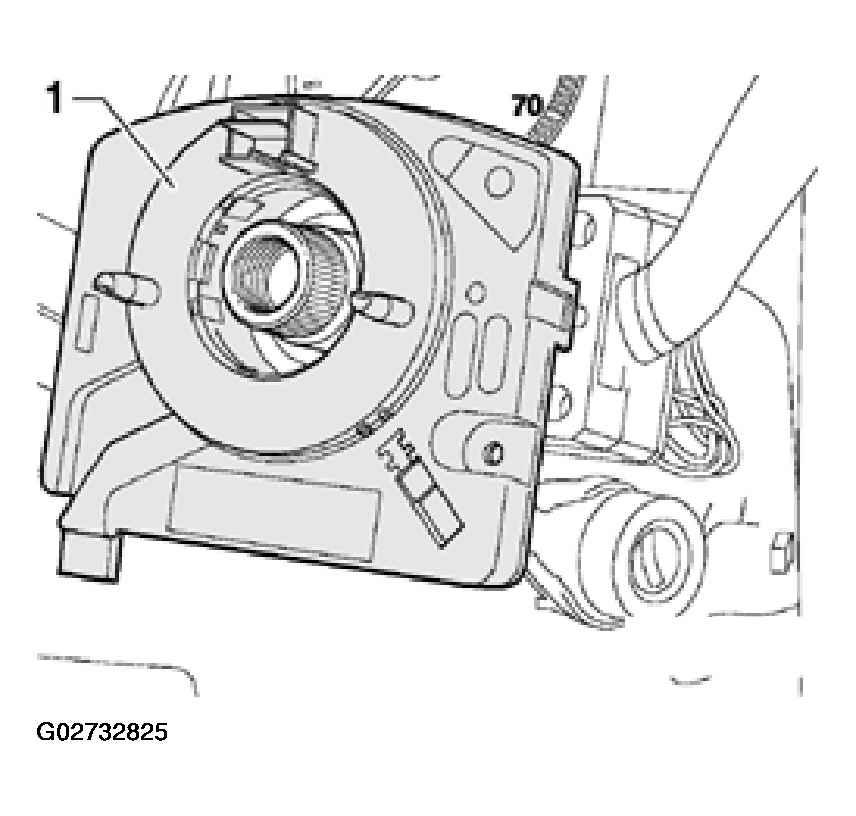

The steering angle sensor -G85- is installed in housing -1- together with coil spring.

Fig 4: Identifying Steering Angle Sensor Housing
Courtesy of AUDI OF AMERICA, INC.

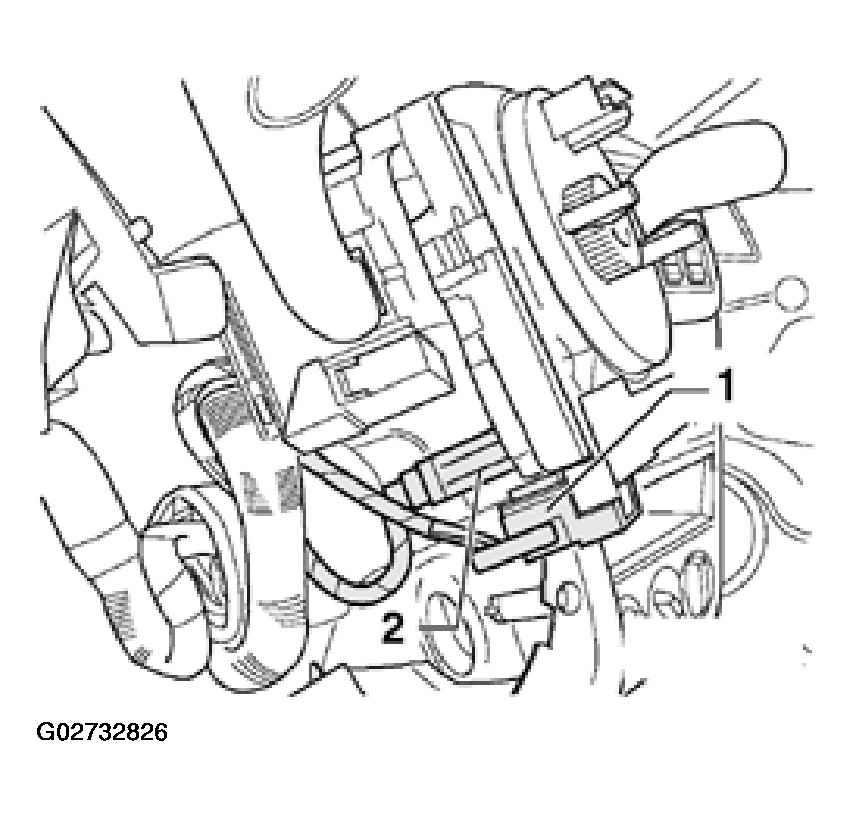

Remove connectors -1- and -2-.

Fig 5: Removing Connectors
Courtesy of AUDI OF AMERICA, INC.

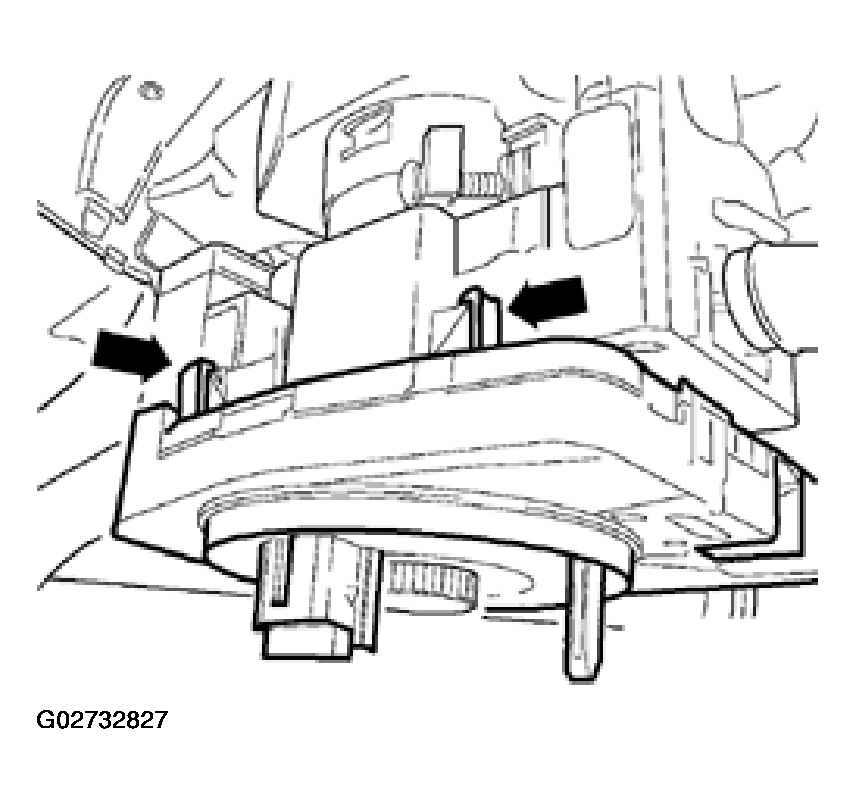

Carefully lift hooks -arrows- and disconnect steering angle sensor.

Fig 6: Lifting Hooks And Disconnecting Steering Angle Sensor
Courtesy of AUDI OF AMERICA, INC.
