Steering angle sensor -G85-, removing and installing: Installing

CAUTION: The steering angle sensor -G85- must be in center position before installing.

Mount steering angle sensor until tabs engage.
Remove transport protection.
A yellow dot must be visible in hole -arrow 1-.
The markings -arrows- must align.
Make sure that center position is adhered to.

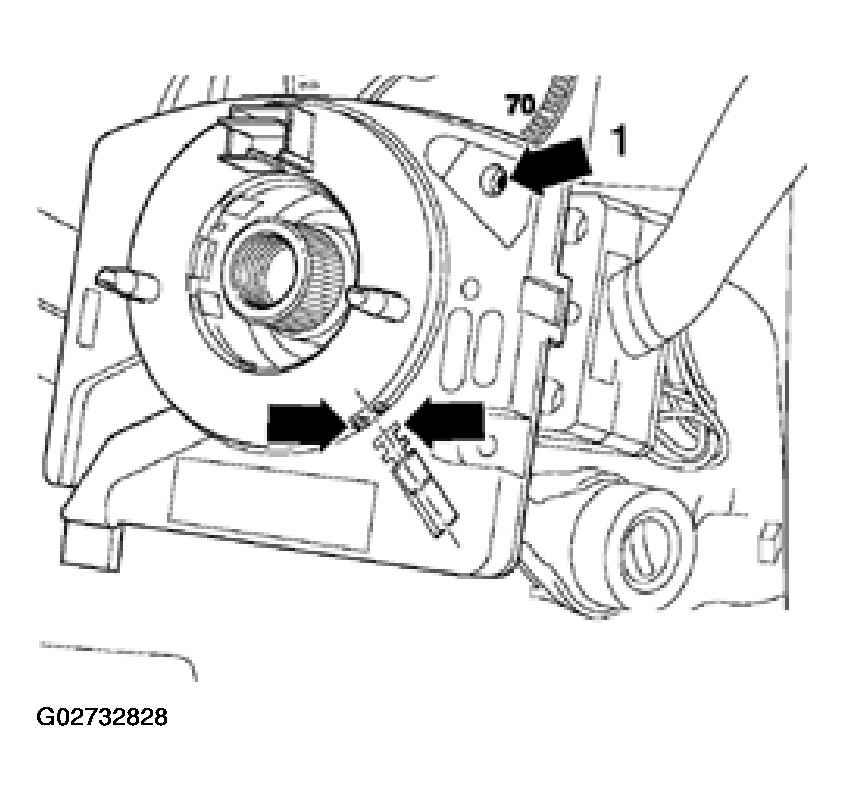

Fig 1: Identifying Steering Angle Sensor Alignment Markings
Courtesy of AUDI OF AMERICA, INC.

The remaining installation steps are carried out in the reverse sequence:
Install airbag unit and steering wheel
See appropriate Air Bag article in RESTRAINTS.
Carry out basic setting of steering angle sensor -G85-.
See BASIC SETTING (SCAN TOOL FUNCTION 04) .
