Brake light switch (rectangular housing), removing and installing

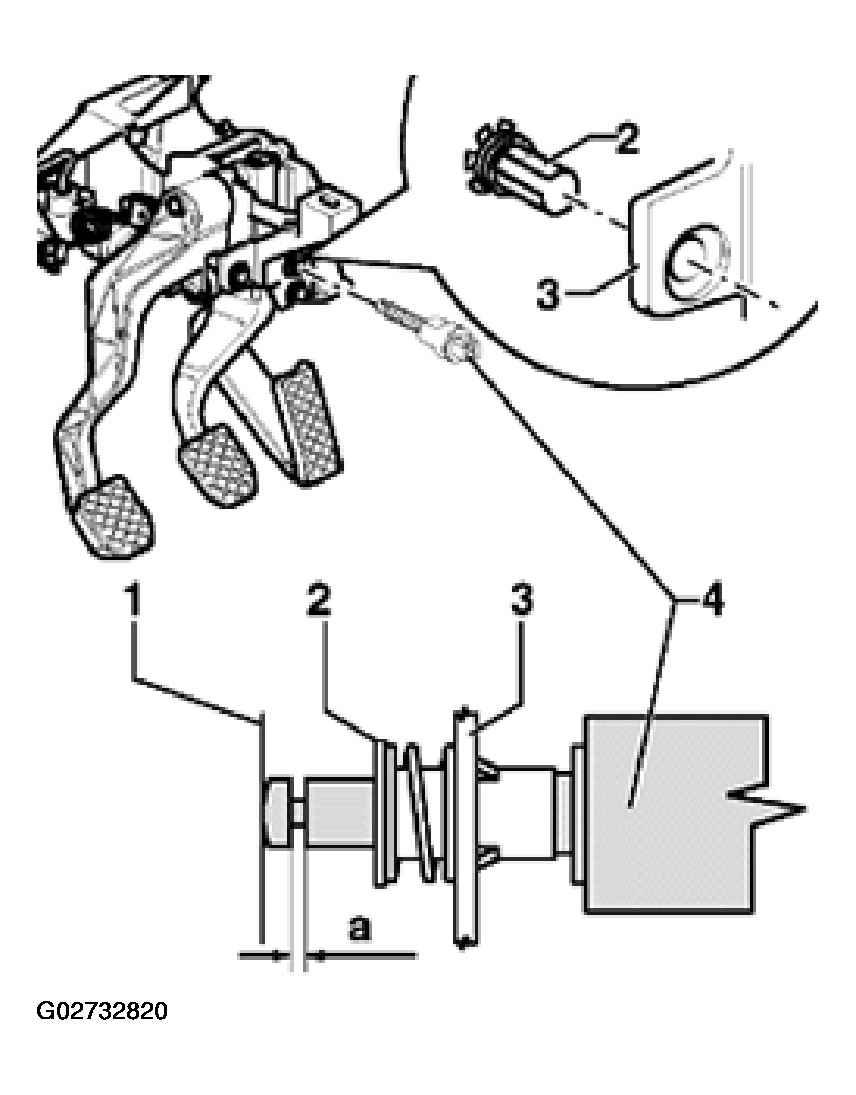

Brake light switch with spring clip mount.
- Brake pedal impact surface
- Spring clip
- Pedal bracket
- Brake light switch -F-
- Dimension: max. 1.2 mm to min. 0.5 mm
NOTE:
To ensure a secure fit, the switch may only be installed once.
- Press spring clip -2- into pedal bracket opposite direction of travel. See Fig 1.
- Guide switch -4- into installed spring clip -2- and press/thread it in until stop.
NOTE:
Do not pre-tension brake pedal!
- Check dimension -a- using feeler gauge and twist brake light switch to dimension -a- if necessary. See Fig 1.
