Multi-pin connection terminal assignments on Telephone/Telematic Control Module -J526-: Notes

  1. GPS antenna connection
  2. 42-pin connection
  3. Cellular antenna connection

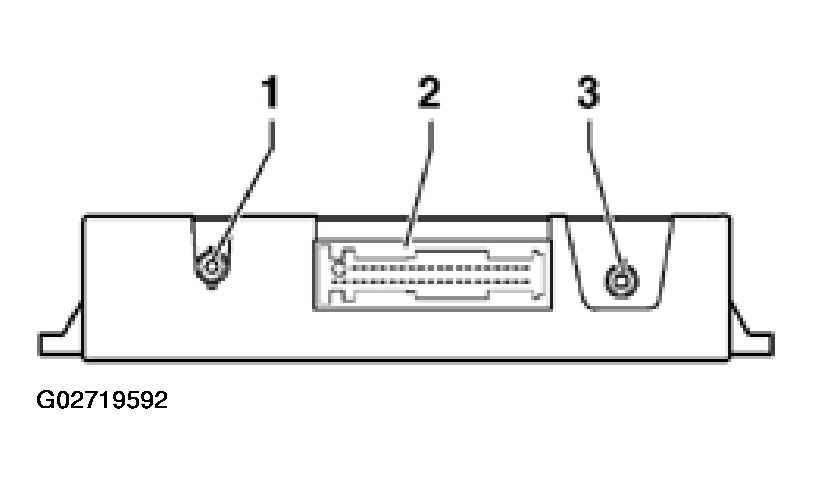

    4. Fig 1: Identifying Multi-Pin Connectors On Telephone/Telematic Control Module
    G02719592Courtesy of AUDI OF AMERICA, INC.
