Transportation blocks for front struts, removing

On some vehicles, transportation blocks are installed in the front struts. These vehicles can be recognized by the presence of a tag on the mirror (arrow).

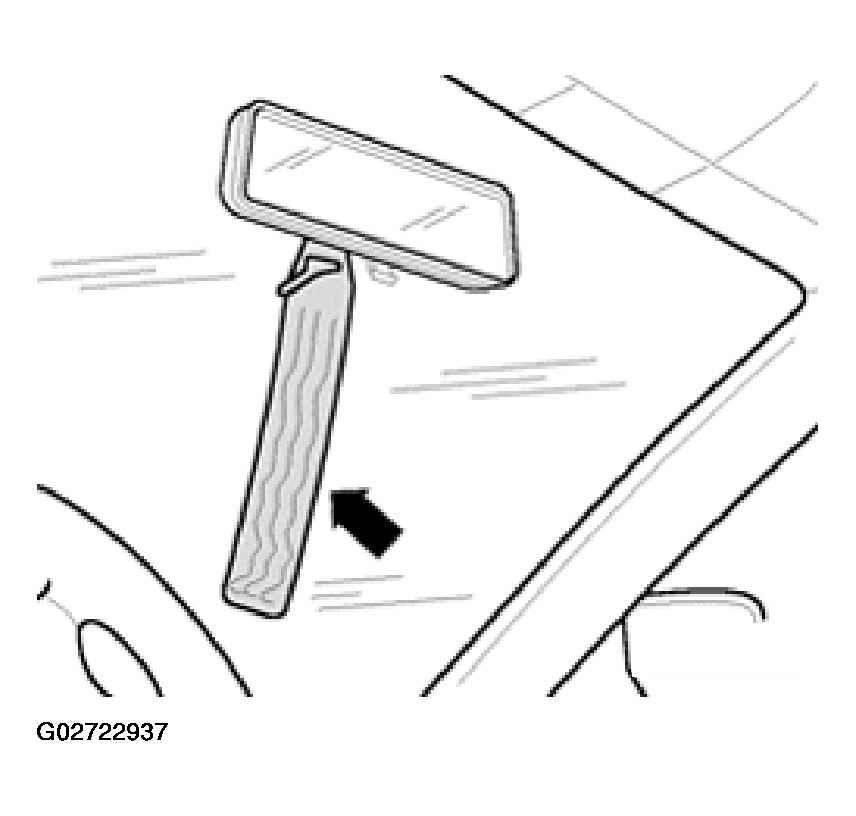

Fig 1: Locating Tag On Mirror

Courtesy of AUDI OF AMERICA, INC.

Release pressure on coil springs (e.g. by lifting vehicle using vehicle lift). Follow all safety precautions when lifting vehicle. See AVANT AND SEDAN, LIFTING .

NOTE: It is not necessary to remove the wheels.

Pull down buffer stop -2-.
Remove blocks -1- (two blocks in each strut).
Push buffer stop -2- upward and clip into spring retainer.

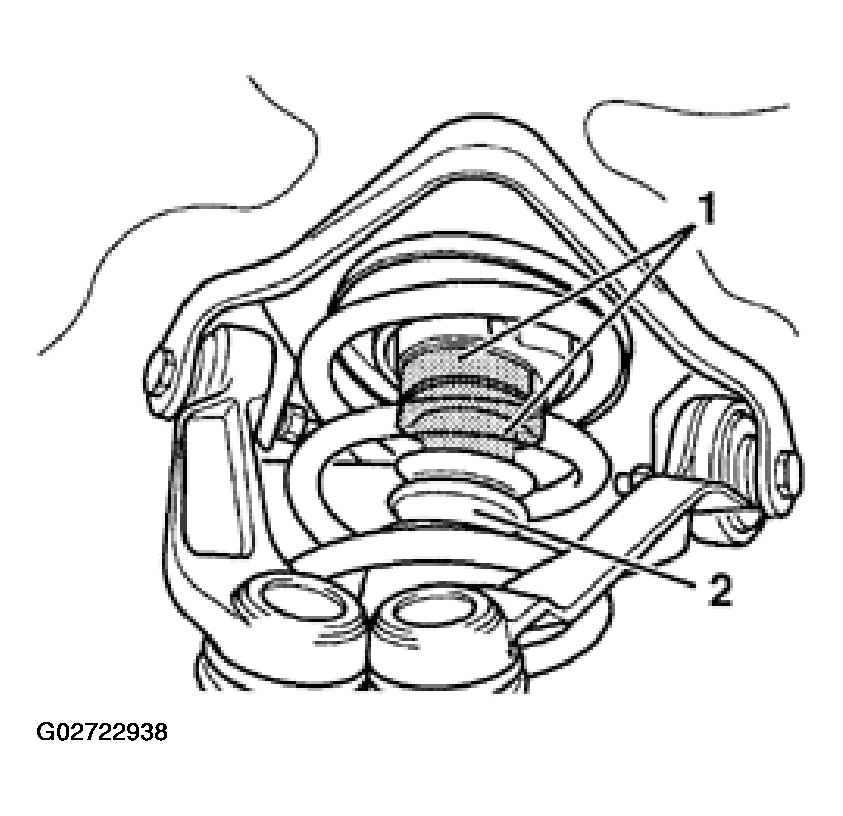

Fig 2: Removing Blocks & Pushing Buffer Stop Upward

Courtesy of AUDI OF AMERICA, INC.
