Entering Scan Tool Function Mode 08

Read and erase all DTCs. See SCAN TOOL FUNCTION MODE 02: RETRIEVING DTC MEMORY and SCAN TOOL FUNCTION MODE 05: ERASING DTC MEMORY. Press 08 while in select function screen and press "Q" key to confirm input. READ MEASURING VALVE BLOCK HELP INPUT DISPLAY GROUP NUMBER XX will be displayed. Select desired display group. See Fig 1 and Fig 2 .

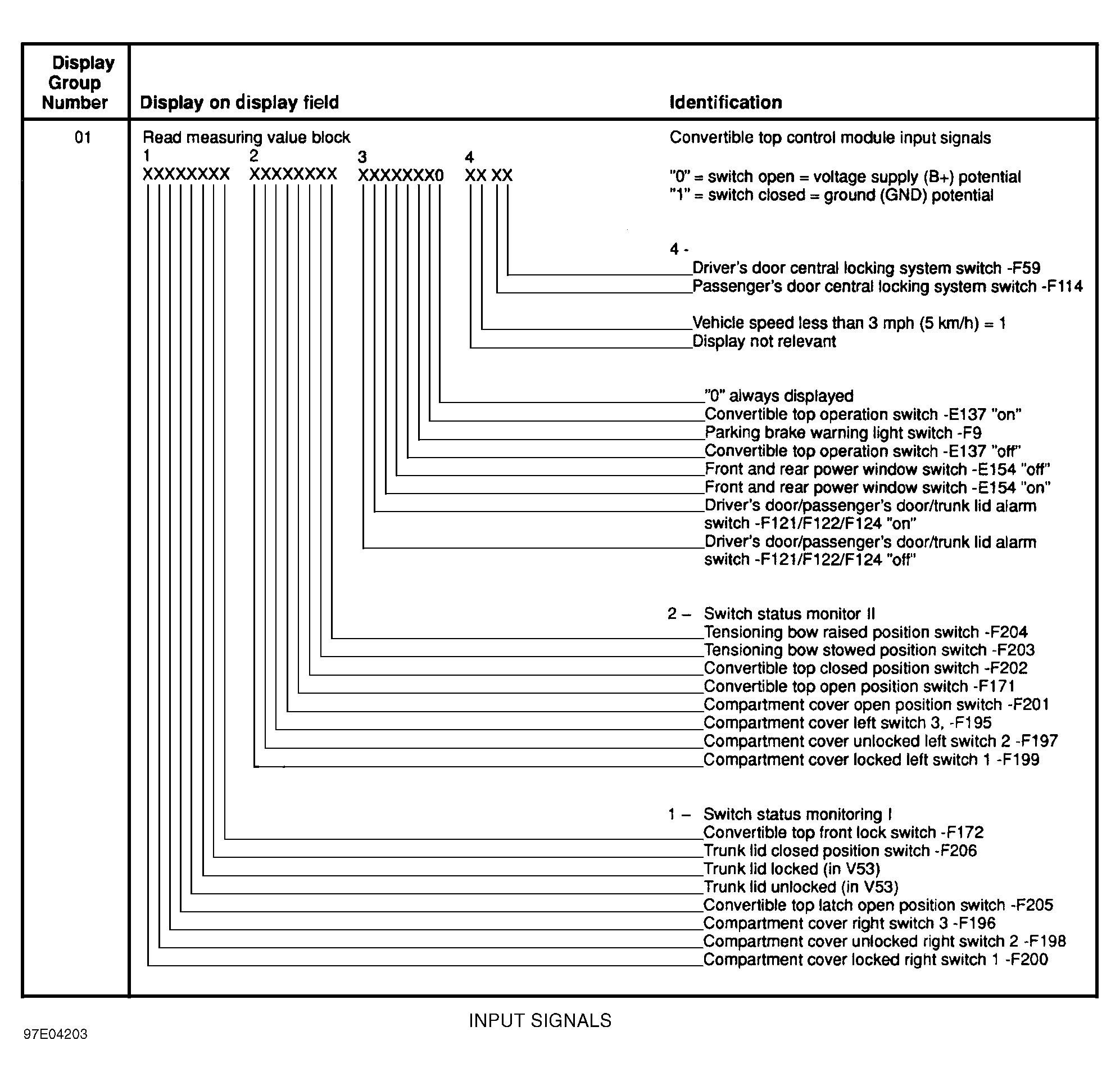

Fig 1: Identifying Display Group 01 Value Block Switch Positions

Courtesy of AUDI OF AMERICA, INC.

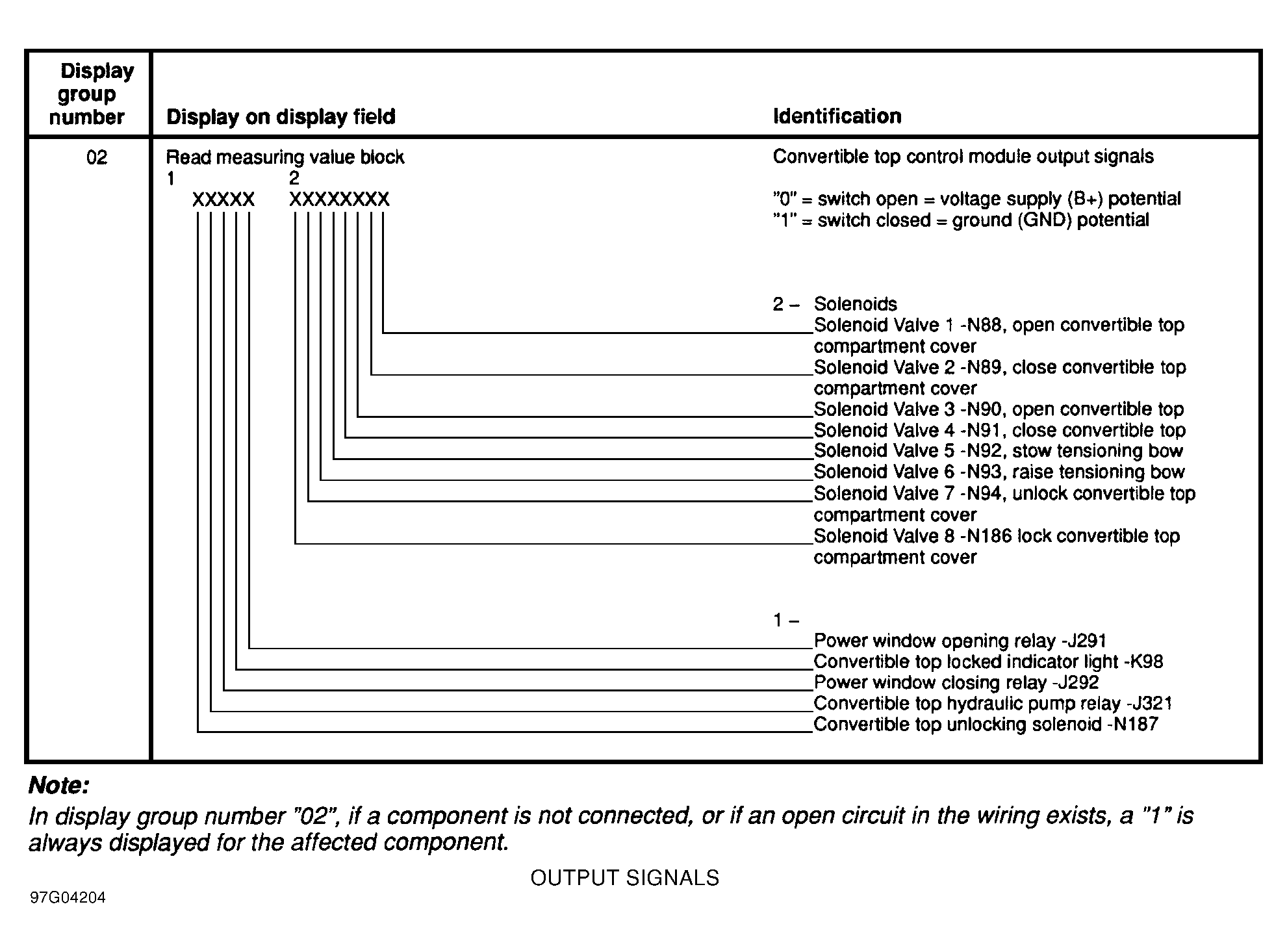

Fig 2: Identifying Display Group 02 Value Block Switch Positions

Courtesy of AUDI OF AMERICA, INC.

NOTE: To switch between display groups, press "C" key then enter desired display group and press "Q" key to confirm input. To return to select function screen, press "C" key then press right arrow key.

NOTE: If a complaint exists, start one test step before malfunction begins. Test steps 1 through 14 cover opening operation and test steps 15 through 25 cover closing operations.
