On Board Diagnostic (OBD): Central Locking System & Ultrasonic Interior Monitoring DTCS

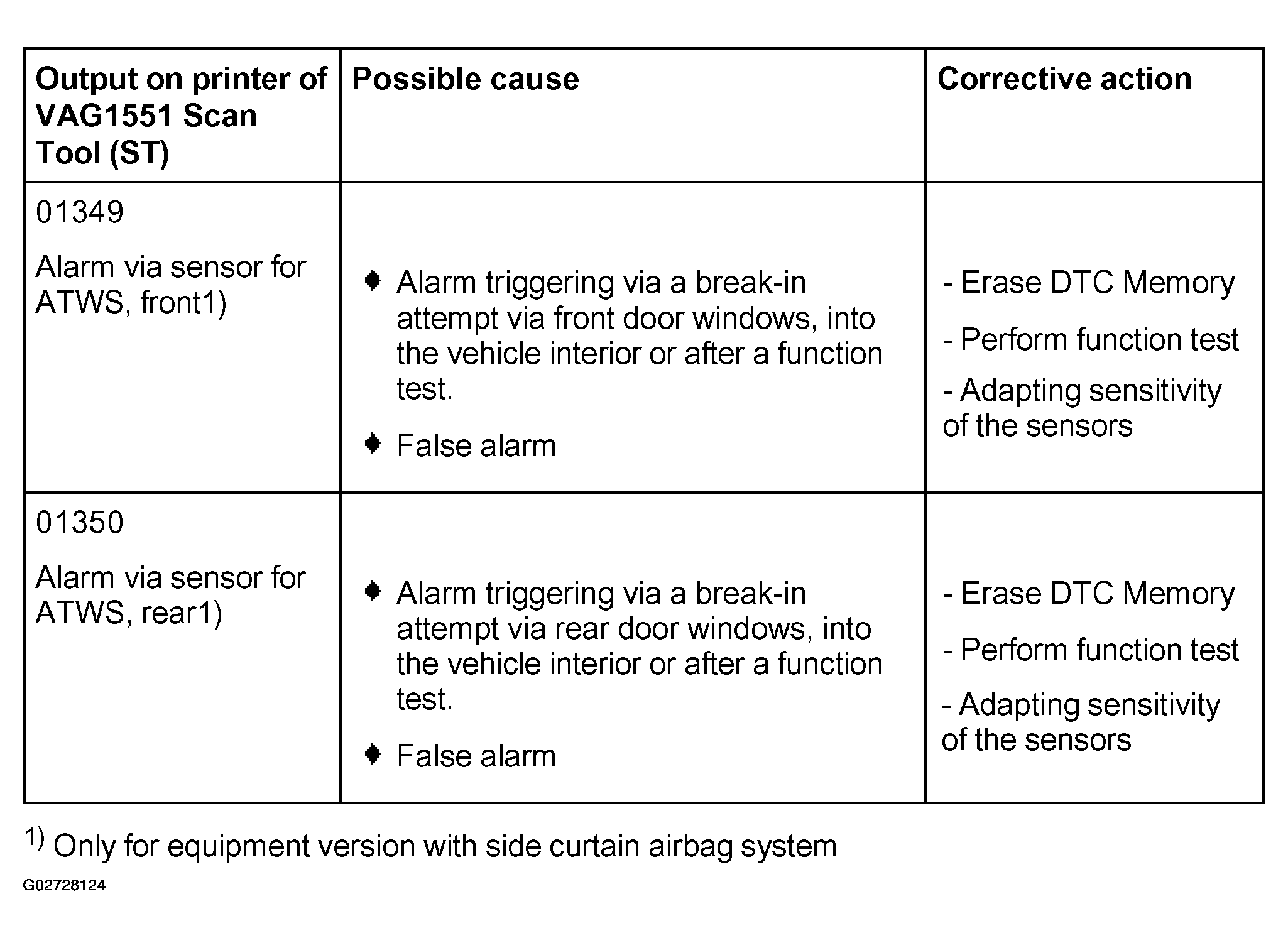

Fig 1: DTC Table, Interior Monitoring System (From 07.97 On) - DTC 01349 & 01350

Courtesy of AUDI OF AMERICA, INC.

1. Only for equipment version with side curtain airbag system

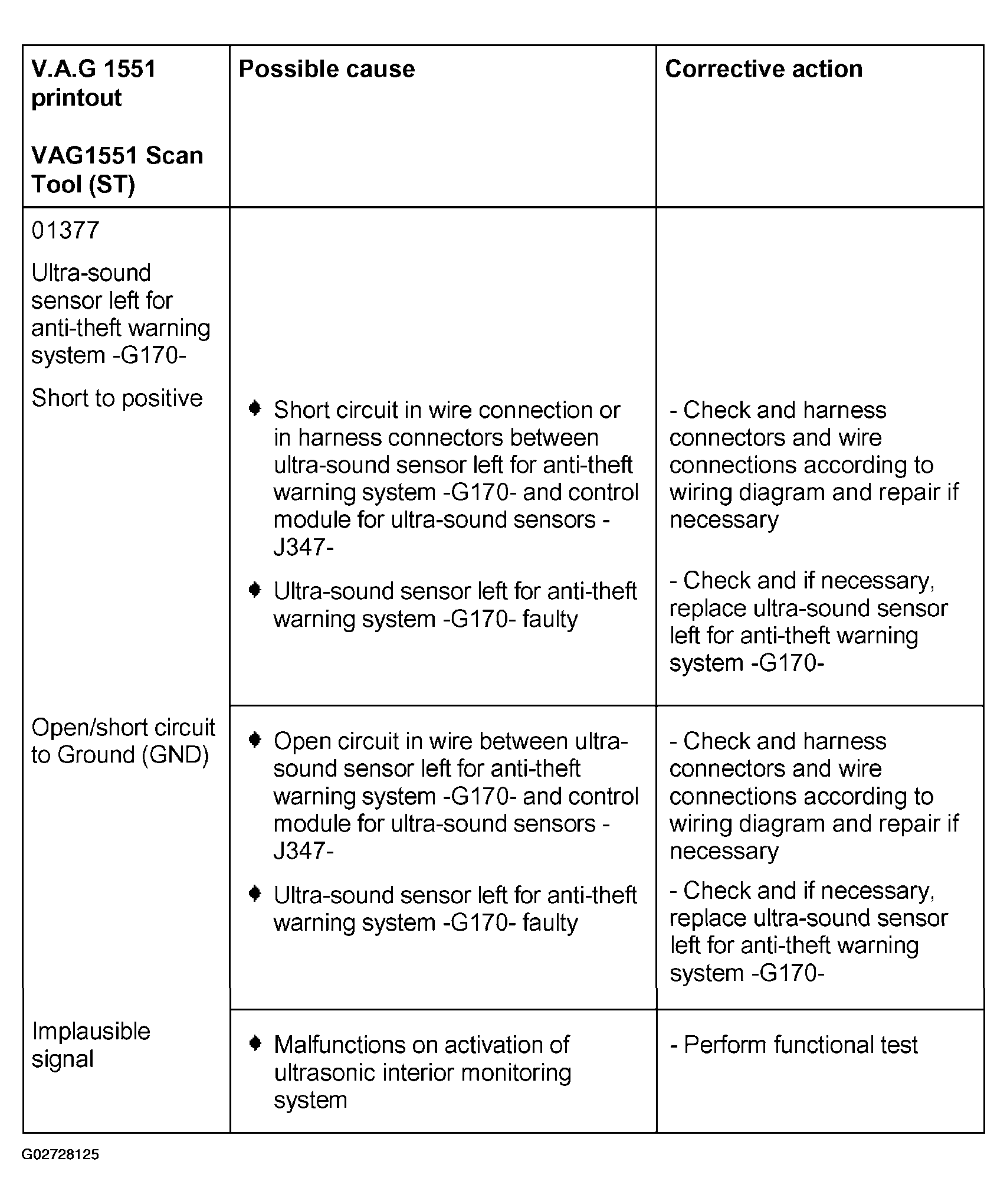

Fig 2: DTC Table, Interior Monitoring System (From 07.97 On) - DTC 01377

Courtesy of AUDI OF AMERICA, INC.

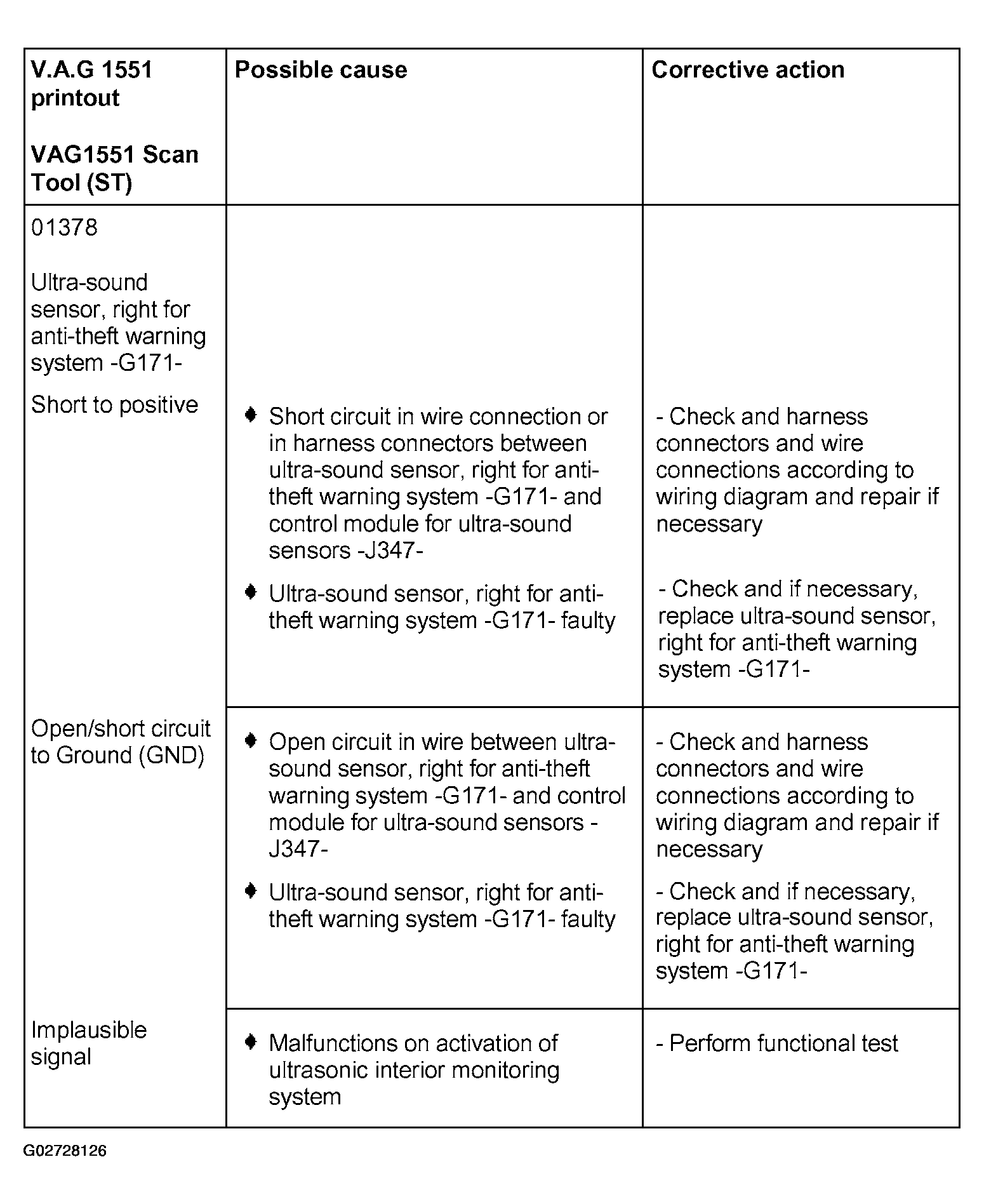

Fig 3: DTC Table, Interior Monitoring System (From 07.97 On) - DTC 01378

Courtesy of AUDI OF AMERICA, INC.

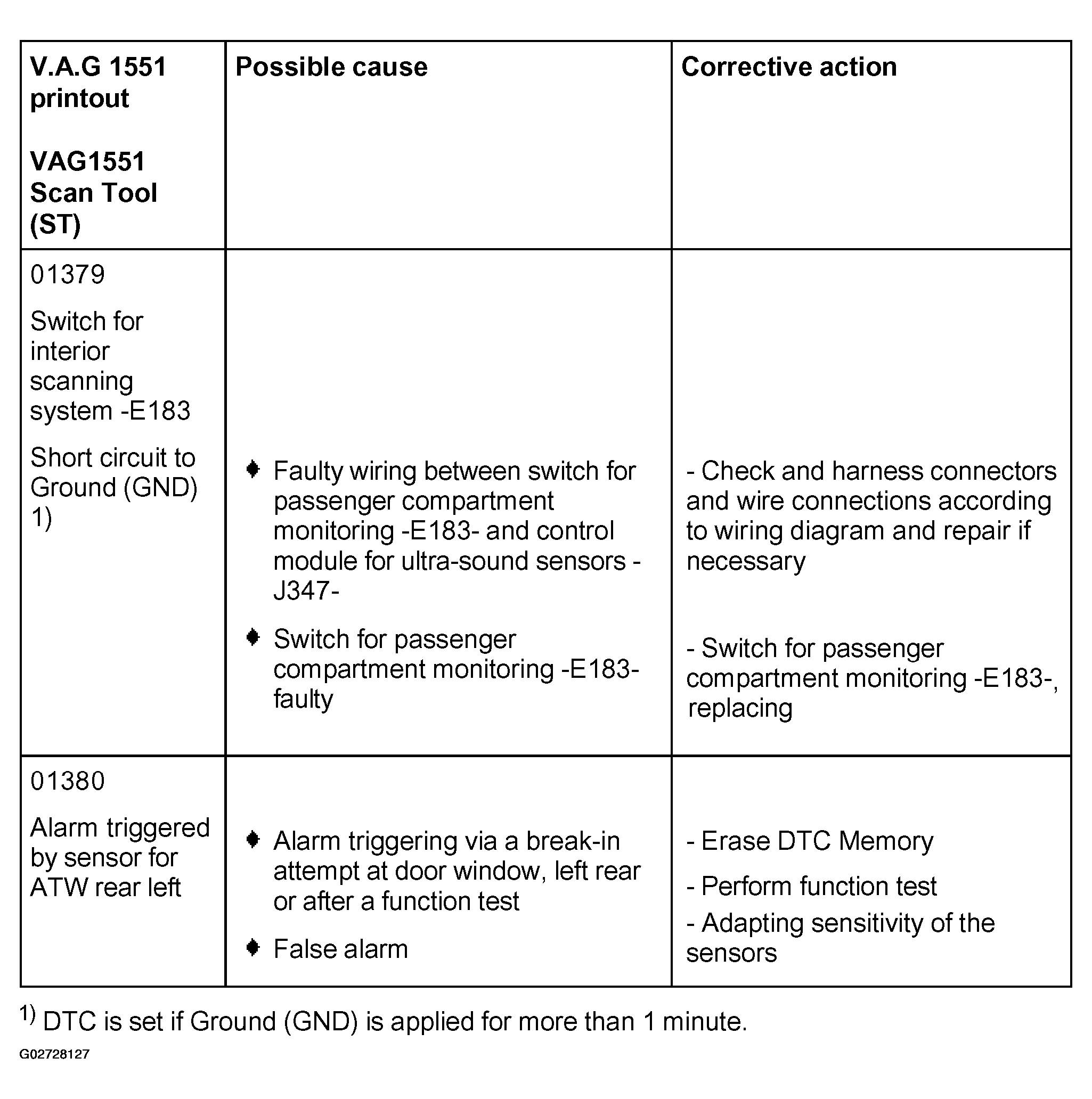

Fig 4: DTC Table, Interior Monitoring System (From 07.97 On) - DTC 01379 & 01380

Courtesy of AUDI OF AMERICA, INC.

1. DTC is set if Ground (GND) is applied for more than 1 minute.

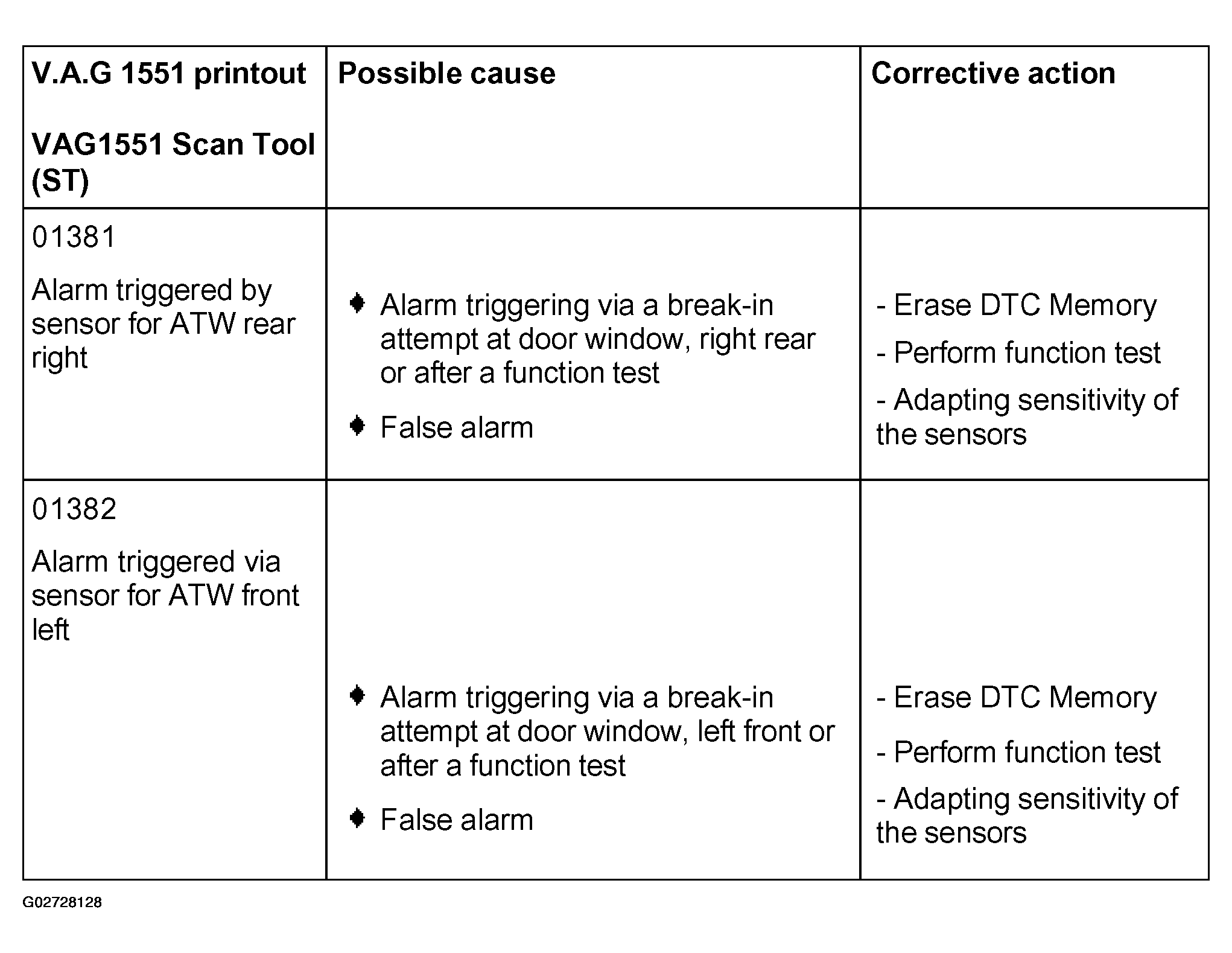

Fig 5: DTC Table, Interior Monitoring System (From 07.97 On) - DTC 01381 & 01382

Courtesy of AUDI OF AMERICA, INC.

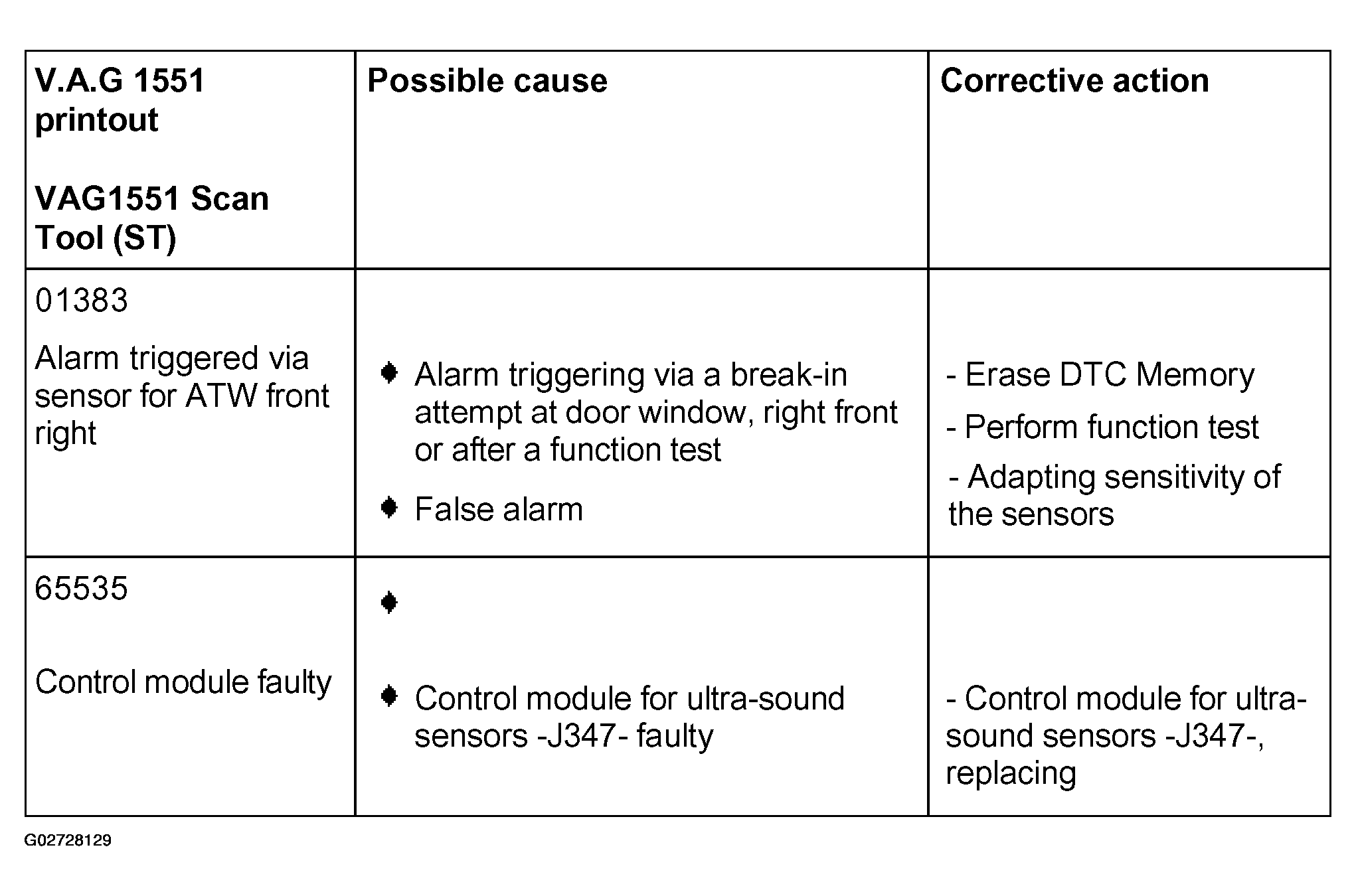

Fig 6: DTC Table, Interior Monitoring System (From 07.97 On) - DTC 01383 & 65535

Courtesy of AUDI OF AMERICA, INC.
