Windshield washer system, component overview

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Audi S8, 2003 Audi A8, 2002 Audi S8, 2002 Audi A8, and 2001 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The following list refers to Fig 1 .
  1. Headlight washer system pump
  2. Pump for windshield washer system
  3. Wiper fluid reservoir
  4. Hose to spray jets for headlight washer system in bumper
  5. Seal
  6. Seal
  7. Hose clamp
  8. Hose to spray jets for windshield washer system
  9. Grommet
  10. Mounting bolts

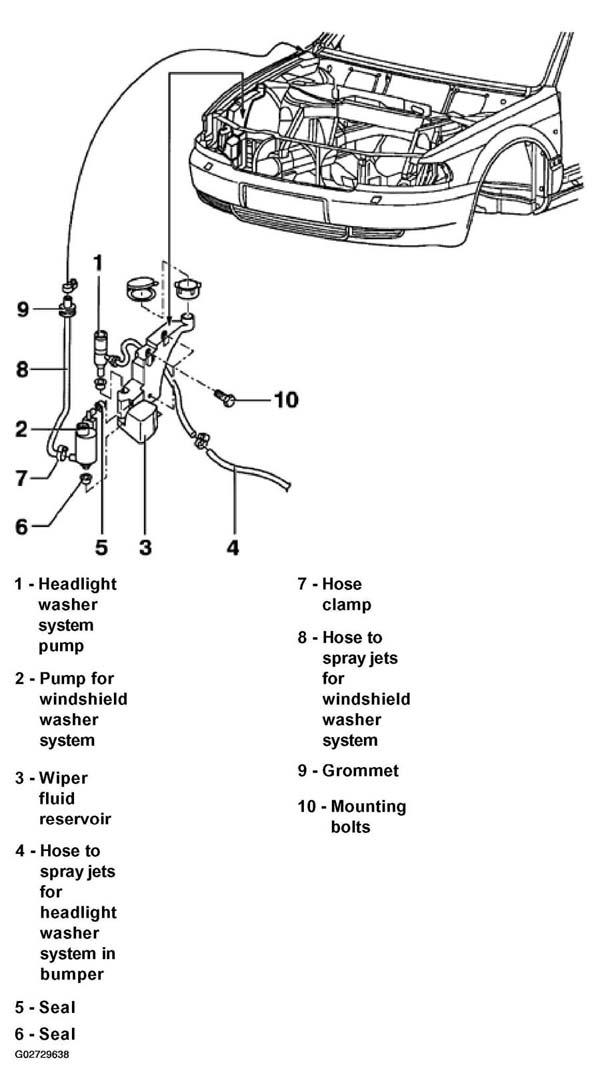

    11. Fig 1: Identifying Windshield Washer System Components
    G02729638Courtesy of AUDI OF AMERICA, INC.
