Sub-System Wiring Diagrams - Fuse And Relay Control Box: Wiring Diagram

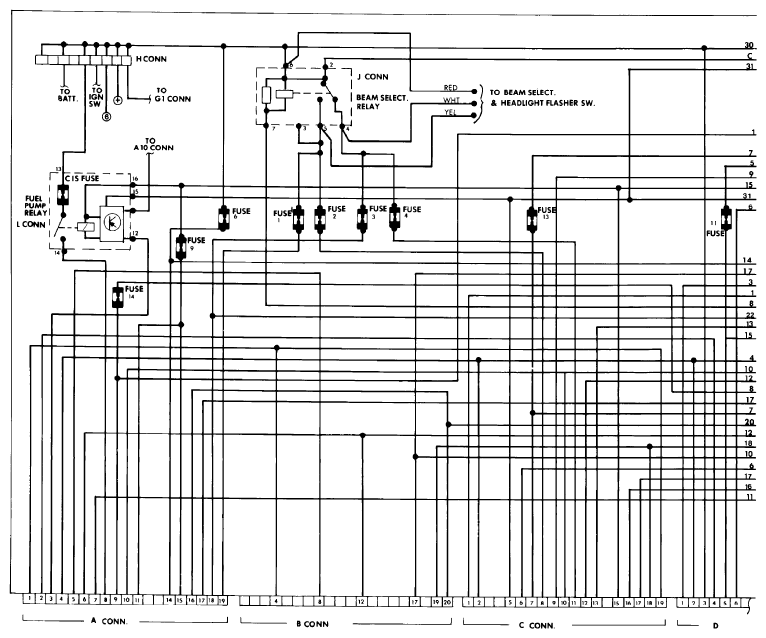

Fig 1: Fuse and Relay Control Box Audi Fox, Volkswagen Dasher, Rabbit and Scirocco
G09303370Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

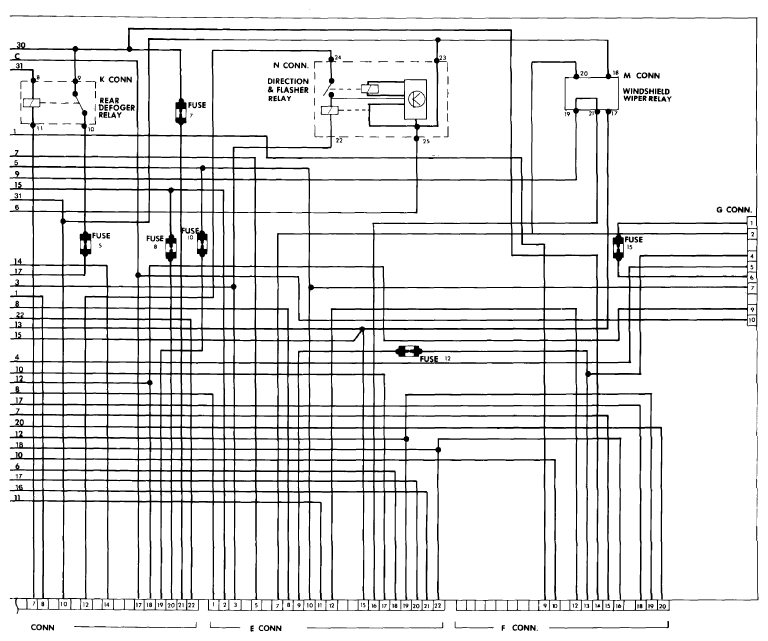

Fig 2: Fuse and Relay Control Box Audi Fox, Volkswagen Dasher, Rabbit and Scirocco
G09303371Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
