Removal And Installation: Removal

NOTE:

If this Electronic Control Unit (ECU) is being replaced with a new unit, use a diagnostic scan tool to perform the Flash Programming Procedure (if available). This will confirm that the module is updated to the latest applicable software level.

  1. Disconnect and isolate the negative battery cable(s). Refer to STANDARD PROCEDURE .
  2. Remove the radio display screen. Refer to DISPLAY, RADIO, REMOVAL AND INSTALLATION .

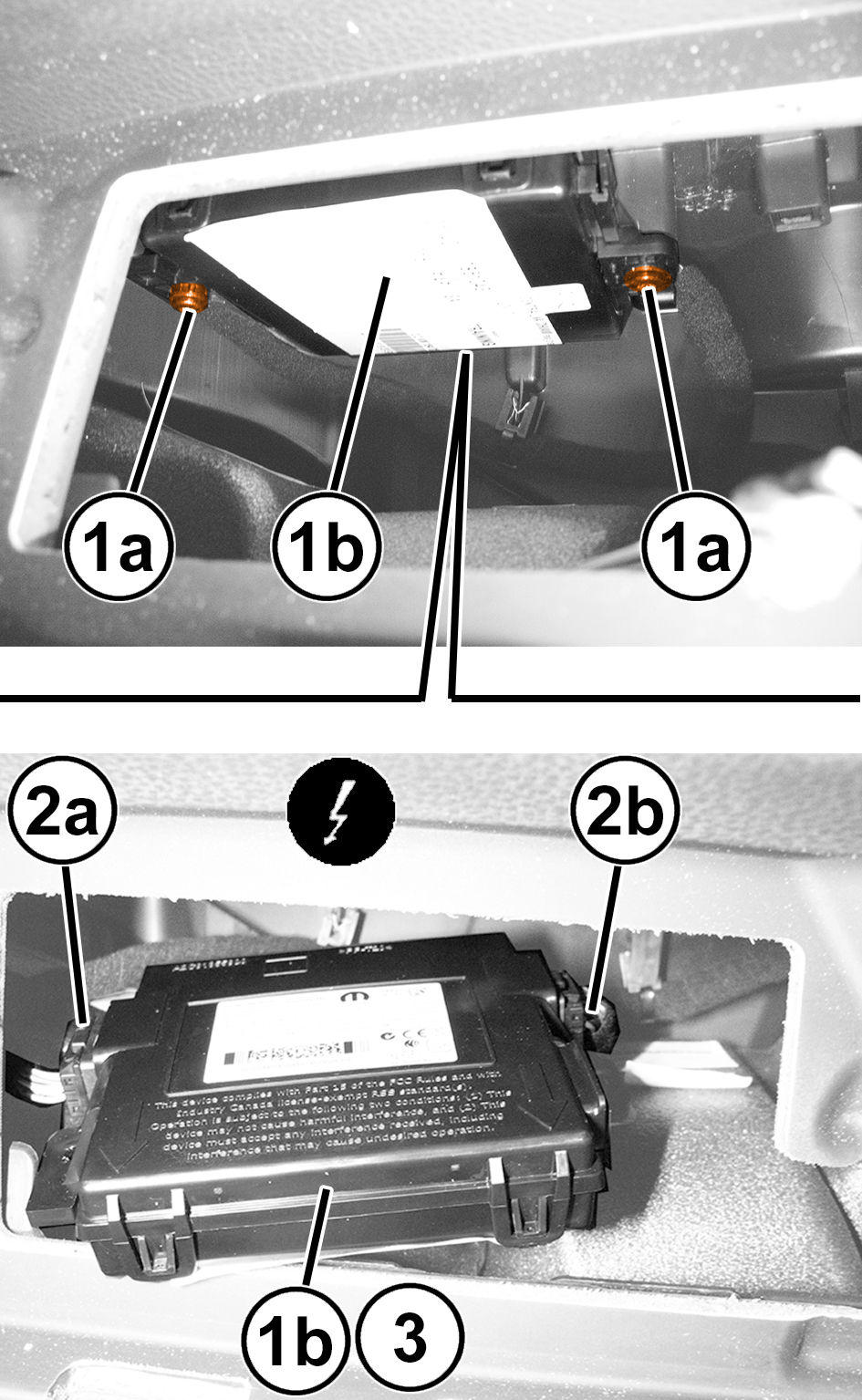

    GC0194830Courtesy of CHRYSLER GROUP, LLC
  3. Remove the two Radio Frequency Hub Module (RFHM) (1b) fasteners (1a).
  4. Disconnect the wire harness connectors (2a, 2b) from the RFHM.
  5. Remove the RFHM from the vehicle.
