Removal And Installation: Installation

Inspect the PAM and the wiring harness integrity.

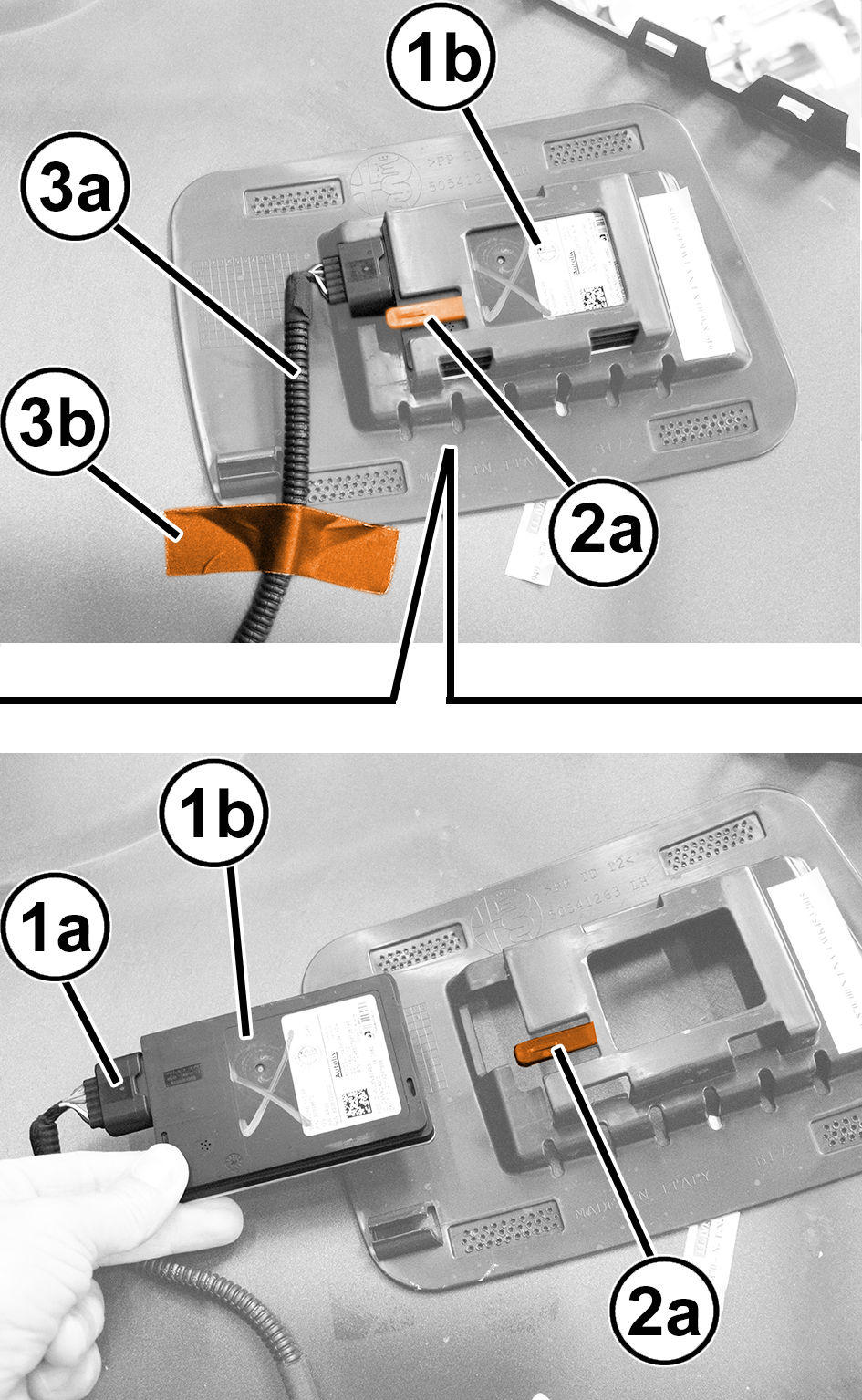

Courtesy of CHRYSLER GROUP, LLC
Connect the wiring harness electrical connector (1a) to the PAM (1b).
Install the PAM in place and engage the retainer (2a).
Secure the wiring harness (3a) using the wiring harness retainer (3b).
Install the rear fascia. Refer to FASCIA, REAR, REMOVAL AND INSTALLATION or FASCIA, REAR, LOWER, REMOVAL AND INSTALLATION .
Connect the negative battery cable(s). Refer to STANDARD PROCEDURE .
NOTE:
If this Electronic Control Unit (ECU) is being replaced with a new unit, use a diagnostic scan tool to perform the Flash Programming Procedure (if available). This will confirm that the module is updated to the latest applicable software level.

NOTE:

If this Electronic Control Unit (ECU) is being replaced with a new unit, a diagnostic scan tool MUST be used to determine if alignment of the PROXI configuration data into the new ECU is needed. If PROXI alignment is needed, follow the routine outlined in the diagnostic scan tool for PROXI Configuration Alignment under the Body Control Module (BCM) Miscellaneous Functions menu.
