Description And Operation: Operation
NOTE:
The Security Gateway Module (SGW) is the Controller Area Network (CAN) gateway between the radio, telematics modules, Data Link Connector (DLC) and the other vehicle CAN modules. An SGW failure could prevent the radio from powering up, telematics module from communicating or a scan tool from communicating with the vehicle. For additional information on the SGW. Refer to MODULE, SECURITY GATEWAY (SGW), DESCRIPTION AND OPERATION .

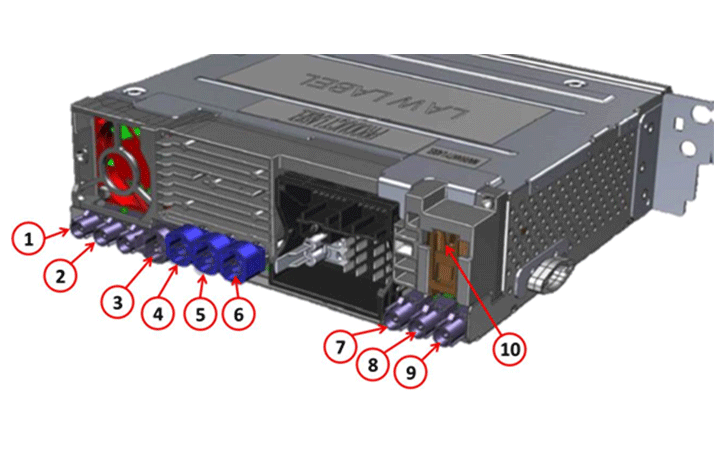

Radio/Entertainment Telematics Module Connections
| 1 | Global Positioning Satellite (GPS) |
| 2 | Bluetooth® |
| 3 | Display |
| 4 | USB1 |
| 5 | USB2 |
| 6 | USB3 |
| 7 | FM2 |
| 8 | AM/FM1 |
| 9 | Digital Audio Broadcasting (DAB) |
| 10 | Satellite Digital Audio Radio Service (SDARS) |

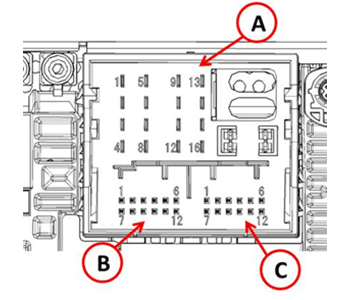

| RADIO/ENTERTAINMENT TELEMATICS MODULE (ETM) RECEPTACLE | |
|---|---|
| Pin | Function |
| A1 | Rear RH + |
| A2 | Front RH + |
| A3 | Front LH + |
| A4 | Rear LH + |
| A5 | Rear RH - |
| A6 | Front RH - |
| A7 | Front RH - |
| A8 | Rear LH - |
| A9 | CAN-BH IN L |
| A10 | N.C. |
| A11 | CAN-BH IN H |
| A12 | Main ground |
| A13 | N.C. |
| A14 | N.C. |
| A15 | Battery (+30) |
| A16 | N.C. |
| B1 | Microphone 1 + |
| B2 | N.C. |
| B3 | N.C. |
| B4 | N.C. |
| B5 | Video_1 / Rear view camera signal + (CBVS1_IN+) |
| B6 | Microphone 1 - |
| B7 | Video_1 / Rear view camera signal shield (CBVS1_IN_Shield) |
| B8 | Video_1 / Rear view camera signal - (CBVS1_IN-) |
| B9 | N.C. |
| B10 | N.C. |
| B11 | N.C. |
| B12 | N.C. |
| C1 | N.C. |
| C2 | Audio_1 / Aux_ In_RH |
| C3 | N.C. |
| C4 | N.C. |
| C5 | N.C. |
| C6 | N.C. |
| C7 | Audio_1 / Aux_In_dx |
| C8 | Audio_1 / Aux_In_reference |
| C9 | N.C. |
| C10 | N.C. |
| C11 | Audio_1 / Aux_In_shielding |
| C12 | N.C. |
| USB 1 | |
| 1 | USB1 ground |
| 2 | USB1 data (-) |
| 3 | USB1 power supply |
| 4 | USB1 data (+) |
| 5 | N.C. |
| USB 2 | |
| 1 | USB2 ground |
| 2 | USB2 data (-) |
| 3 | USB2 power supply |
| 4 | USB2 data (+) |
| 5 | N.C. |
| USB 3 | |
| 1 | USB3 ground |
| 2 | USB3 data (-) |
| 3 | USB3 power supply |
| 4 | USB3 data (+) |
| 5 | N.C. |
| FAKRA connectors | |
| 8 | AM/FM1 main antenna input + shield |
| 7 | FM2 antenna input + shield |
| 1 | GPS antenna input + shield |
| 10 | SDARS antenna input + shield |
| 9 | DAB antenna input + shield |
| 2 | Bluetooth® antenna input + shield |
